Battery

Component ID: 24
Component : BATTERY

Connector:
Name : BATTERY-NEGATIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 GROUND Z0 4BK

Component Location - 10

Fig. 10:

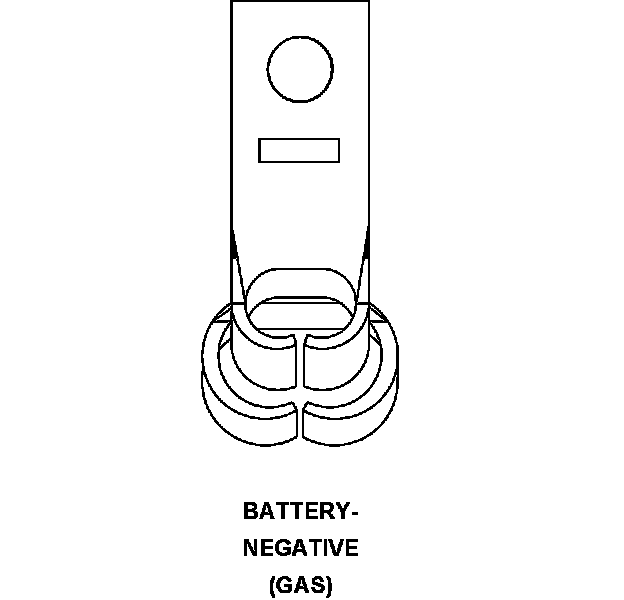

Connector:
Name : BATTERY-NEGATIVE
Color :
# of pins : 1
Qualifier : (GAS)




Pin Description Circuit
1 GROUND Z0 4BK

Component Location - 10

Fig. 10:

Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1




Pin Description Circuit
1 B(+) A0 4RD
Pin Description Circuit
1 B(+) A0 4RD

Component Location - 10

Fig. 10:

Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 B(+) A29 16DB
Pin Description Circuit
1 B(+) A283 16DB
Pin Description Circuit
1 B(+) A284 16DB

Component Location - 10

Fig. 10:
