Removal

REMOVAL
1. Remove fascia. Refer to Front Bumper.

2. Remove headlamp assembly.

3. Remove inner splash shield. Refer to Front Fender Liner.

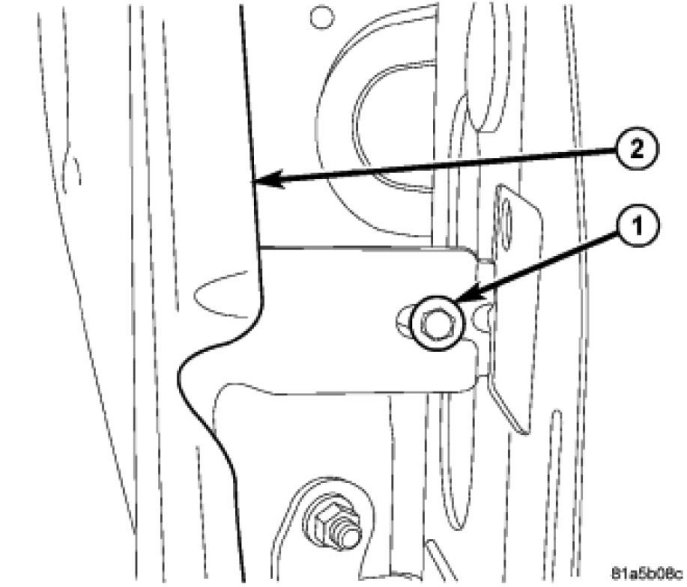

4. Remove fender (2) dogleg to body fastener (1) .

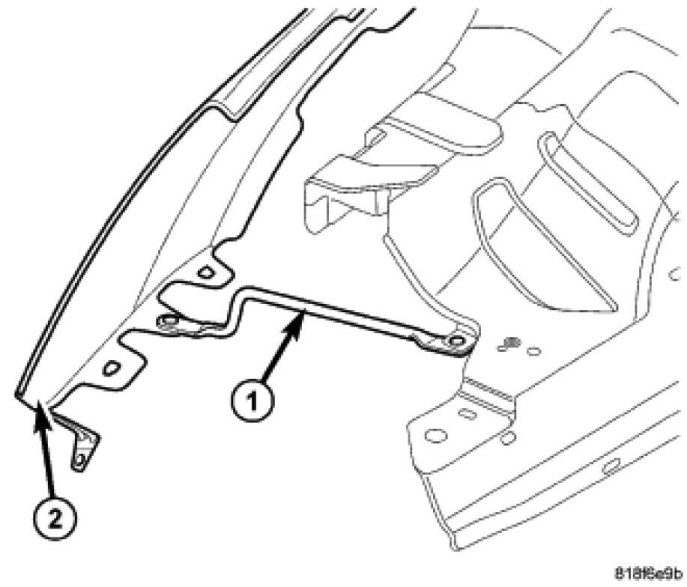

5. Remove fender brace (1).

6. Remove fender fastener to lower rocker panel.





7. Remove fasteners attaching fender to upper rail.

8. Remove fender from vehicle.
