Brakes and Traction Control: Testing and Inspection






BASE BRAKE SYSTEM DIAGNOSIS CHARTS

NOTE: There are three diagnosis charts following that cover the RED BRAKE WARNING INDICATOR, BRAKE NOISE and OTHER BRAKE CONDITIONS.

RED BRAKE WARNING INDICATOR

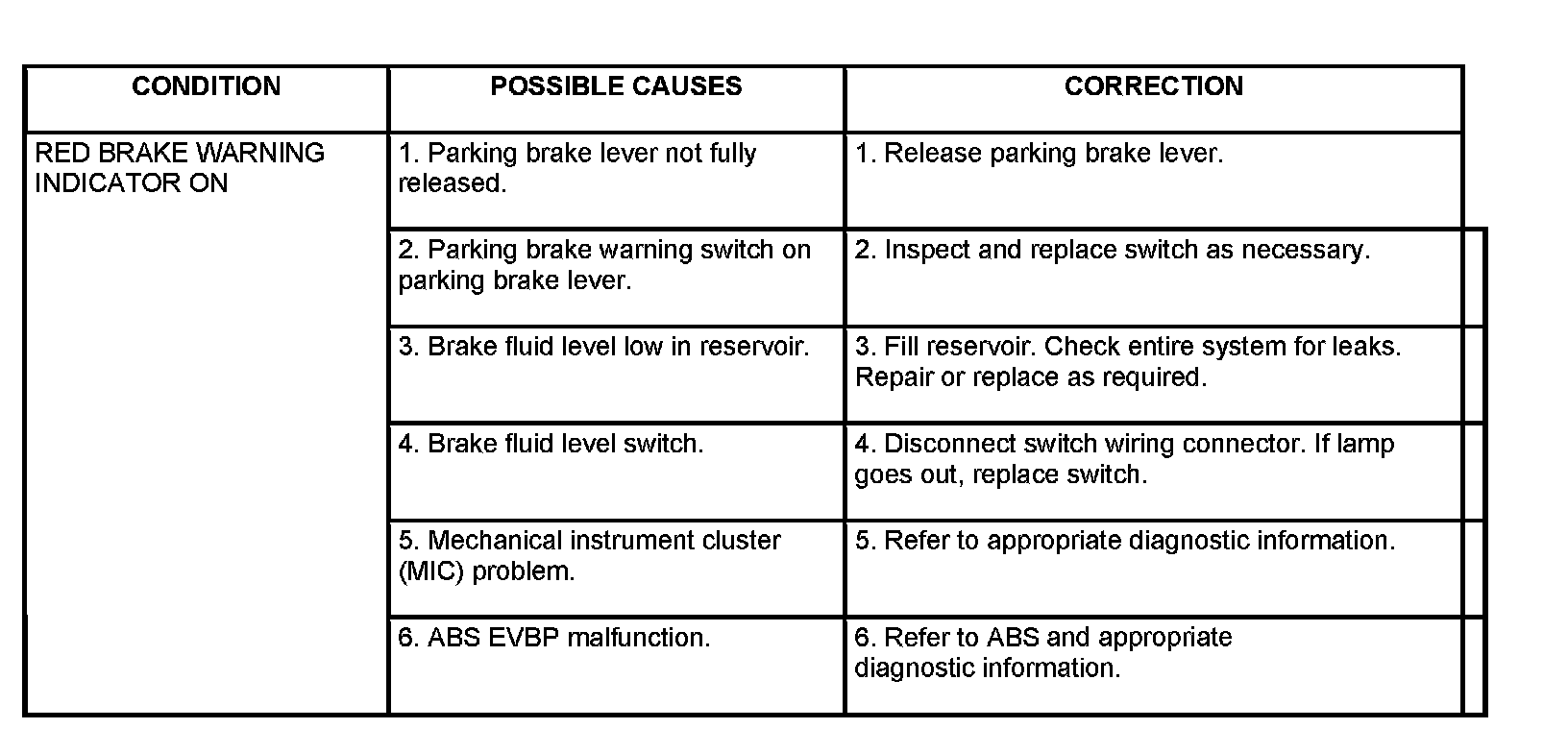

RED BRAKE WARNING INDICATOR:






BRAKE NOISE

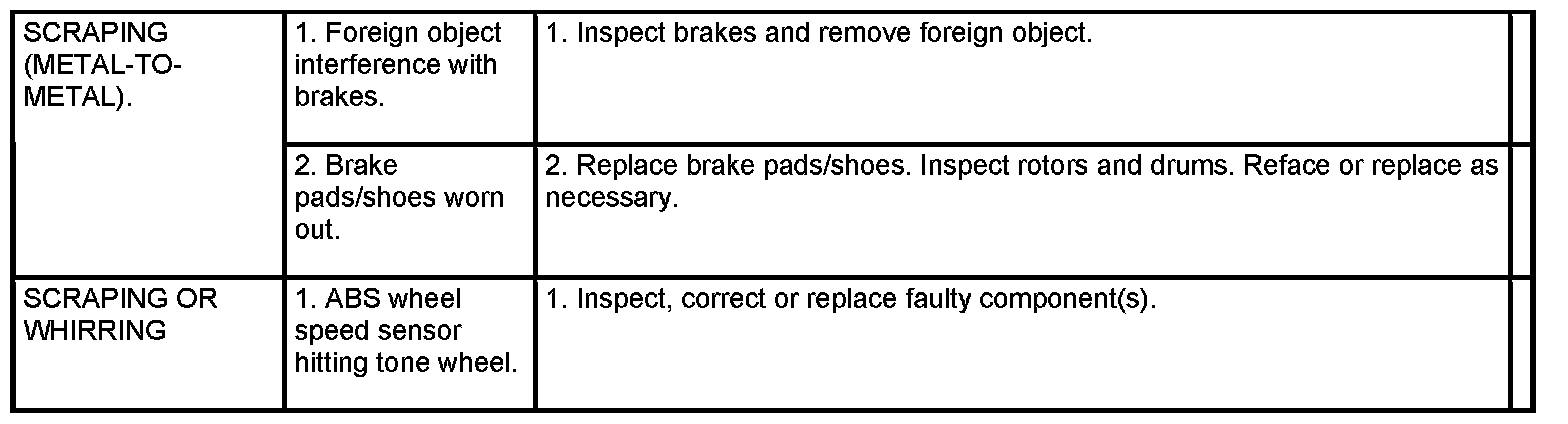

Brake Noise (Part 1):

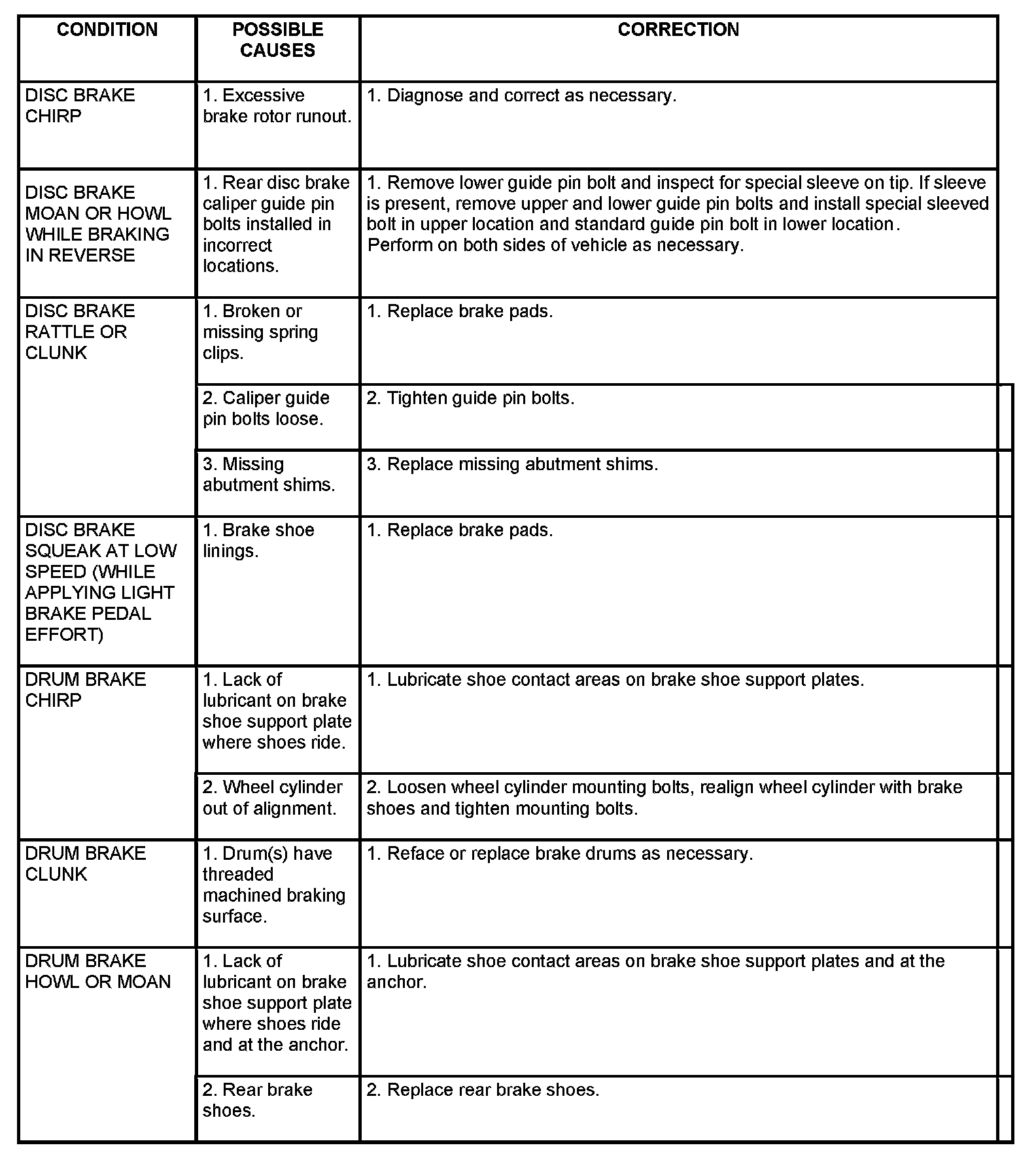

Brake Noise (Part 12):






OTHER BRAKE CONDITIONS

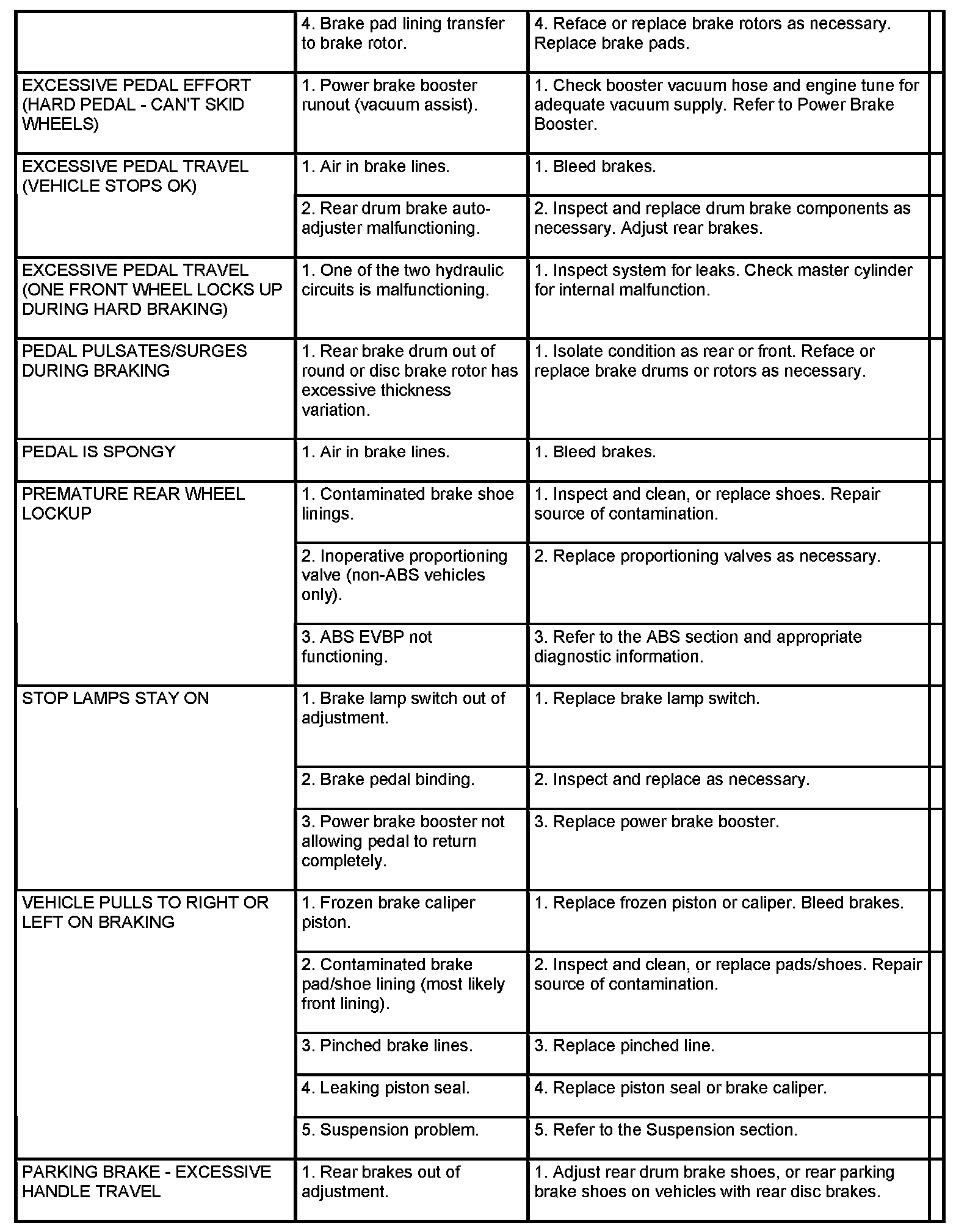

OTHER BRAKE CONDITIONS (Part 1):

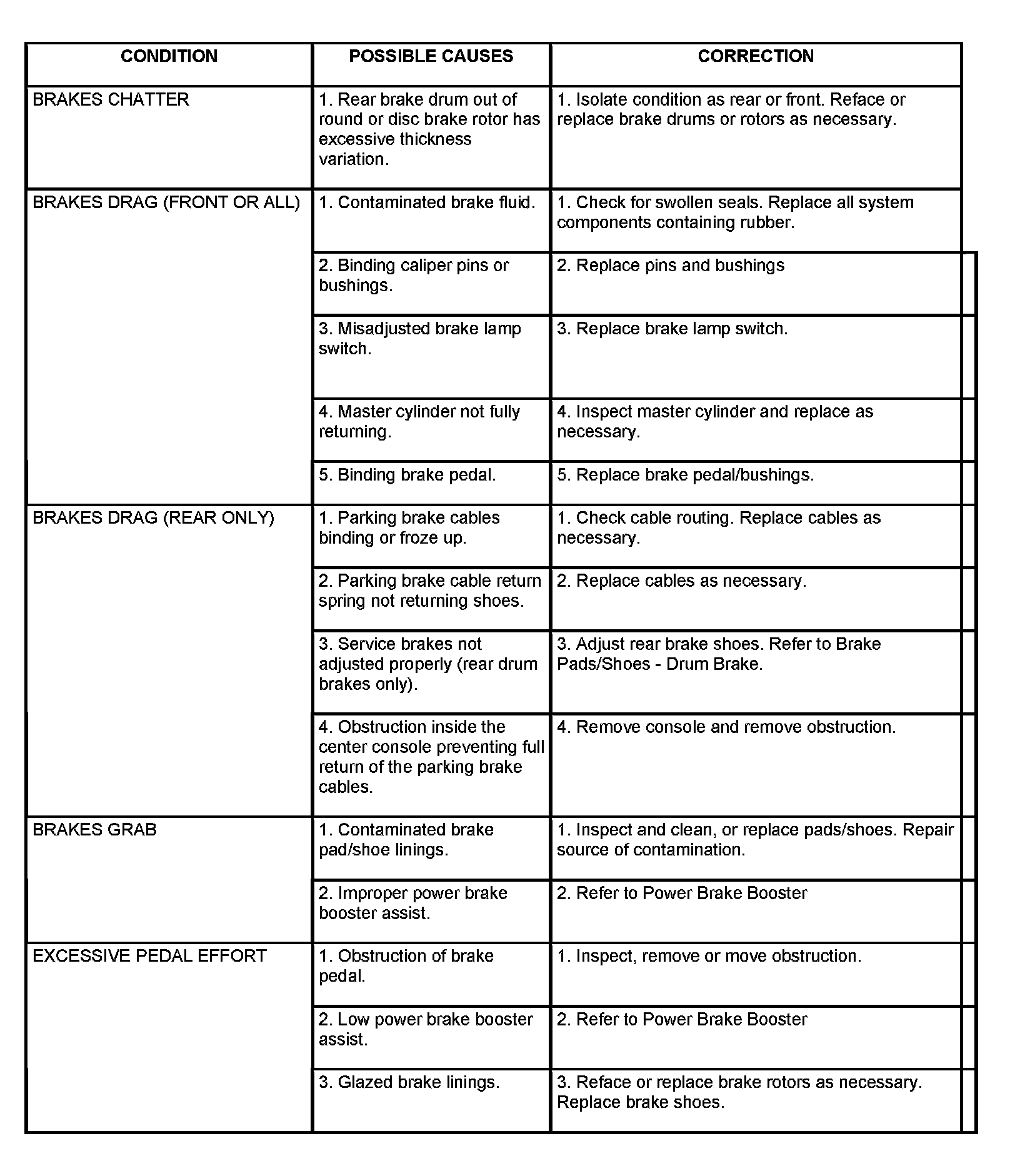

OTHER BRAKE CONDITIONS (Part 2):
