C202

Component ID: 44
Component : C202

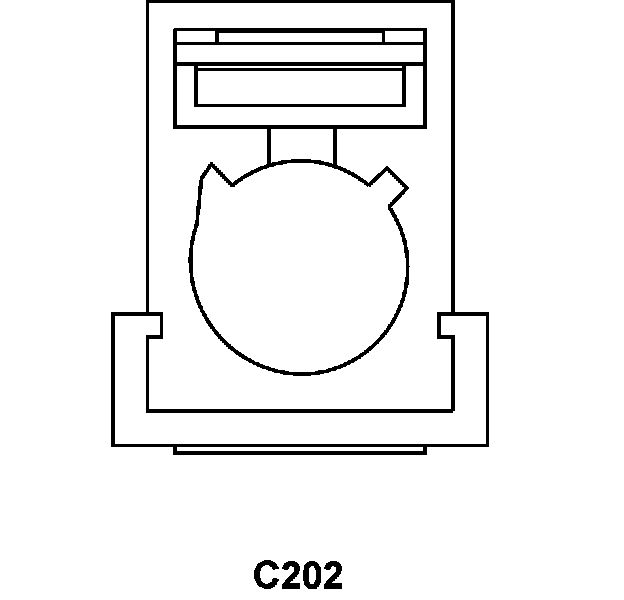

Connector:
Name : C202
Color :
# of pins : 2
Gender : FEMALE




Pin Description Circuit
1 ANTENNA SIGNAL D5 6WT/OR
2 ANTENNA SHIELD D931 WT/YL

Component Location - 37




Component Location - 39




Component Location - 40

Fig. 40:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:

Component Location - 45




Component Location - 55




Component Location - 56

Fig. 56:

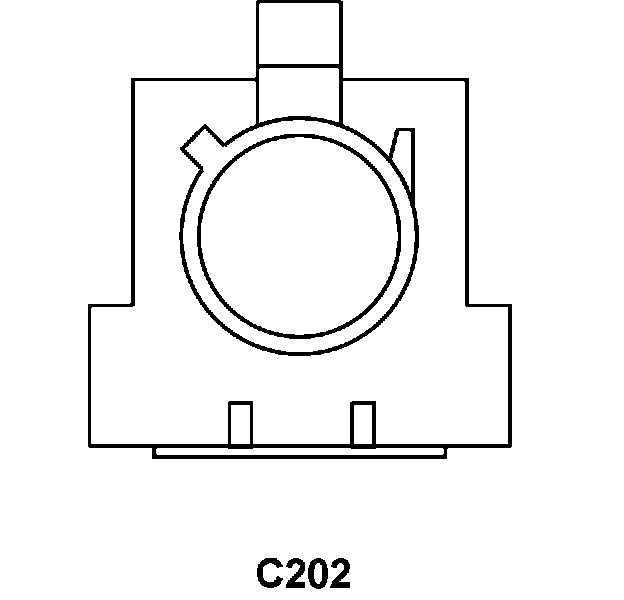

Connector:
Name : C202
Color :
# of pins : 2
Gender : MALE




Pin Description Circuit
1 ANTENNA SIGNAL D5 6WT/OR
2 ANTENNA SHIELD D931 WT/YL

Component Location - 37




Component Location - 39




Component Location - 40

Fig. 40:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:

Component Location - 45




Component Location - 55




Component Location - 56

Fig. 56:
