C312

Component ID: 58
Component : C312

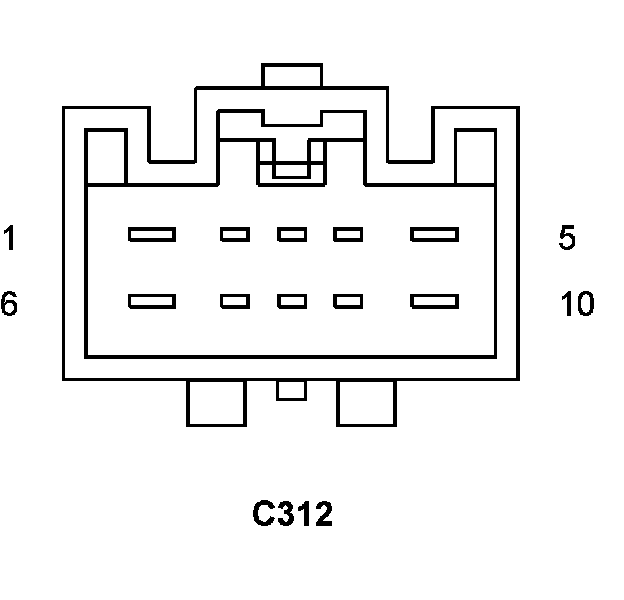

Connector:
Name : C312
Color :
# of pins : 10
Gender : FEMALE




Pin Description Circuit
1 FUSED B(+) A929 12RD
2 - -
3 DRIVER SEAT POSITION SENSOR DATA R261 20LB/WT
4 LIN BUS D506 20WT/DG
5 RIGHT SEAT HEATER B(+) DRIVER P188 18LG/VT
5 LEFT SEAT HEATER B(+) DRIVER P187 18LG/BR
6 FUSED IGNITION SWITCH OUTPUT (RUN) F937 18PK/YL
7 - -
8 DRIVER SEAT POSITION SENSOR VOLTAGE R263 20LB/VT
9 - -
10 GROUND Z914 12BK

Component Location - 57

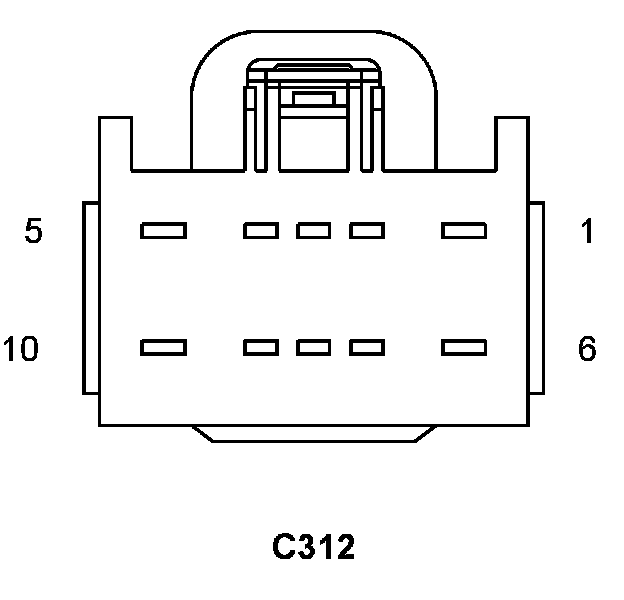

Connector:
Name : C312
Color :
# of pins : 10
Gender : MALE




Pin Description Circuit
1 FUSED B(+) A929 12RD
2 - -
3 DRIVER SEAT POSITION SENSOR DATA R261 20LB/WT
4 LIN BUS D506 22WT/DG
5 RIGHT SEAT HEATER B(+) DRIVER P188 18LG/VT
5 LEFT SEAT HEATER B(+) DRIVER P187 18LG/BR
6 FUSED IGNITION SWITCH OUTPUT (RUN) F937 18PK/YL
7 - -
8 DRIVER SEAT POSITION SENSOR VOLTAGE R263 20LB/VT
9 - -
10 GROUND Z914 12BK

Component Location - 57
