Lamp-Fog-Right Front

Component ID: 146

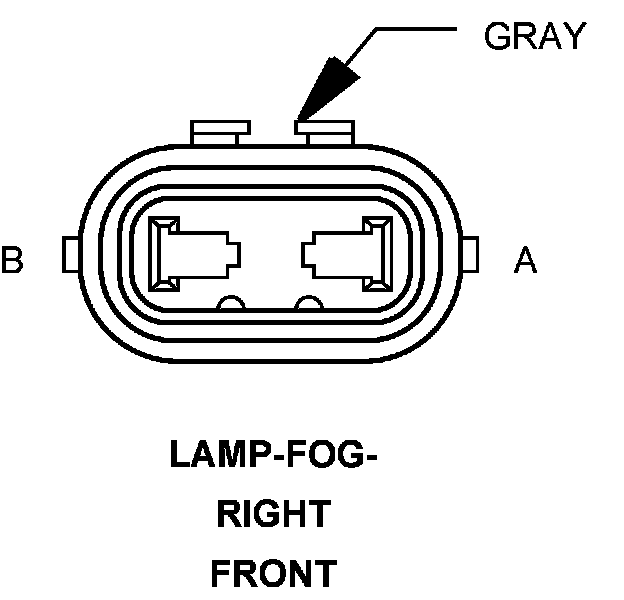

Component : LAMP-FOG-RIGHT FRONT

Connector:
Name : LAMP-FOG-RIGHT FRONT
Color : GRAY
# of pins : 2




A FRONT FOG LAMP CONTROL OUTPUT L90 18WT/OR
B GROUND Z920 18BK

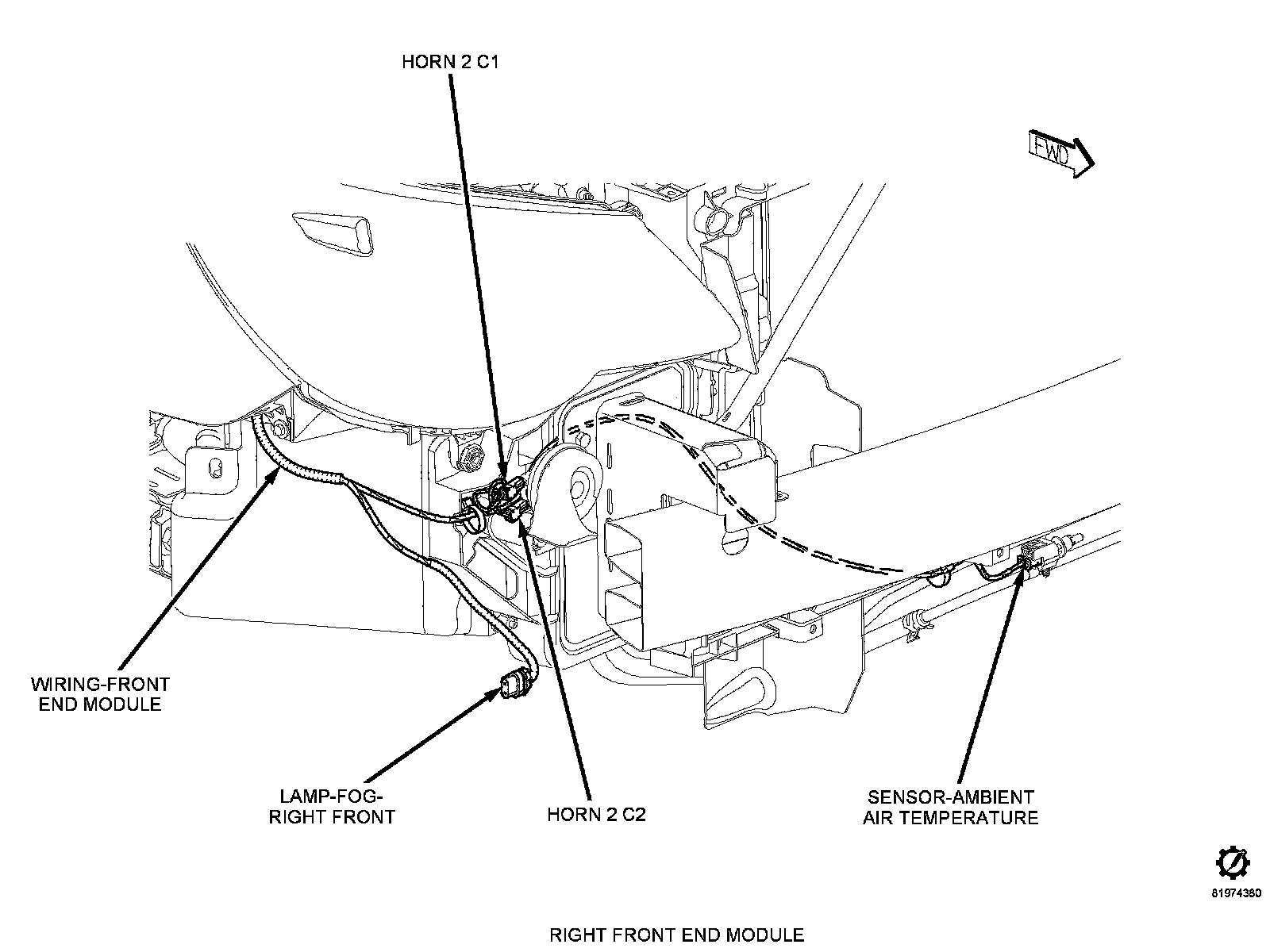

Component Location - 2
