Lamp-License-Left




Component ID: 151

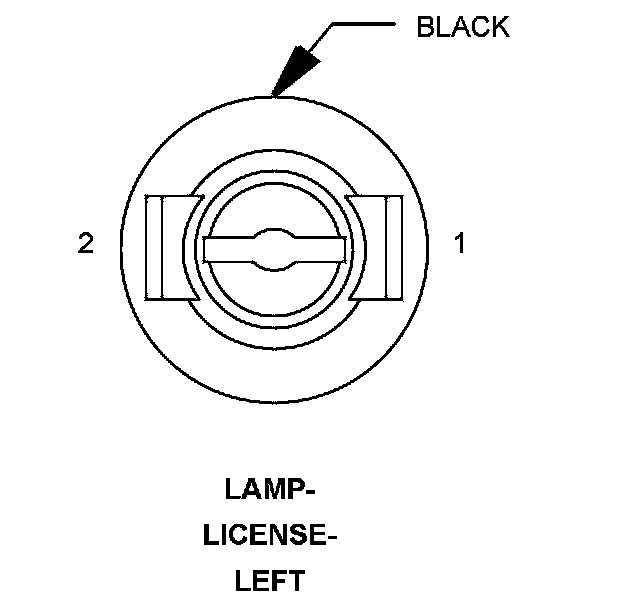

Component : LAMP-LICENSE-LEFT

Connector:
Name : LAMP-LICENSE-LEFT
Color : BLACK
# of pins : 2




Pin Description Circuit
1 PARK LAMP CONTROL OUTPUT L217 20WT/VT
2 GROUND Z916 20BK

Component Location - 72
