Service Specifications

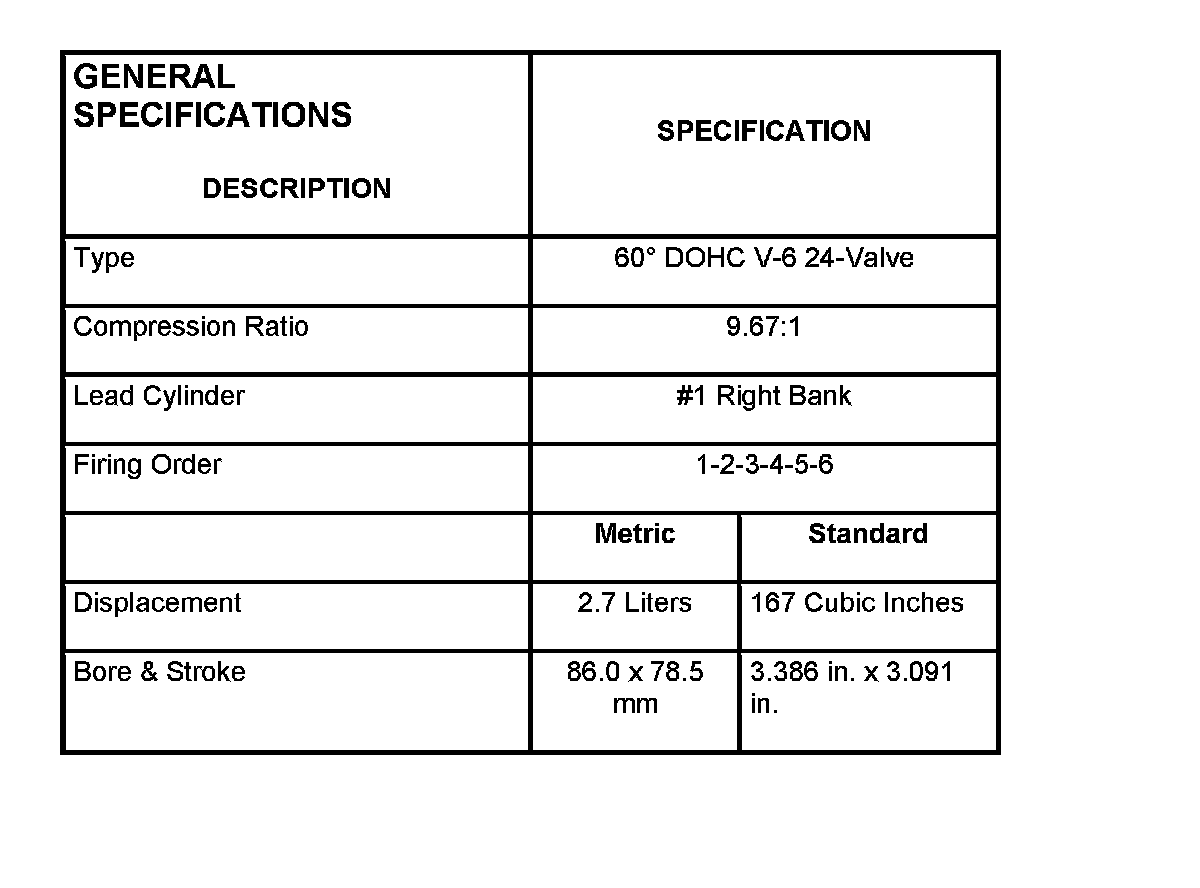

General Specifications:

Cylinder Block:

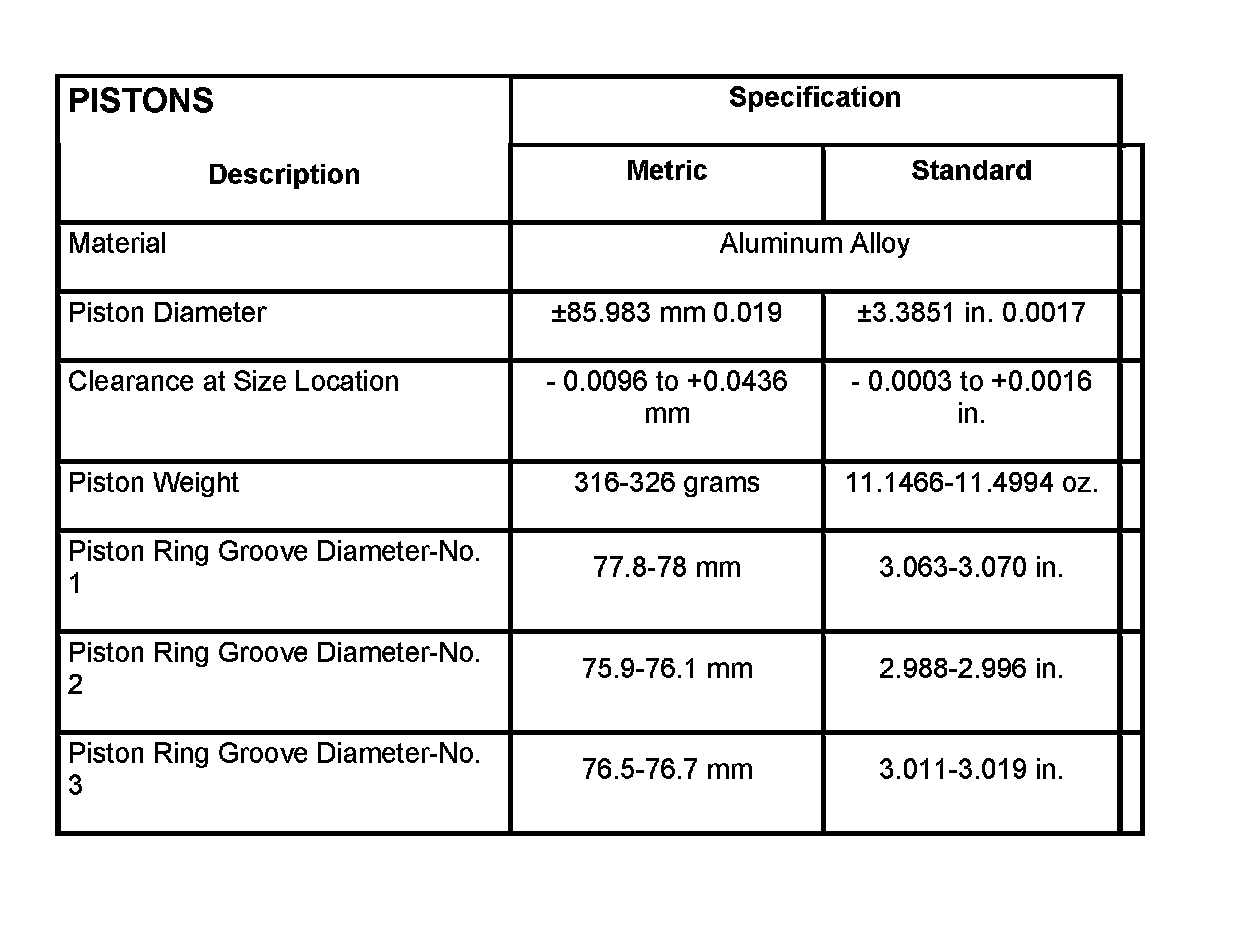

Pistons:

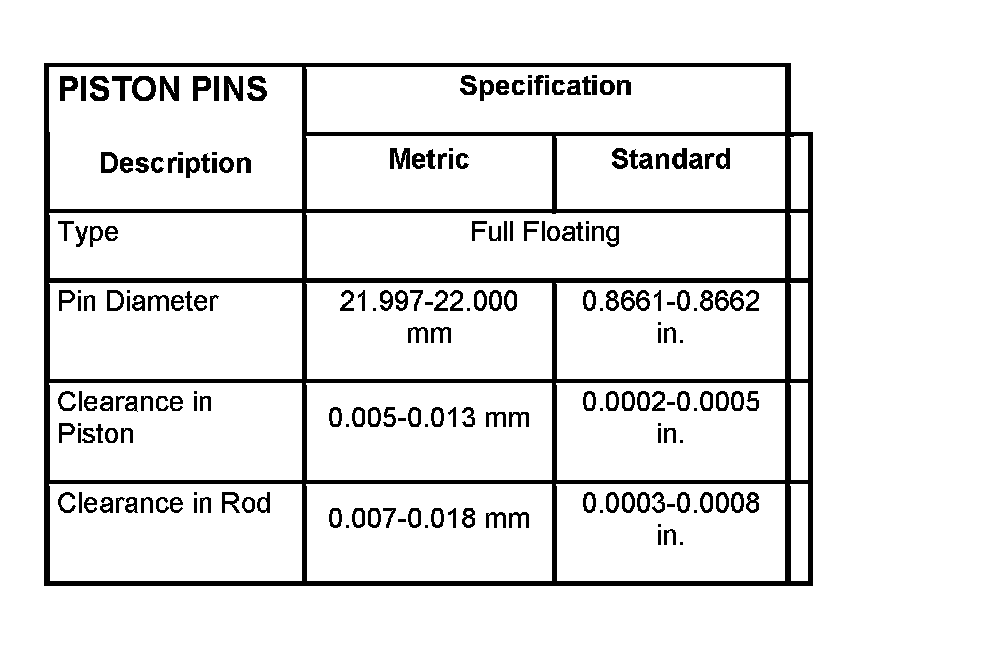

Piston Pins:

Piston Rings:

Piston Ring Side Clearance:

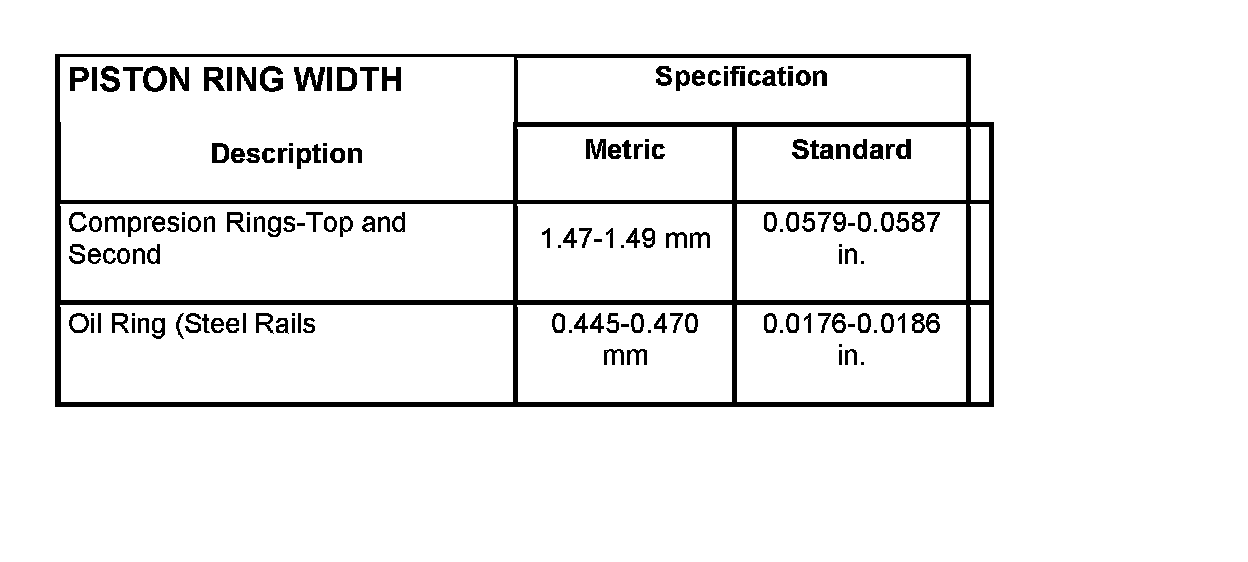

Piston Ring Width:

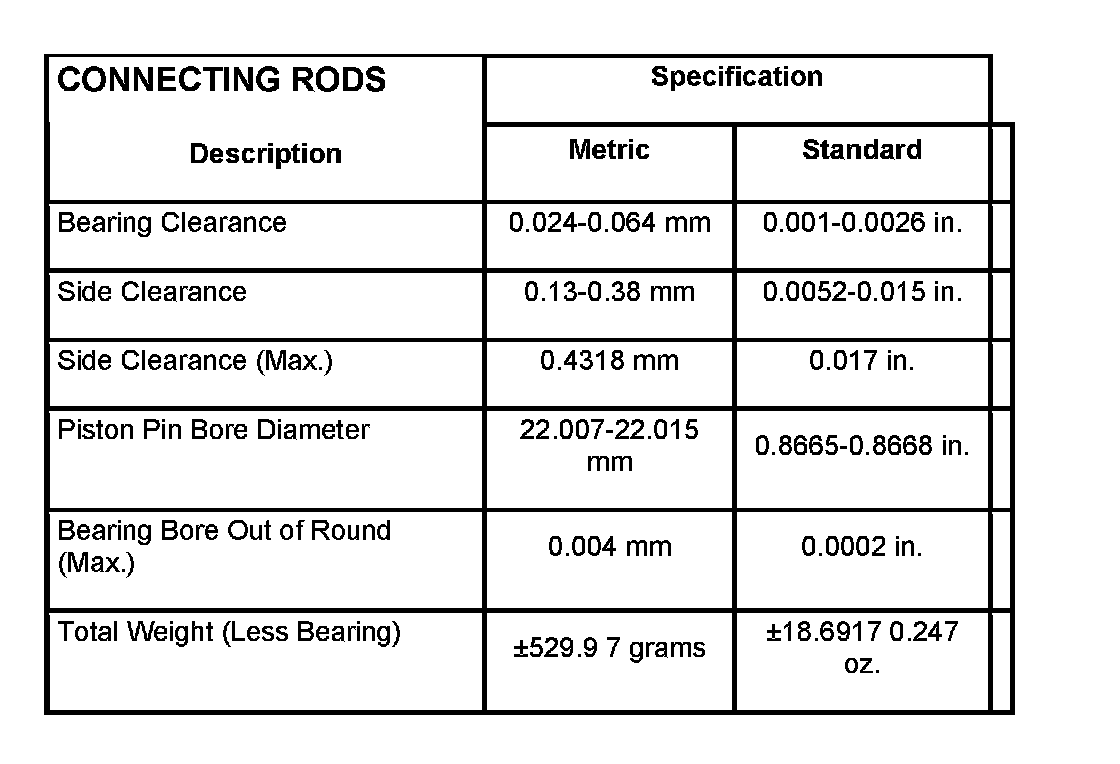

Connecting Rods:

Crankshaft Main Bearing Journals:

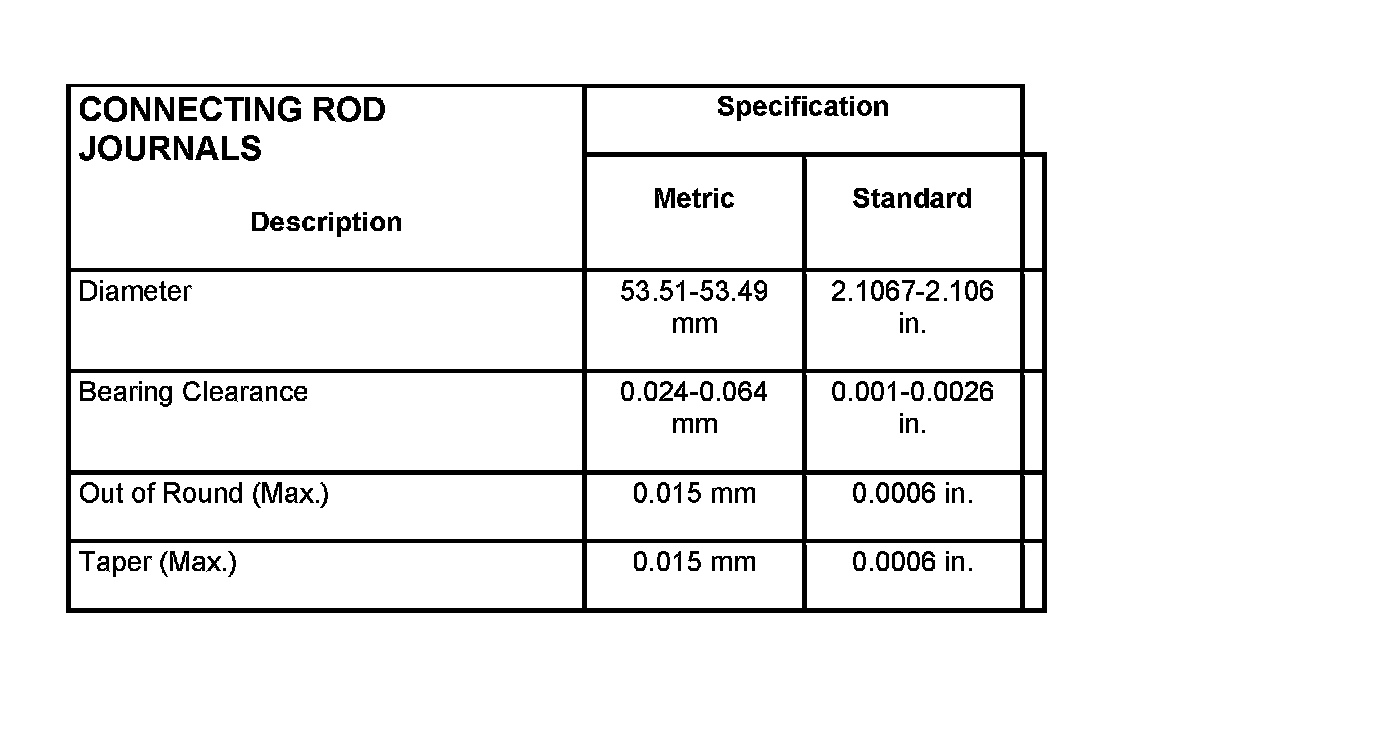

Connecting Rod Journals:

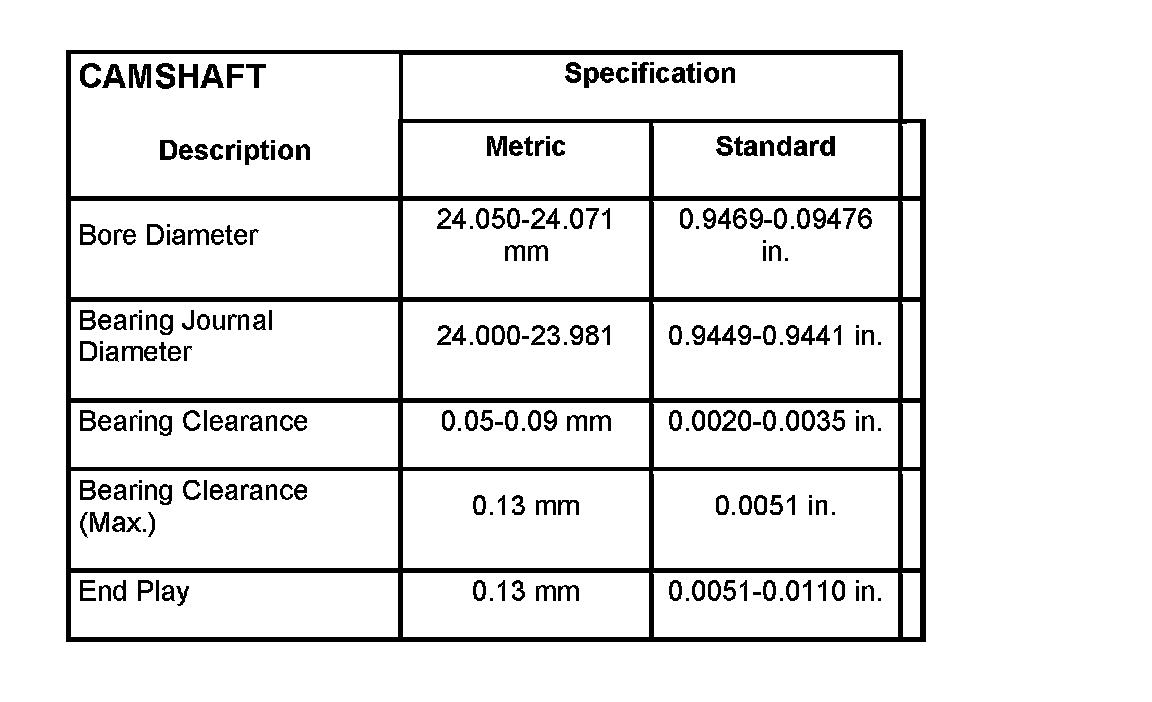

Camshaft:

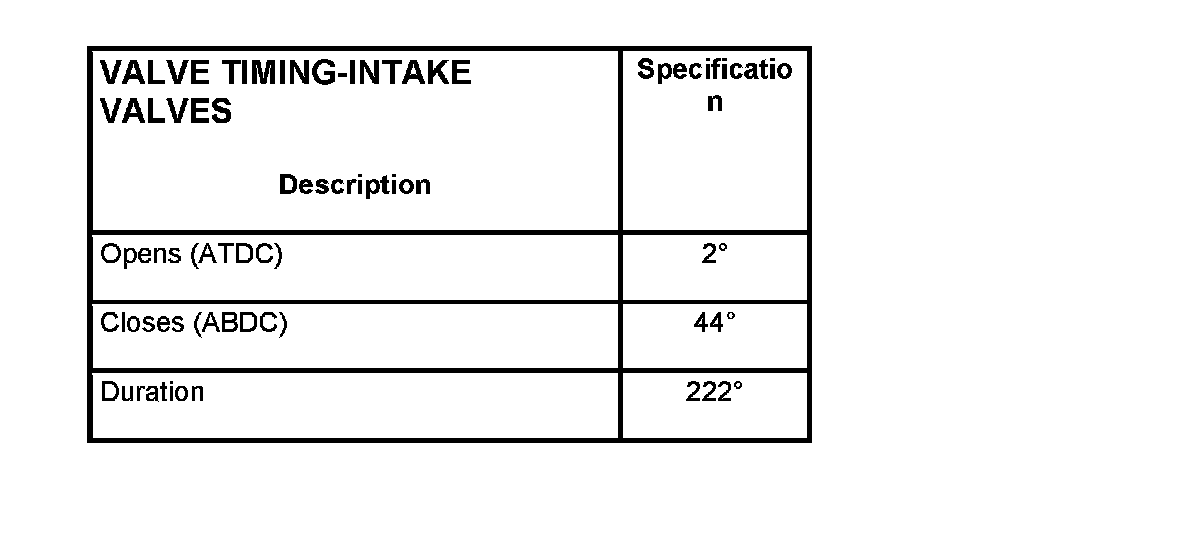

Valve Timing-intake Valves:

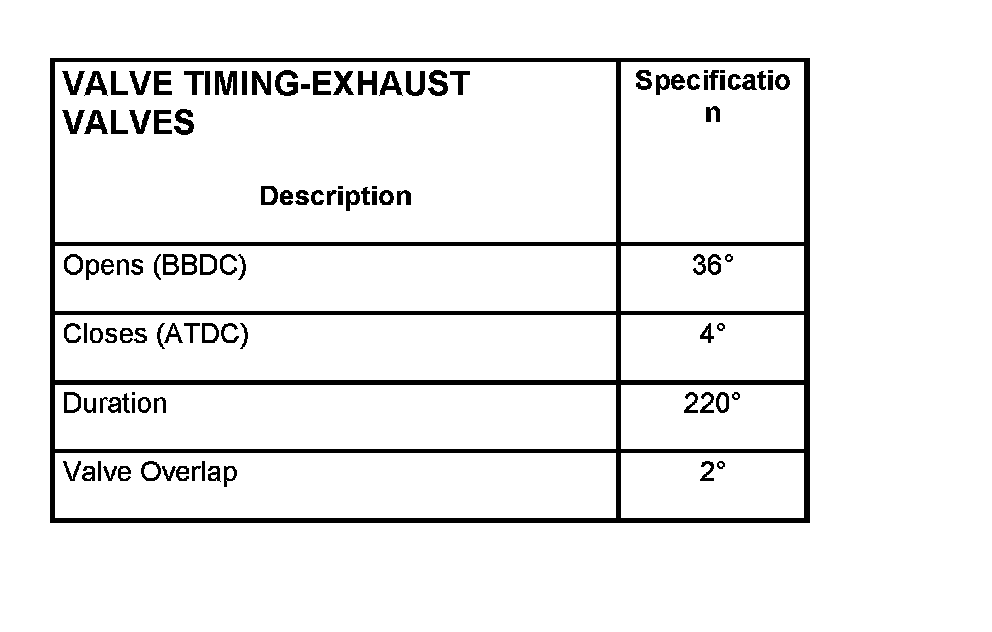

Valve Timing-exhaust Valves:

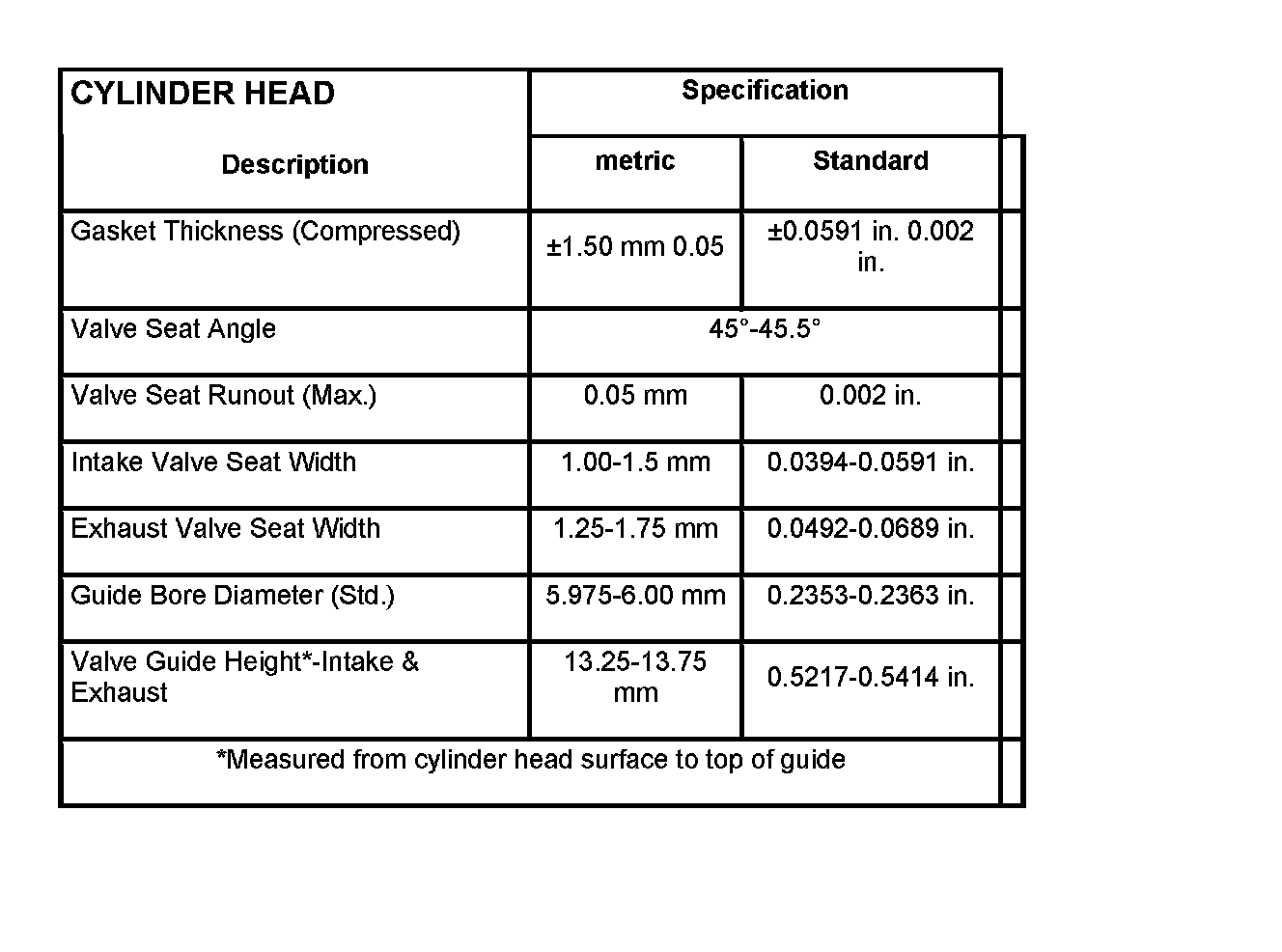

Cylinder Head:

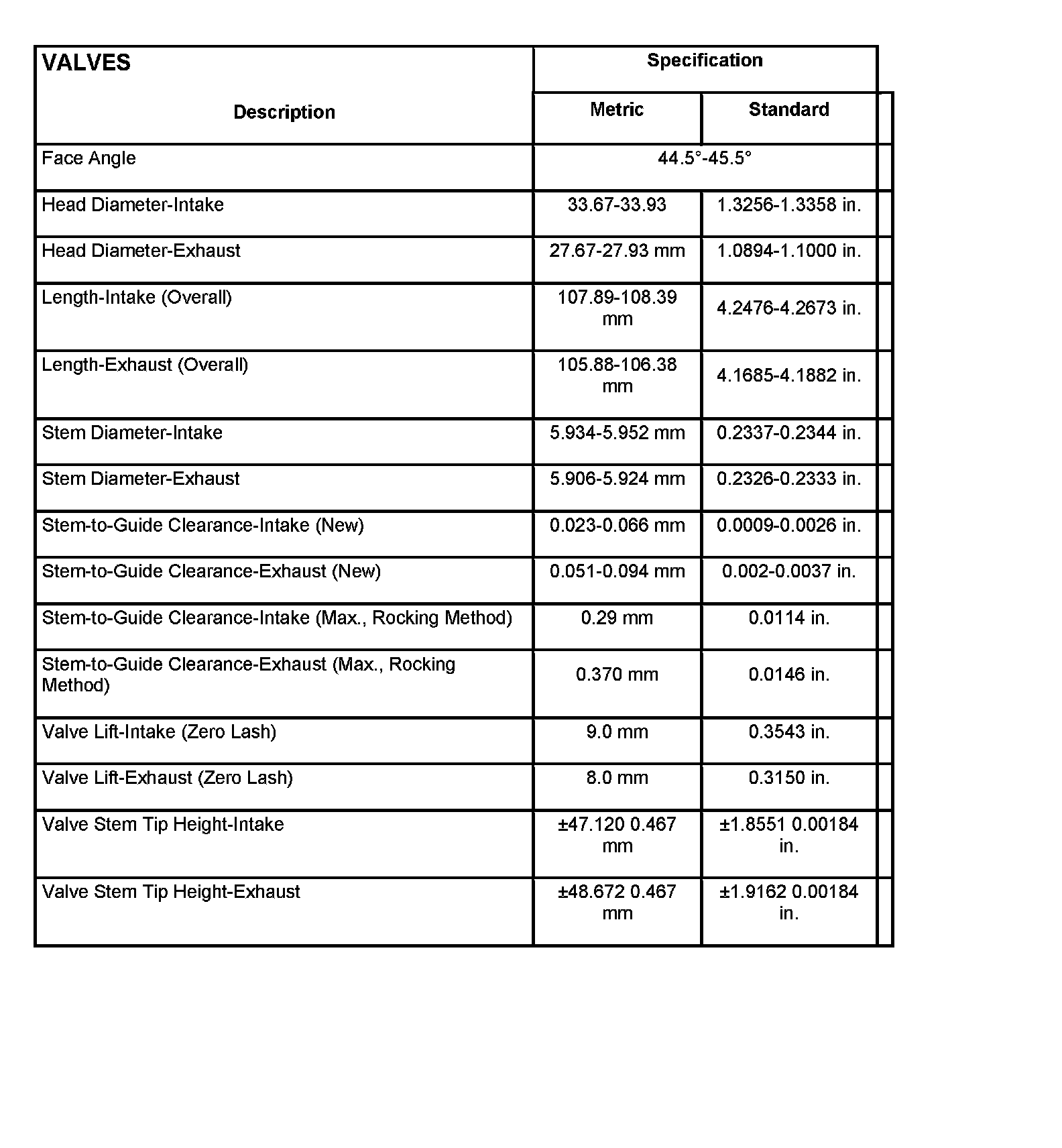

Valves:

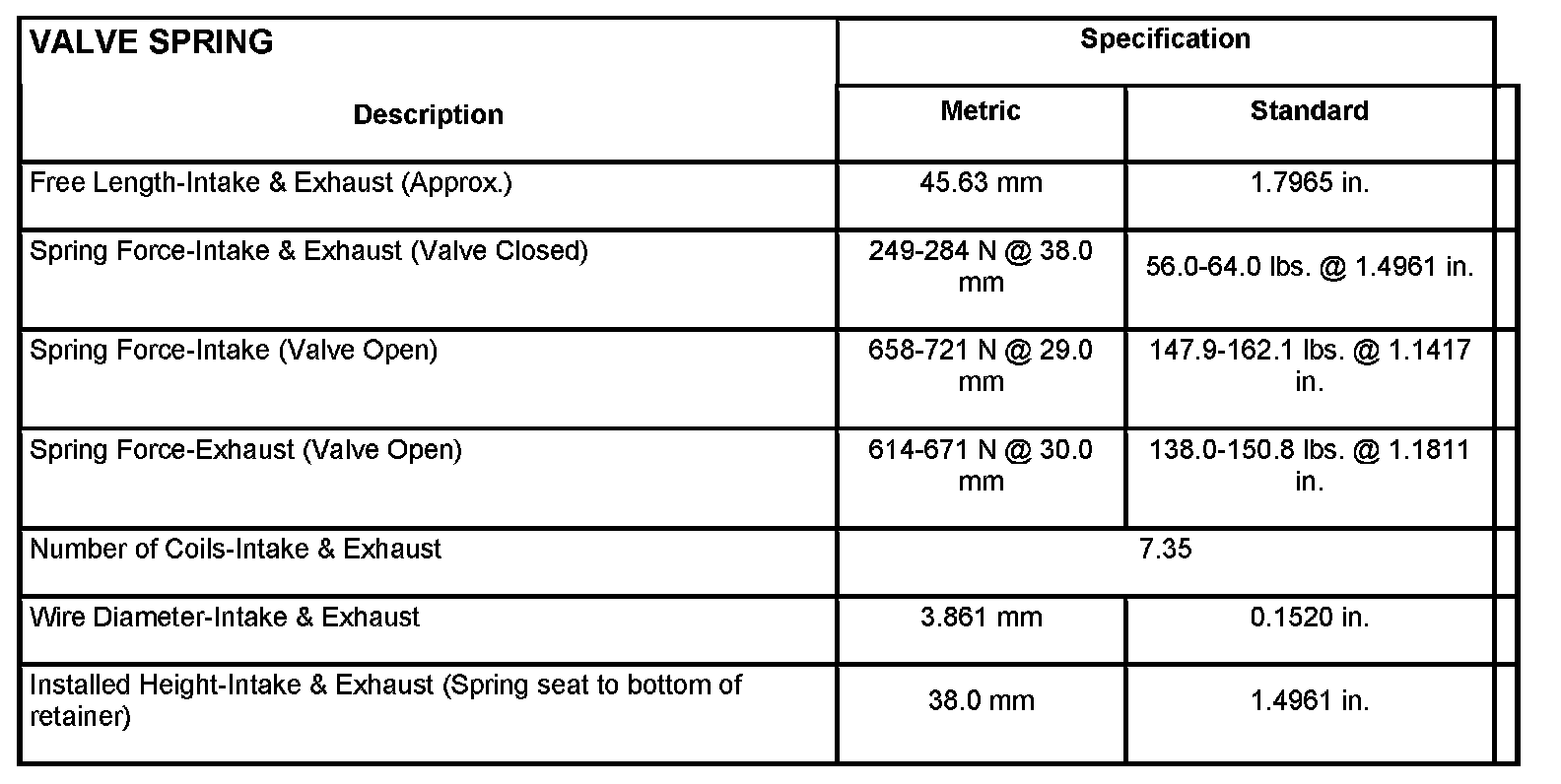

Valve Spring:

Oil Pump:

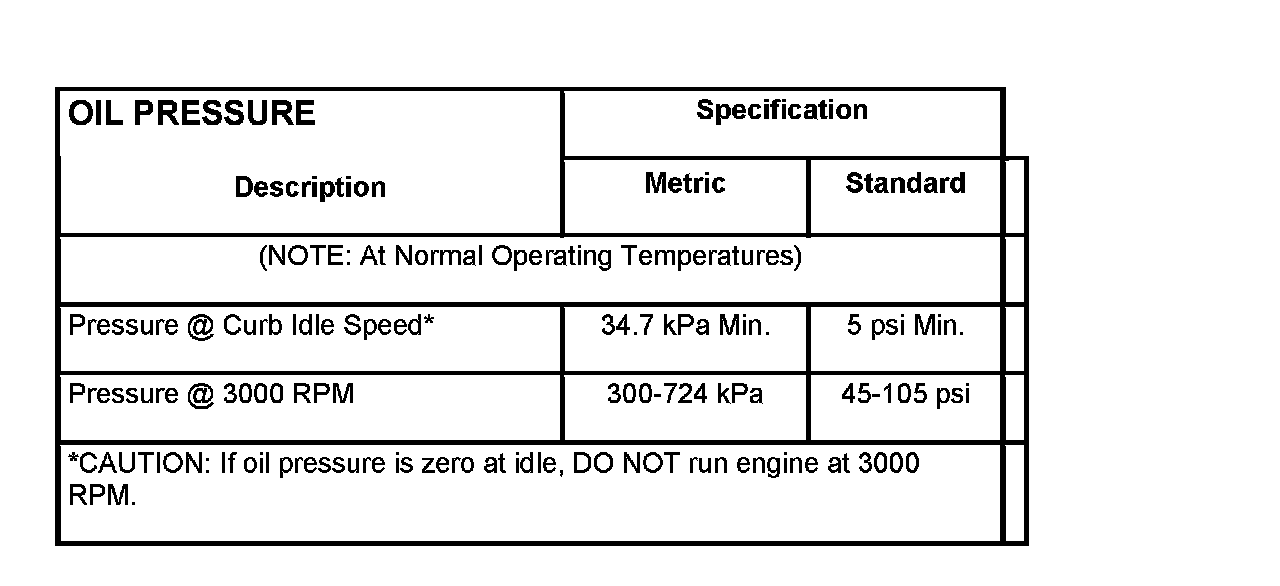

Oil Pressure:
