Antenna, TV

Component ID: 17

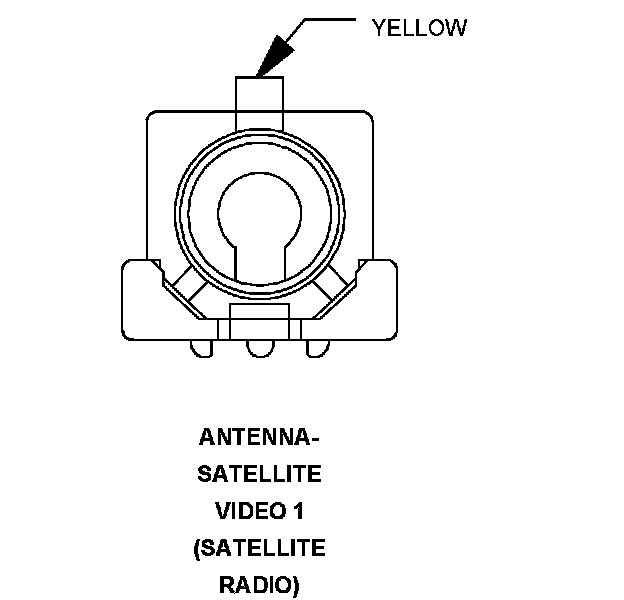

Component : ANTENNA-SATELLITE VIDEO 1

Connector:
Name : ANTENNA-SATELLITE VIDEO 1
Color : YELLOW
# of pins : 2
Qualifier : (SATELLITE VIDEO)




Pin Circuit Description
1 D128 12BK SATELLITE VIDEO ANTENNA SIGNAL 1
2 D141 BK SATELLITE VIDEO ANTENNA SHIELD 1
