Coil-Ignition 8

Component ID: 80

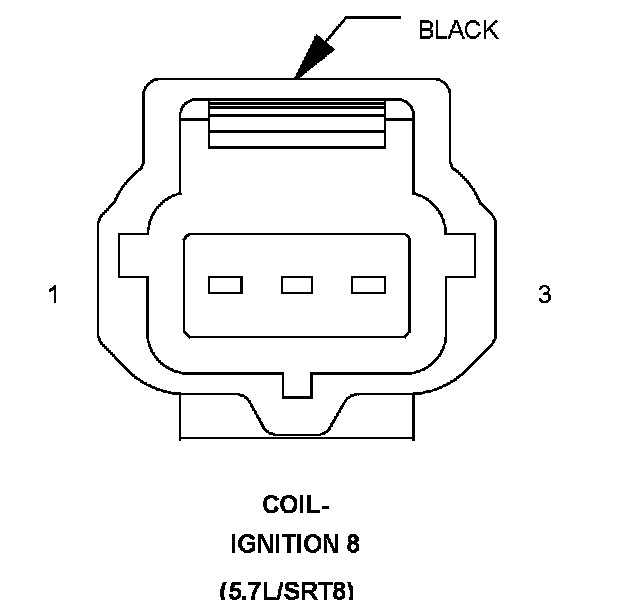

Component : COIL-IGNITION 8

Connector:
Name : COIL-IGNITION 8
Color : BLACK
# of pins : 3
Qualifier : (5.7L/SRT8)




Pin Circuit Description
1 K98 16DB/YL COIL 8 CONTROL
2 F343 16BR/YL FUSED ASD RELAY OUTPUT
3 - -

Component Location - 24




Component Location - 27
