Installation

INSTALLATION





NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Battery Reconnection.

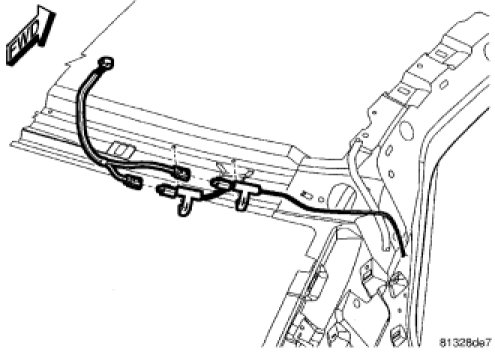

1. Insert wire harness through hole in roof panel. Press antenna into position until both retainers engage into position.
2. Install and tighten mounting fastener.




3. Connect wire harness connectors to antenna.
4. Install headliner.
5. Connect battery negative cable.
