Mirror-Outside Rearview-Driver

Component ID: 238
Component : MIRROR-OUTSIDE REARVIEW-DRIVER

Connector:
Name : MIRROR-OUTSIDE REARVIEW-DRIVER
Color : NATURAL
# of pins : 8
Qualifier : (BASE)




Pin Circuit Description
1 C110 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 P75 20TN/LG DRIVER MIRROR HORIZONTAL DRIVER
3 P76 20TN/LB MIRROR COMMON DRIVER
4 P71 20TN/DG DRIVER MIRROR VERTICAL DRIVER
5 -
6 -
7 - -
8 Z912 20BK/OR GROUND

Component Location - 62

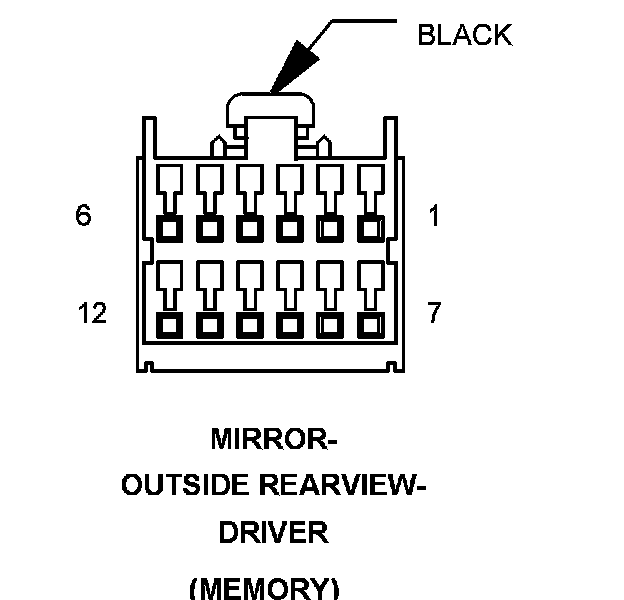

Connector:
Name : MIRROR-OUTSIDE REARVIEW-DRIVER
Color : BLACK
# of pins : 12
Qualifier : (MEMORY)




Pin Circuit Description
1 Z912 20BK/OR GROUND
2 P73 20TN/VT DRIVER MIRROR COMMON DRIVER
3 C110 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4 P71 20TN/DG DRIVER MIRROR VERTICAL DRIVER
5 P75 20TN/LG DRIVER MIRROR HORIZONTAL DRIVER
6 P145 22LG/OR DRIVER MIRROR POSITION SENSOR SUPPLY
7 P67 22TN/OR DRIVER MIRROR VERTICAL POSITION SIGNAL
8 P114 22TN/WT AUTO DAY/NIGHT MIRROR (-)
8 P110 20LG/WT POWER FOLDING MIRROR RETURN
9 P65 22TN/VT DRIVER MIRROR HORIZONTAL POSITION SIGNAL
10 P69 22TN/WT DRIVER MIRROR SENSOR GROUND
11 P112 22TN/OR AUTO DAY/NIGHT MIRROR (+)
11 P699 20LG/DG POWER FOLDING MIRROR DRIVER
12 - -

Component Location - 62

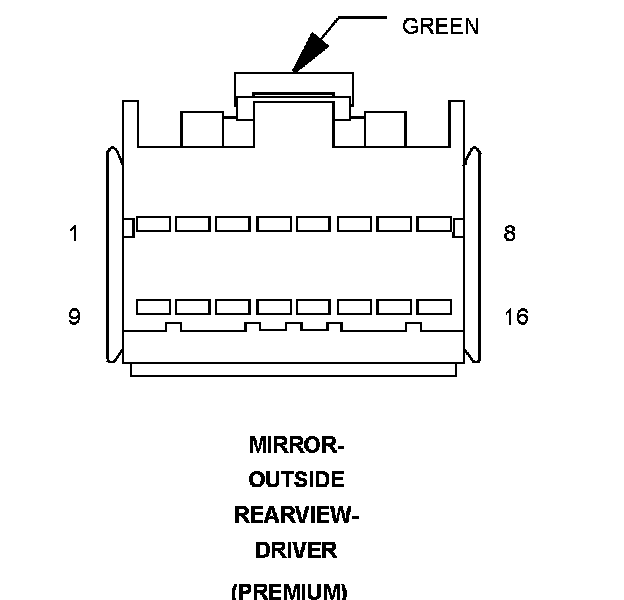

Connector:
Name : MIRROR-OUTSIDE REARVIEW-DRIVER
Color : GREEN
# of pins : 16
Qualifier : (PREMIUM)




Pin Circuit Description
1 Z912 20BK/OR GROUND
2 P73 20TN/VT DRIVER MIRROR COMMON DRIVER
3 C110 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4 P71 20TN/DG DRIVER MIRROR VERTICAL DRIVER
5 P75 20TN/LG DRIVER MIRROR HORIZONTAL DRIVER
6 P145 22LG/OR DRIVER MIRROR POSITION SENSOR SUPPLY
7 P67 22TN/OR DRIVER MIRROR VERTICAL POSITION SIGNAL
8 P114 22TN/WT AUTO DAY/NIGHT MIRROR (-)
9 P65 22TN/VT DRIVER MIRROR HORIZONTAL POSITION SIGNAL
10 P69 22TN/WT DRIVER MIRROR SENSOR GROUND
11 P112 22TN/OR AUTO DAY/NIGHT MIRROR (+)
12 P501 22LG/GY DRIVER TURN SIGNAL RETURN
13 M41 22YL/OR DRIVER PUDDLE LAMP DRIVER
14 P591 22GY/LG DRIVER TURN SIGNAL DRIVER
15 - -
16 - -

Component Location - 62
