Airbag-Side Thorax-Right

Component ID: 11

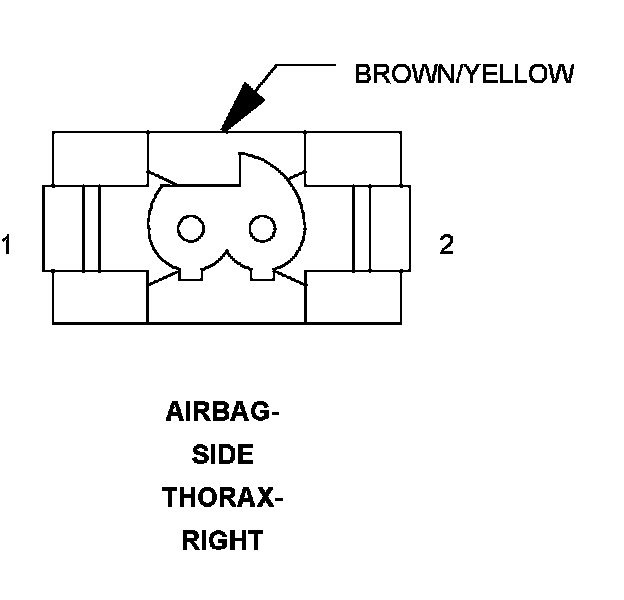

Component : AIRBAG-SIDE THORAX-RIGHT

Connector:
Name : AIRBAG-SIDE THORAX-RIGHT
Color : BROWN/YELLOW
# of pins : 2




Pin Circuit Description
1 R6 20VT/LB RIGHT SEAT THORAX SQUIB 1 LINE 2
2 R8 20GY/LG RIGHT SEAT THORAX SQUIB 1 LINE 1
