Actuator-Mode Door

Component ID: 3

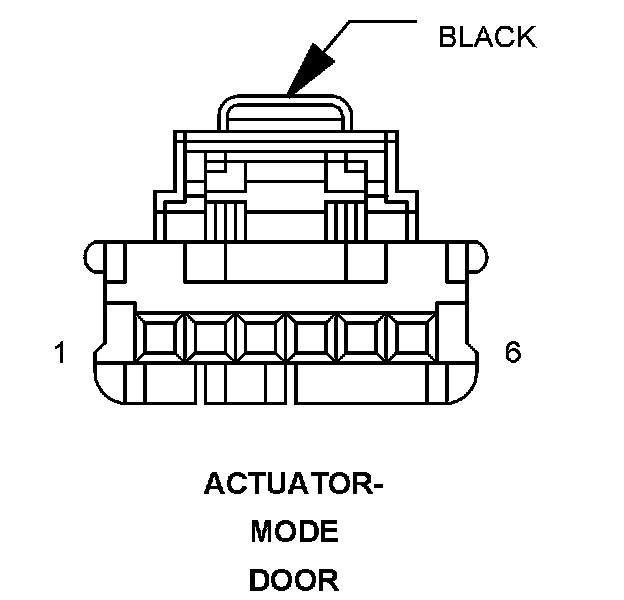

Component : ACTUATOR-MODE DOOR

Connector:
Name : ACTUATOR-MODE DOOR
Color : BLACK
# of pins : 6




Pin Circuit Description
1 C66 20DB/OR MODE DOOR COMMON DRIVER
2 - -
3 - -
4 - -
5 - -
6 C266 20OR/DB MODE DOOR DRIVER

Component Location - 35
