Auxiliary Input / Output Jack, Entertainment System

Component ID: 292

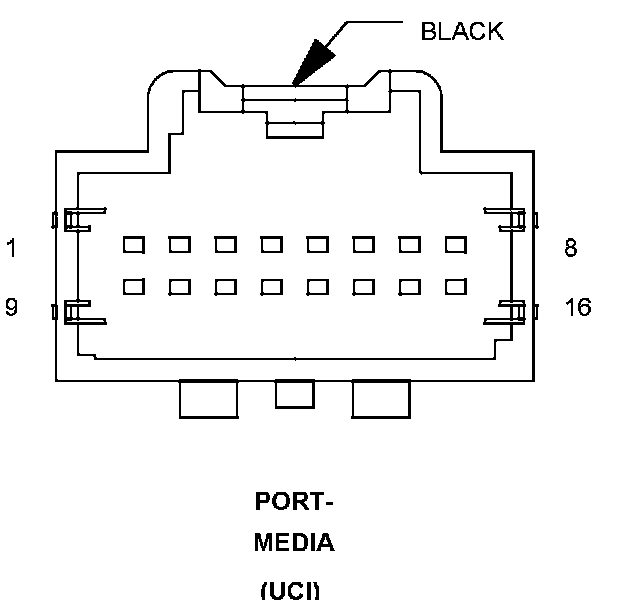

Component : PORT-MEDIA

Connector:
Name : PORT-MEDIA
Color : BLACK
# of pins : 16
Qualifier : (UCI)




Pin Circuit Description
1 X441 20PK UCI POWER FEED PASS THROUGH
2 X431 20DG UCI EXT RECEIVE
3 X430 20DB UCI EXT TRANSMIT
4 - -
5 - -
6 - -
7 X435 20RD UCI AUDIO RIGHT INPUT
8 X436 20WT UCI AUDIO LEFT INPUT
9 X437 20NA UCI AUDIO REFERENCE
10 Z433 20BK GROUND
11 - -
12 - -
13 - -
14 X432 20GY UCI SHIELD
15 X439 20BR UCI ID
16 X440 20YL UCI DEVICE DETECT
