System Diagram

Component ID: 24
Component : BATTERY

Connector:
Name : BATTERY-NEGATIVE
Color :
# of pins : 1




Pin Circuit Description
1 Z915 2BK GROUND
Pin Circuit Description
1 Z915 6BK GROUND

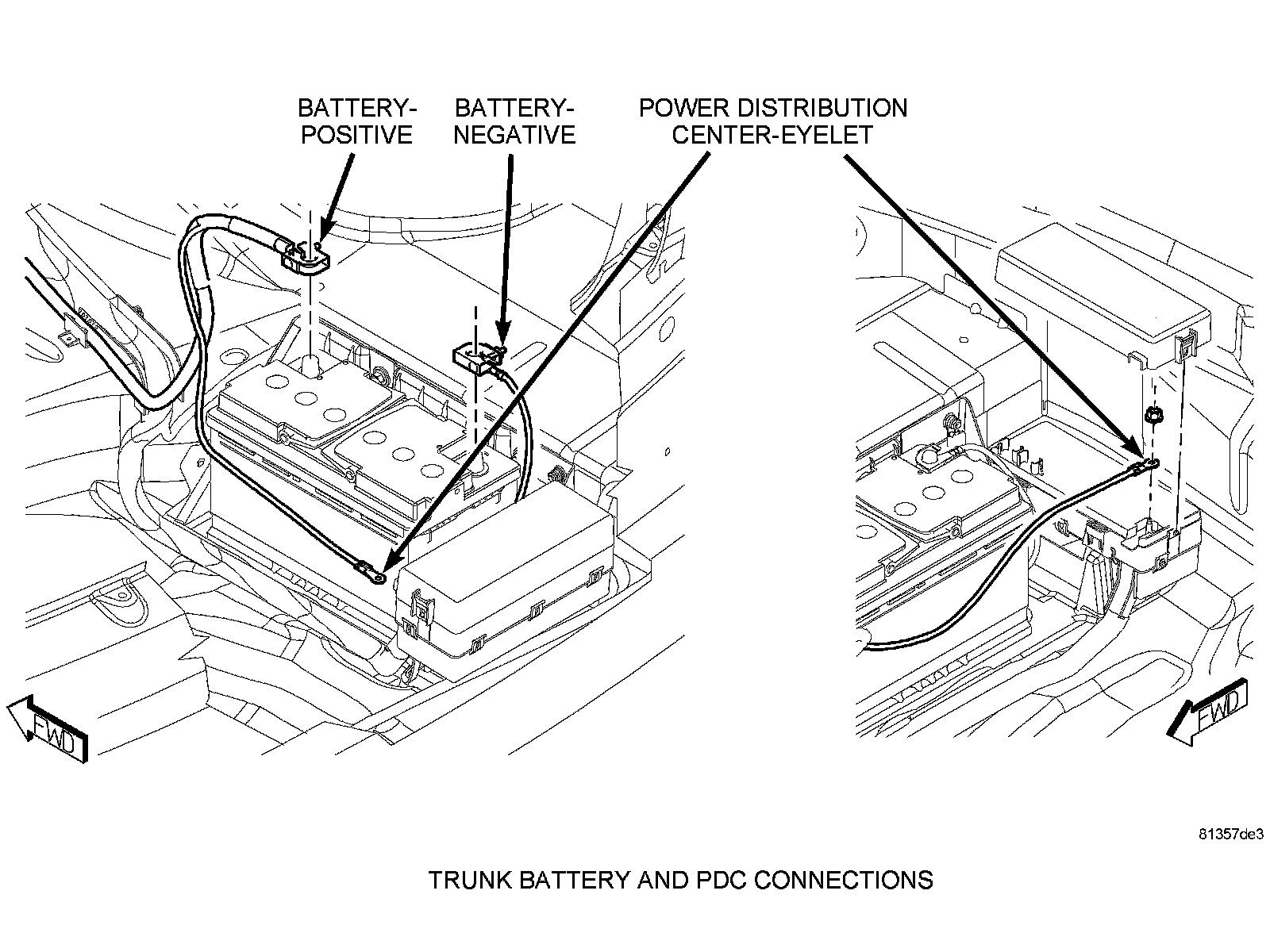

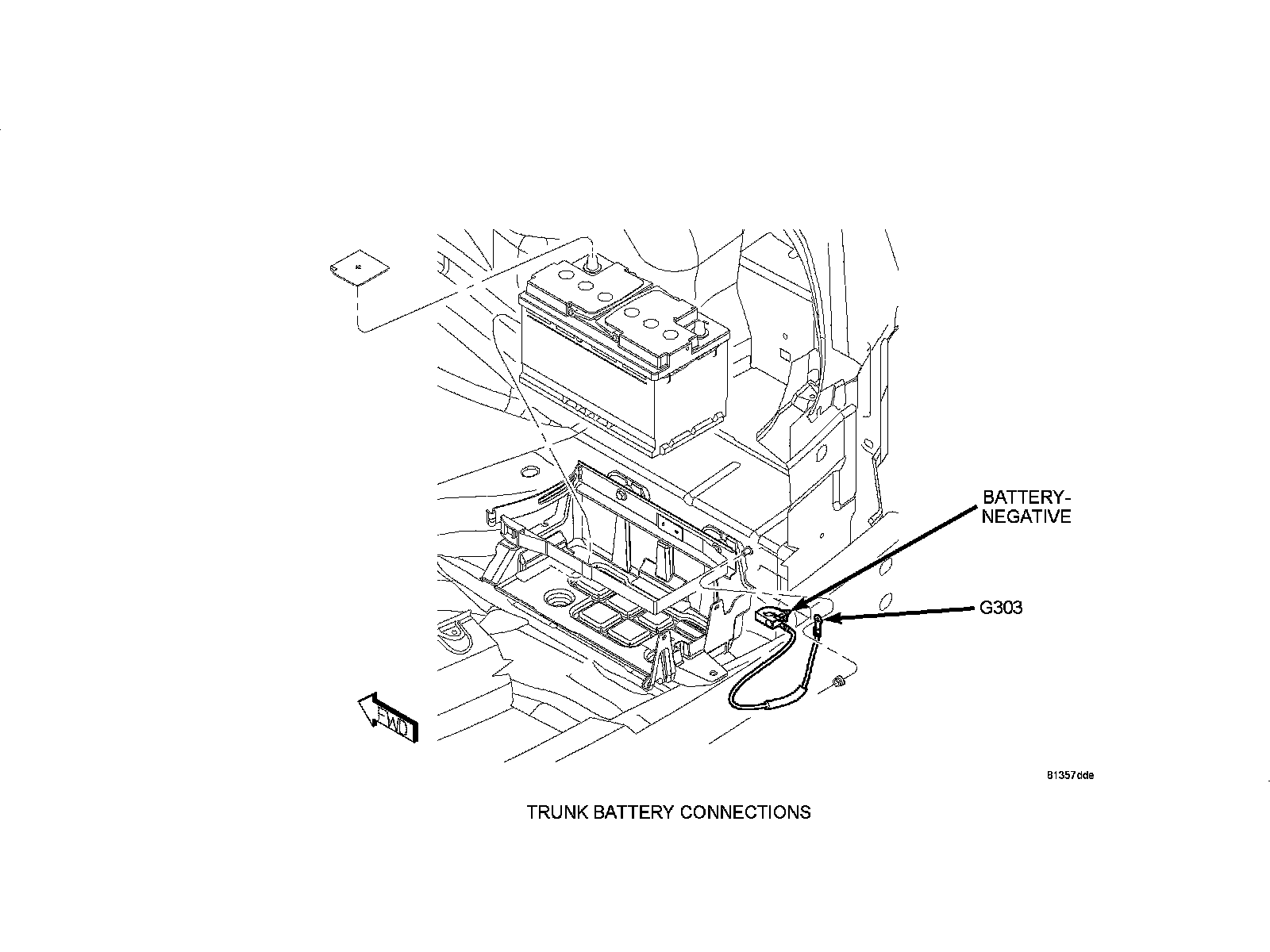

Component Location - 82




Component Location - 83




Component Location - 84






Connector:

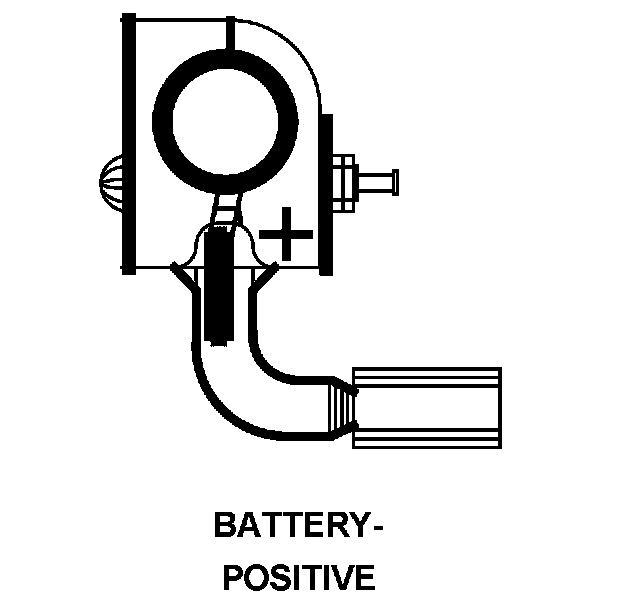

Name : BATTERY-POSITIVE
Color :
# of pins : 1




Pin Circuit Description
1 A1 6RD B(+)
Pin Circuit Description
1 A1 00RD B(+)
Pin Circuit Description
1 A1 1RD B(+)

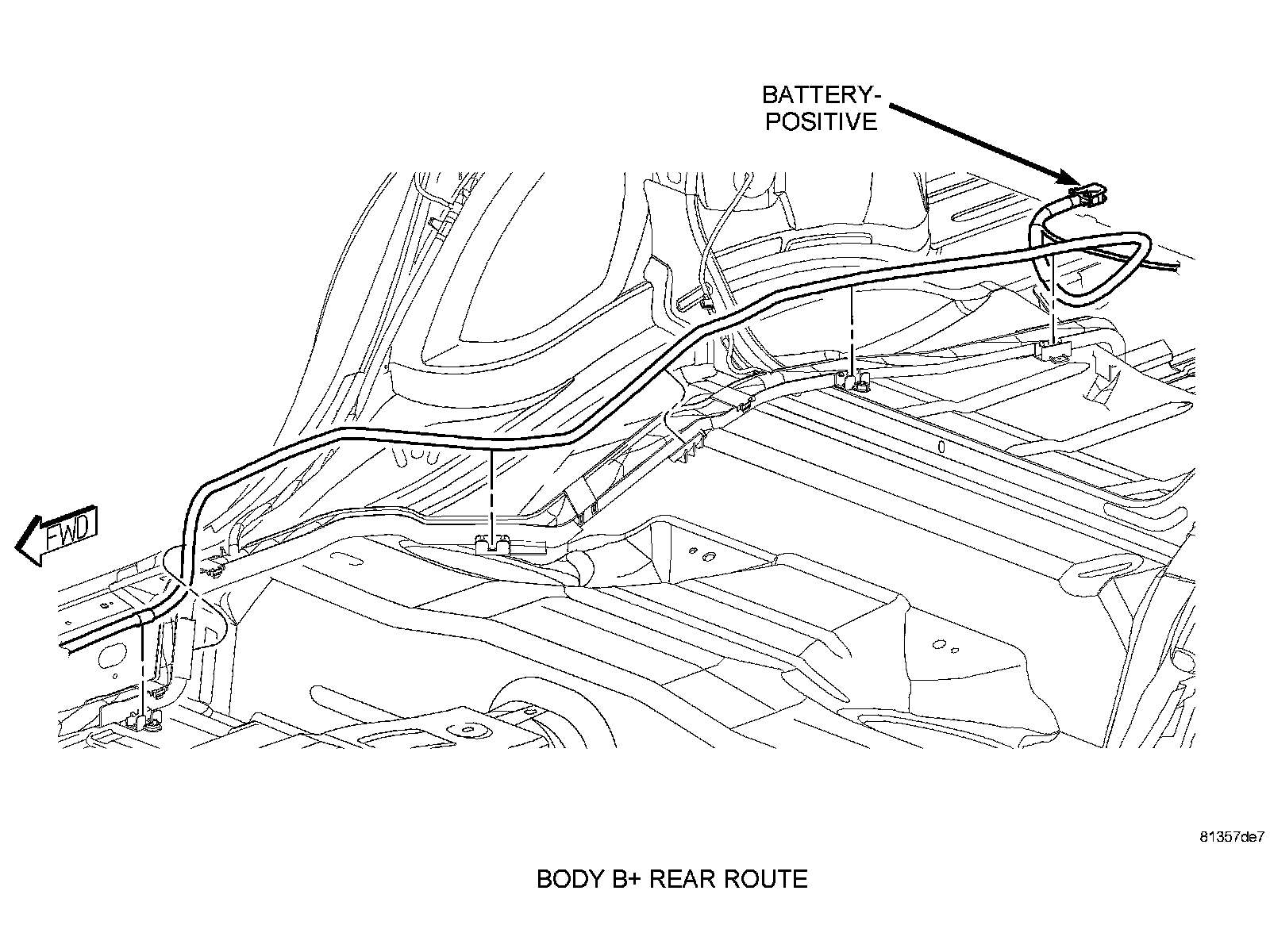

Component Location - 82




Component Location - 83




Component Location - 84
