Blower Motor Resistor

Component ID: 324
Component : RESISTOR BLOCK-BLOWER MOTOR-FRONT

Connector:

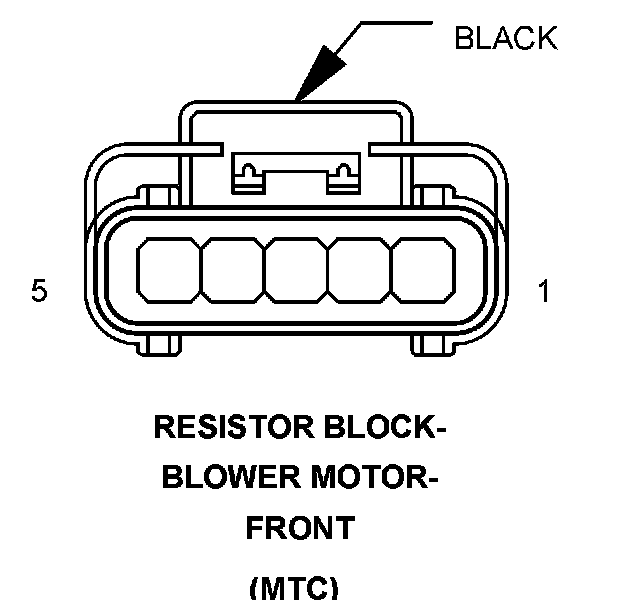

Name : RESISTOR BLOCK-BLOWER MOTOR-FRONT
Color : BLACK
# of pins : 5
Qualifier : (MTC)




Pin Circuit Description
1 C70 12DB/YL FRONT BLOWER HIGH SPEED
2 Z134 12BK/LG PARK ASSIST DISPLAY GROUND
3 C73 14DB/VT FRONT BLOWER M2 SPEED
4 C72 14DB/OR FRONT BLOWER M1 SPEED
5 C71 16DB/BR FRONT BLOWER LOW SPEED

Component Location - 33
