C102

Component ID: 27
Component : C102

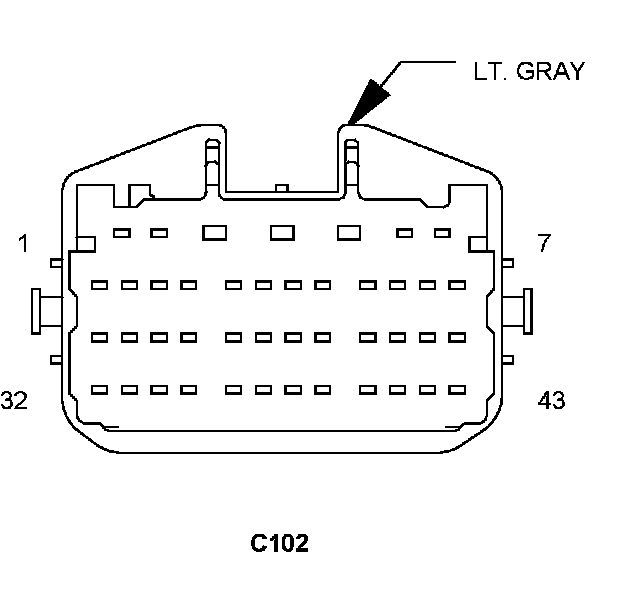

Connector:
Name : C102
Color : LT. GRAY
# of pins : 43
Gender : FEMALE

Pin Circuit Description
1 - -
2 - -
3 - -
4 - -
5 - -
6 - -
7 - -
8 F202 20PK/GY FUSED IGNITION RUN-START OUTPUT
9 F902 20PK IGNITION OFF-RUN-START
10 - -
11 - -
12 - -
13 - -
14 L91 20WT/DB HAZARD SWITCH SENSE
15 - -
16 - -
17 - -
18 - -
19 F500 20DG/PK FUSED RUN RELAY OUTPUT
20 - -
21 - -
22 D54 20WT CAN B BUS (-)
23 D55 20WT/OR CAN B BUS (+)
24 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
25 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
26 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
27 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
28 - -
29 F20 20PK/WT IGNITION RUN-START OUTPUT
30 - -
31 - -
32 - -
33 - -
34 D96 20WT/LB SIREN SIGNAL CONTROL
35 - -
36 - -
37 D71 20WT/DB DIAGNOSTIC CAN C (-)
38 D72 20WT/LB DIAGNOSTIC CAN C (+)
39 - -
40 - -
41 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
42 - -
43 - -

Component Location - 36

Component Location - 37

Component Location - 52

Component Location - 46

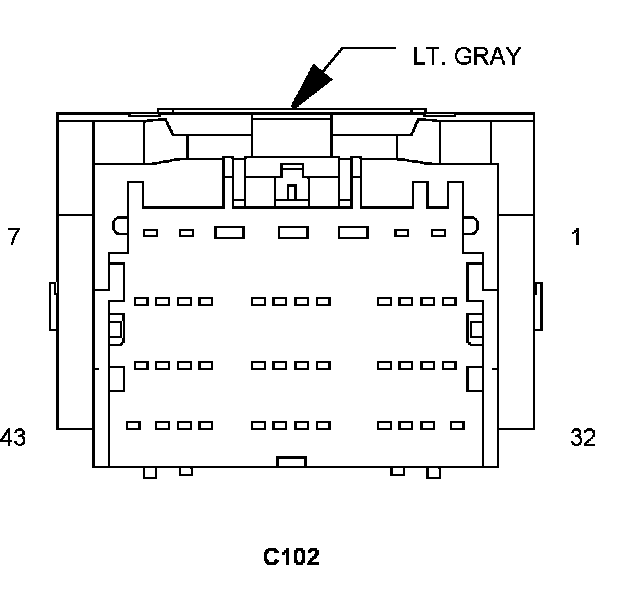

Connector:
Name : C102
Color : LT. GRAY
# of pins : 43
Gender : MALE

Component Location - 37

Component Location - 52

Component Location - 46
