C105
Component ID: 30
Component : C105

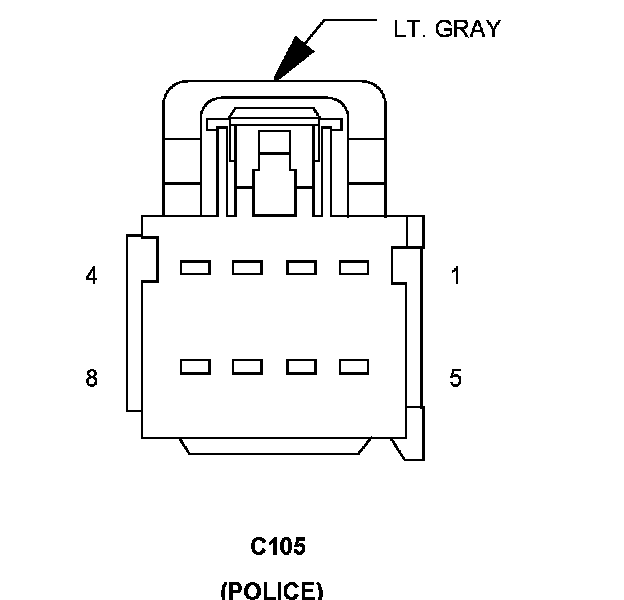

Connector:
Name : C105
Color : LT. GRAY
# of pins : 8
Qualifier : (POLICE)
Gender : FEMALE
Pin Circuit Description
1 Z950 18BK/TN POLICE ACCESSORIES WIRE 1
2 Z951 18BK/WT POLICE ACCESSORIES WIRE 2
3 Z952 18BK/OR POLICE ACCESSORIES WIRE 3
4 Z953 18BK/LG POLICE ACCESSORIES WIRE 4
5 Z954 18BK/RD POLICE ACCESSORIES WIRE 5
6 Z955 18BK/DB POLICE ACCESSORIES WIRE 6
7 - -
8 - -

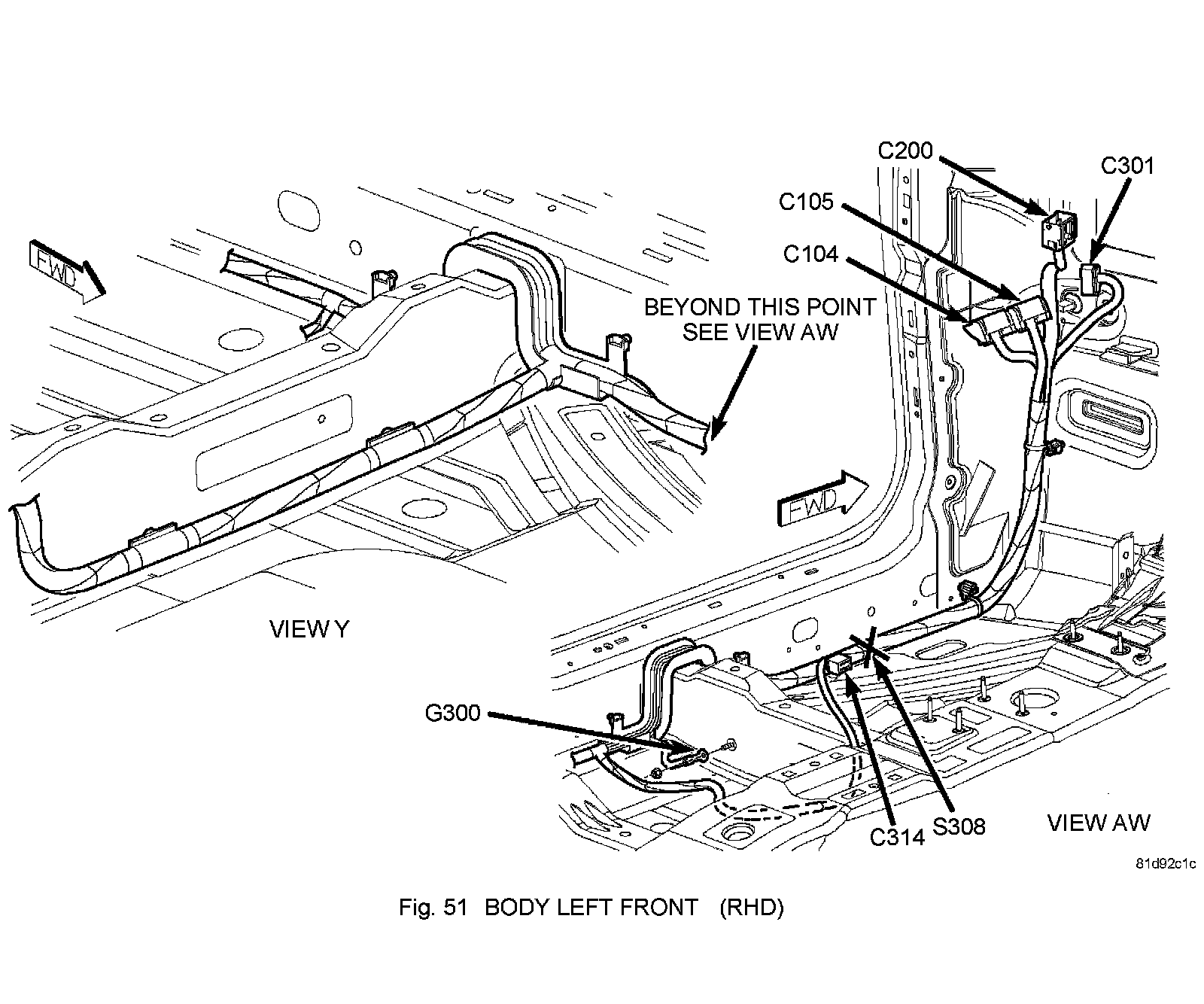

Component Location - 51
Component Location - 52
Connector:
Name : C105
Color : LT. GRAY
# of pins : 8
Qualifier : (POLICE)
Gender : MALE
Pin Circuit Description
1 Z950 18BK/TN POLICE ACCESSORIES WIRE 1
2 Z951 18BK/WT POLICE ACCESSORIES WIRE 2
3 Z952 18BK/OR POLICE ACCESSORIES WIRE 3
4 Z953 18BK/LG POLICE ACCESSORIES WIRE 4
5 Z954 18BK/RD POLICE ACCESSORIES WIRE 5
6 Z955 18BK/DB POLICE ACCESSORIES WIRE 6
7 - -
8 - -
Component Location - 51
Component Location - 52
Connector:
Name : C105
Color : GREEN
# of pins : 43
Qualifier : (SRT8)
Gender : FEMALE
Pin Circuit Description
1 L1 18WT/LG BACKUP LAMP CONTROL OUTPUT
2 - -
3 - -
4 - -
5 - -
6 - -
7 L777 18WT/VT PARK LAMP CONTROL OUTPUT
8 A72 20RD/OR ADJUSTABLE PEDALS CONTROL OUTPUT
9 - -
10 - -
11 - -
12 B1 20DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
13 B2 20DG/LB RIGHT REAR WHEEL SPEED SENSOR SUPPLY
14 B3 20DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
15 B4 20DG/GY LEFT REAR WHEEL SPEED SENSOR SUPPLY
16 F923 20PK/YL RUN RELAY CONTROL
17 - -
18 - -
19 - -
20 W12 20BR/OR REAR WIPER RELAY CONTROL
21 L13 20WT/YL HEADLAMP LEVEL SENSOR SIGNAL
22 - -
23 K31 20BR FUEL PUMP RELAY CONTROL
24 K23 20BR/WT APP SIGNAL 1
25 K167 20BR/YL APP SENSOR GROUND 1
26 K29 20WT/BR APP SIGNAL 2
27 K400 20BR/VT APP SENSOR GROUND 2
28 K107 20VT/WT ESM SIGNAL
29 - -
30 L239 20WT/DG REAR FOG LAMP RELAY CONTROL
31 W17 18BR/LG REAR WIPER PARK SWITCH SENSE
32 - -
33 - -
34 - -
35 - -
36 - -
37 - -
38 - -
39 - -
40 - -
41 - -
42 - -
43 - -
Component Location - 51
Component Location - 52
Connector:
Name : C105
Color : GREEN
# of pins : 43
Qualifier : (SRT8)
Gender : MALE
Pin Circuit Description
1 L1 20WT/LG BACKUP LAMP CONTROL OUTPUT
Pin Circuit Description
1 L1 20WT/LG BACKUP LAMP CONTROL OUTPUT
2 - -
3 - -
4 - -
5 - -
6 - -
7 L777 20WT/VT PARK LAMP CONTROL OUTPUT
8 A72 20RD/OR ADJUSTABLE PEDALS CONTROL OUTPUT
9 - -
10 - -
11 - -
12 B1 20DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
13 B2 20DG/LB RIGHT REAR WHEEL SPEED SENSOR SUPPLY
14 B3 20DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
15 B4 20DG/GY LEFT REAR WHEEL SPEED SENSOR SUPPLY
16 F923 20PK/YL RUN RELAY CONTROL
17 - -
18 - -
19 - -
20 W12 20BR/OR REAR WIPER RELAY CONTROL
21 L13 20WT/YL HEADLAMP LEVEL SENSOR SIGNAL
22 - -
23 K31 20BR FUEL PUMP RELAY CONTROL
24 K23 20BR/WT APP SIGNAL 1
25 K167 20BR/YL APP SENSOR GROUND 1
26 K29 20WT/BR APP SIGNAL 2
27 K400 20BR/VT APP SENSOR GROUND 2
28 K107 20VT/WT ESM SIGNAL
29 - -
30 L239 20WT/DG REAR FOG LAMP RELAY CONTROL
31 W17 18BR/LG REAR WIPER PARK SWITCH SENSE
32 - -
33 - -
34 - -
35 - -
36 - -
37 - -
38 - -
39 - -
40 - -
41 - -
42 - -
43 - -
Component Location - 51
Component Location - 52
