C107

Component ID: 31
Component : C107

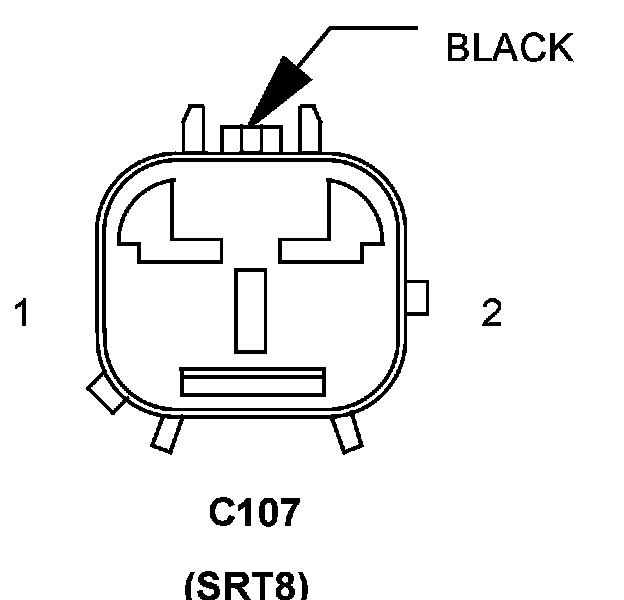

Connector:
Name : C107
Color : BLACK
# of pins : 2
Qualifier : (SRT8)
Gender : FEMALE




Pin Circuit Description
1 K21 20DB/LG IAT SIGNAL
2 K900 20DB/DG SENSOR GROUND

Component Location - 27

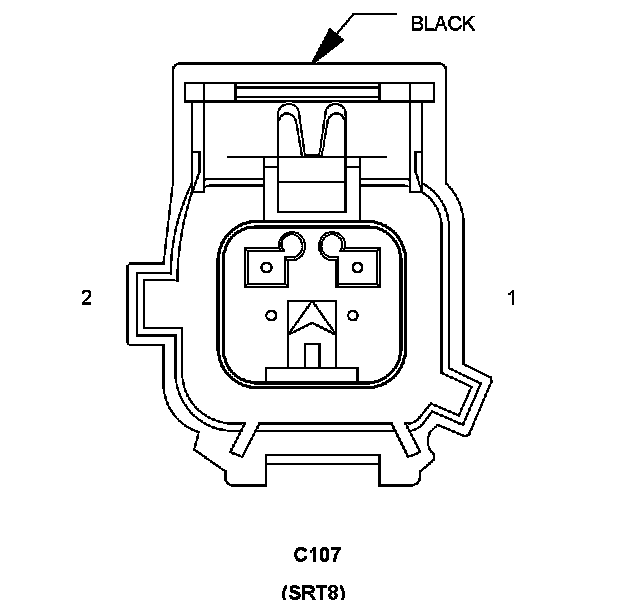

Connector:
Name : C107
Color : BLACK
# of pins : 2
Qualifier : (SRT8)
Gender : MALE




Pin Circuit Description
1 K21 20DB/LG IAT SIGNAL
2 K900 20DB/DG SENSOR GROUND

Component Location - 27
