C202

Component ID: 34
Component : C202

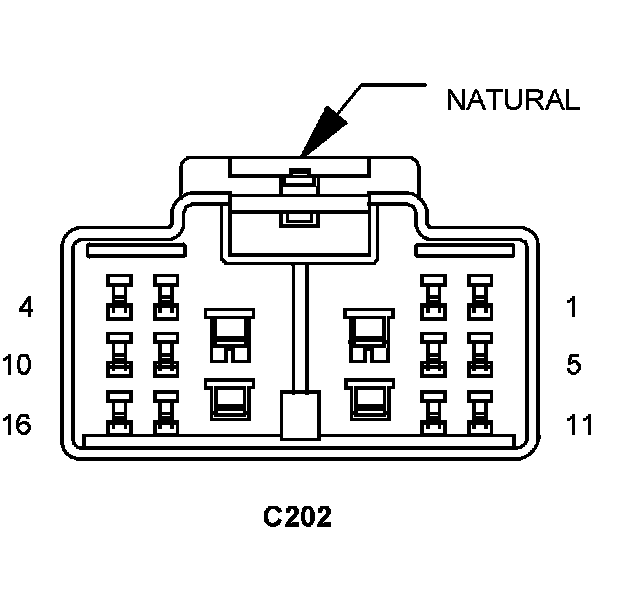

Connector:
Name : C202
Color : NATURAL
# of pins : 16
Gender : FEMALE




Pin Circuit Description
1 C55 20DB/WT LEFT BLEND DOOR COMMON DRIVER
2 C255 20WT/DB LEFT BLEND DOOR DRIVER
3 C52 20DB/LG RIGHT BLEND DOOR COMMON DRIVER
4 C252 20LG/DB RIGHT BLEND DOOR DRIVER
5 C66 20DB/OR MODE DOOR COMMON DRIVER
6 C266 20OR/DB MODE DOOR DRIVER
7 Z908 12BK GROUND
7 C70 12DB/YL FRONT BLOWER HIGH SPEED
8 C7 12DB FUSED RUN RELAY OUTPUT
9 C68 20DB/YL RECIRCULATION DOOR COMMON DRIVER
10 C268 20YL/DB RECIRCULATION DOOR DRIVER
11 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
12 C121 20DB/DG SENSOR GROUND
13 C73 14DB/VT FRONT BLOWER M2 SPEED
14 C72 14DB/OR FRONT BLOWER M1 SPEED
15 C56 20DB/LB FRONT BLOWER CONTROL
16 C71 16DB/BR FRONT BLOWER LOW SPEED

Component Location - 34




Component Location - 36




Component Location - 37




Component Location - 46






Connector:
Name : C202
Color : NATURAL
# of pins : 16
Gender : MALE




Pin Circuit Description
1 C55 22DB/WT LEFT BLEND DOOR COMMON DRIVER
2 C255 22WT/DB LEFT BLEND DOOR DRIVER
3 C52 22DB/LG RIGHT BLEND DOOR COMMON DRIVER
4 C252 22LG/DB RIGHT BLEND DOOR DRIVER
5 C66 22DB/OR MODE DOOR COMMON DRIVER
6 C266 22OR/DB MODE DOOR DRIVER
7 Z908 12BK/RD GROUND
7 C70 12DB/YL FRONT BLOWER HIGH SPEED
8 C7 12DB FUSED RUN RELAY OUTPUT
9 C68 22DB/YL RECIRCULATION DOOR COMMON DRIVER
10 C268 22YL/DB RECIRCULATION DOOR DRIVER
11 C21 22DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
12 C121 22DB/DG SENSOR GROUND
13 C73 14DB/VT FRONT BLOWER M2 SPEED
14 C72 16DB/OR FRONT BLOWER M1 SPEED
15 C56 22DB/LB FRONT BLOWER CONTROL
16 C71 18DB/BR FRONT BLOWER LOW SPEED

Component Location - 34




Component Location - 36




Component Location - 37




Component Location - 46
