C204

Component ID: 36
Component : C204

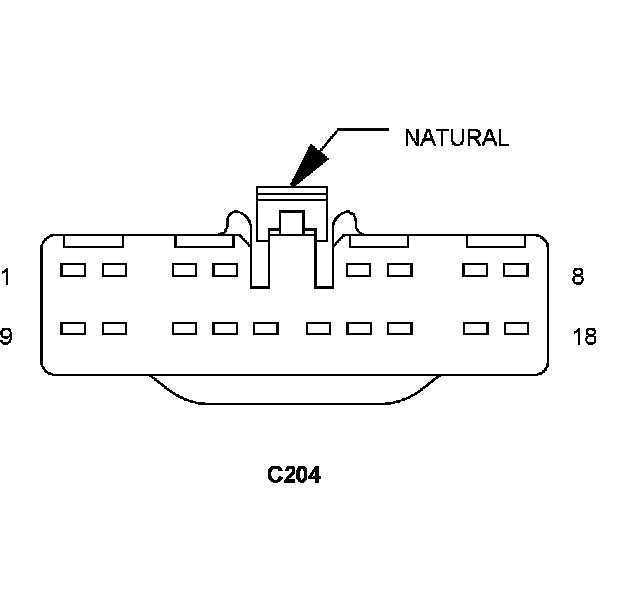

Connector:
Name : C204
Color : NATURAL
# of pins : 18
Gender : FEMALE




Pin Circuit Description
1 - -
2 M24 18YL/WT COURTESY LAMPS DRIVER
2 M24 20YL/WT COURTESY LAMPS DRIVER
3 M27 18YL/LB READING/RAIL LAMPS DRIVER
3 M27 20YL/LB READING/RAIL LAMPS DRIVER
4 Z909 16BK/LG GROUND
5 A117 20RD/DG FUSED B(+) (I.O.D.)
6 F880 20PK FUSED ACCESSORY DELAY RELAY OUTPUT
6 F880 20PK/DG FUSED ACCESSORY DELAY RELAY OUTPUT
7 D54 20WT CAN B BUS (-)
8 D55 20WT/OR CAN B BUS (+)
9 D777 20WT/DG PARK ASSIST DISPLAY SIGNAL
10 X777 20DG/GY PARK ASSIST DISPLAY SUPPLY
10 A932 18RD FUSED B(+)
11 X13 16DG/GY FUSED B(+) (I.O.D.)
12 Z171 20GY/BK PARK ASSIST DISPLAY GROUND
13 - -
14 G460 20DG/VT INTRUSION RECEIVER SENSOR SIGNAL
15 G946 20LG/VT INTRUSION RECEIVER SENSOR GROUND
16 - -
17 A931 18RD/WT FUSED B(+)
18 A930 18RD/LG FUSED B(+)

Component Location - 68




Component Location - 36




Component Location - 38




Component Location - 48

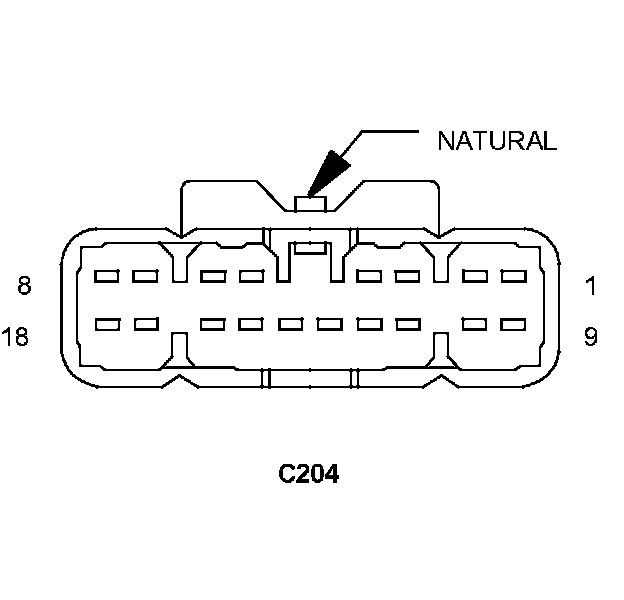

Connector:
Name : C204
Color : NATURAL
# of pins : 18
Gender : MALE




Pin Circuit Description
1 E12 20OR/GY PANEL LAMPS DRIVER
2 M24 18YL/WT COURTESY LAMPS DRIVER
3 M27 20YL/LB READING/RAIL LAMPS DRIVER
4 Z909 16BK/LG GROUND
5 A117 20RD/DG FUSED B(+) (I.O.D.)
6 - -
7 D54 20WT CAN B BUS (-)
8 D55 20WT/OR CAN B BUS (+)
9 D777 20WT/DG PARK ASSIST DISPLAY SIGNAL
10 X777 20DG/GY PARK ASSIST DISPLAY SUPPLY
10 A932 18RD FUSED B(+)
11 X13 16DG/GY FUSED B(+) (I.O.D.)
12 Z171 20GY/BK PARK ASSIST DISPLAY GROUND
13 - -
14 G460 20DG/VT INTRUSION RECEIVER SENSOR SIGNAL
15 G946 20LG/VT INTRUSION RECEIVER SENSOR GROUND
16 - -
17 A931 18RD/WT FUSED B(+)
18 A930 18RD/LG FUSED B(+)

Component Location - 68




Component Location - 36




Component Location - 38




Component Location - 48
