C205

Component ID: 37
Component : C205

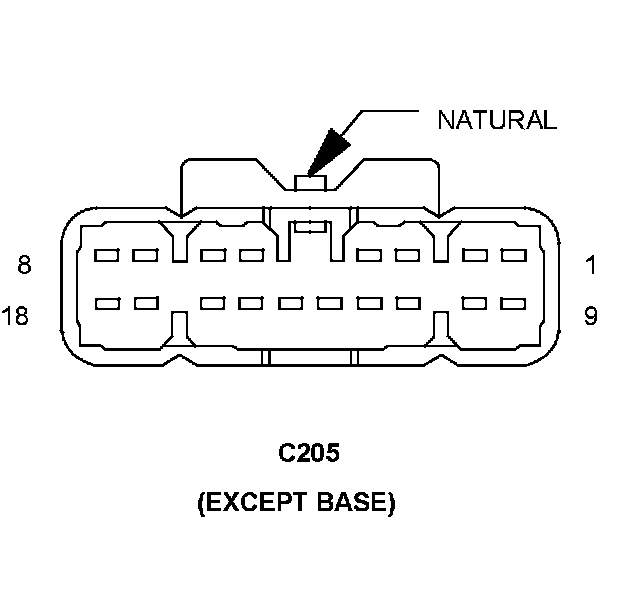

Connector:
Name : C205
Color : NATURAL
# of pins : 18
Qualifier : (EXCEPT BASE)
Gender : FEMALE




Pin Circuit Description
1 F880 20BK/PK FUSED ACCESSORY DELAY RELAY OUTPUT
2 D54 20BK CAN B BUS (-)
3 D55 20BK/WT CAN B BUS (+)
4 F23 20BK/RD IGNITION RUN-START OUTPUT
5 L1 18BK/TN BACKUP LAMP CONTROL OUTPUT
6 P112 20BK/LB AUTO DAY/NIGHT MIRROR (+)
7 X835 20BK/OR SENSOR GROUND
8 - -
9 P114 20BK/DB AUTO DAY/NIGHT MIRROR (-)
10 Z909 20BK/LG GROUND
11 X712 20BK/DG MICROPHONE 1 IN (+)
12 X722 20BK/BR MICROPHONE 2 IN (+)
13 X792 20BK/YL MICROPHONE IN (-)
14 X793 20BK/GY MICROPHONE FEED
15 - -
16 - -
17 - -
18 - -

Component Location - 35




Component Location - 36




Component Location - 37




Component Location - 49

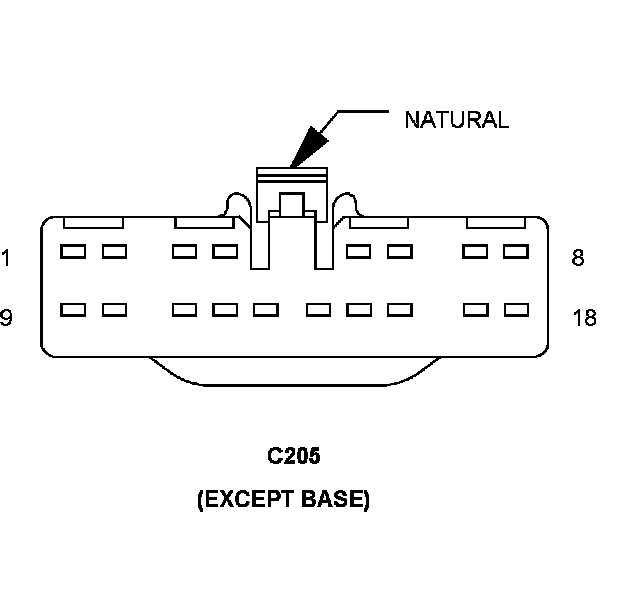

Connector:
Name : C205
Color : NATURAL
# of pins : 18
Qualifier : (EXCEPT BASE)
Gender : MALE




Pin Circuit Description
1 F880 20PK/DG FUSED ACCESSORY DELAY RELAY OUTPUT
2 D54 20WT CAN B BUS (-)
3 D55 20WT/OR CAN B BUS (+)
4 F23 20RD/OR IGNITION RUN-START OUTPUT
5 L1 18WT/LG BACKUP LAMP CONTROL OUTPUT
6 P112 20TN/OR AUTO DAY/NIGHT MIRROR (+)
7 X835 20OR/GY SENSOR GROUND
8 - -
9 P114 20TN/WT AUTO DAY/NIGHT MIRROR (-)
10 Z909 20BK/LG GROUND
11 X712 20DG/LB MICROPHONE 1 IN (+)
12 X722 20LB/DG MICROPHONE 2 IN (+)
13 X792 20GY MICROPHONE IN (-)
14 X793 20DG/YL MICROPHONE FEED
15 - -
16 - -
17 - -
18 - -

Component Location - 35




Component Location - 36




Component Location - 37




Component Location - 49
