C206

Component ID: 38
Component : C206

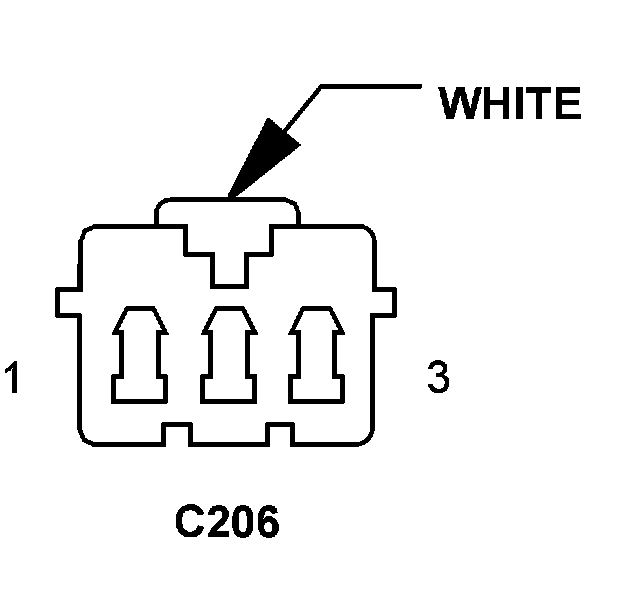

Connector:
Name : C206
Color : WHITE
# of pins : 3
Gender : FEMALE




Pin Circuit Description
1 D500 20WT LIN BUS
2 D501 20WT/LG LIN SLAVE RETURN
3 D502 20WT/OR LIN SLAVE FEED

Component Location - 41

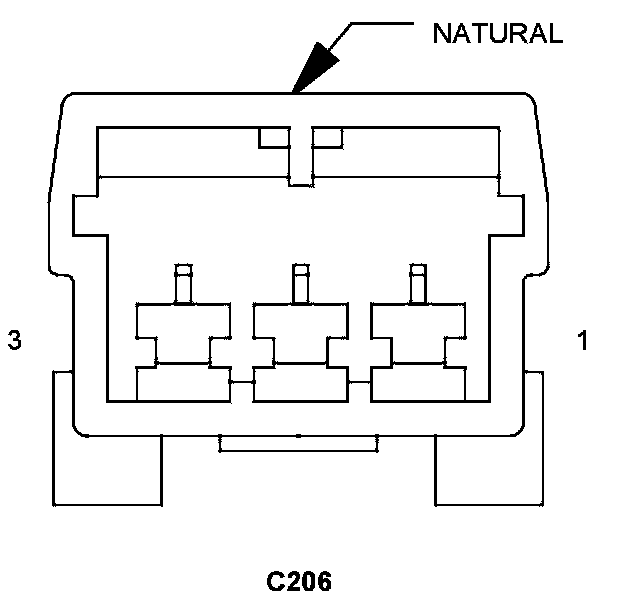

Connector:
Name : C206
Color : NATURAL
# of pins : 3
Gender : MALE




Pin Circuit Description
1 D500 20WT LIN BUS
2 D501 20WT/LG LIN SLAVE RETURN
3 D502 20WT/OR LIN SLAVE FEED

Component Location - 41
