C207

Component ID: 39
Component : C207

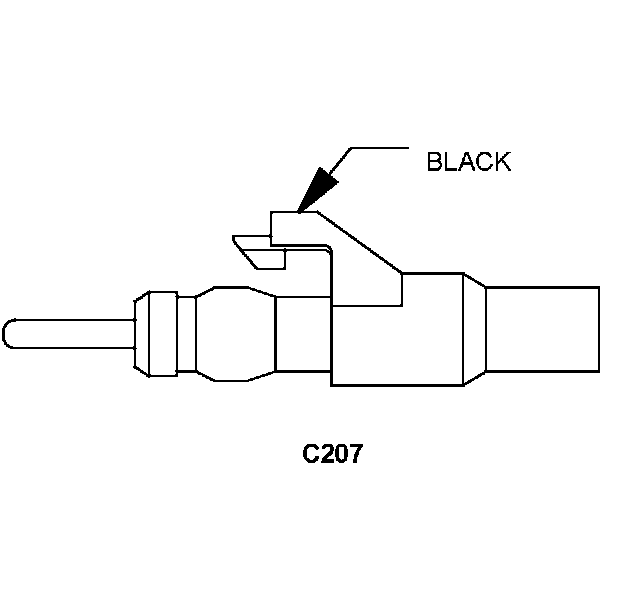

Connector:
Name : C207
Color : BLACK
# of pins : 2
Gender : FEMALE




Pin Circuit Description
1 D5 6WT/OR RADIO ANTENNA SIGNAL
2 D931 WT/YL RADIO ANTENNA SHIELD

Component Location - 36




Component Location - 38




Component Location - 52




Component Location - 53




Component Location - 46

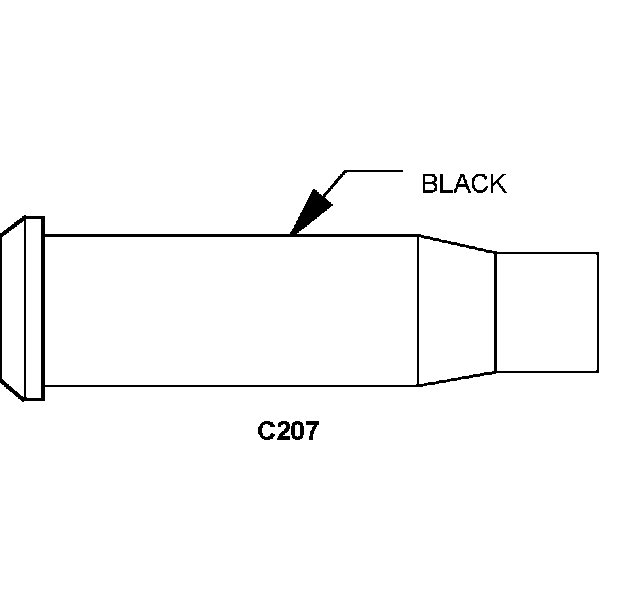

Connector:
Name : C207
Color : BLACK
# of pins : 2
Gender : MALE




Pin Circuit Description
1 D5 6WT/OR RADIO ANTENNA SIGNAL
2 D931 WT/YL RADIO ANTENNA SHIELD

Component Location - 36




Component Location - 38




Component Location - 52




Component Location - 53




Component Location - 46
