C208

Component ID: 40
Component : C208

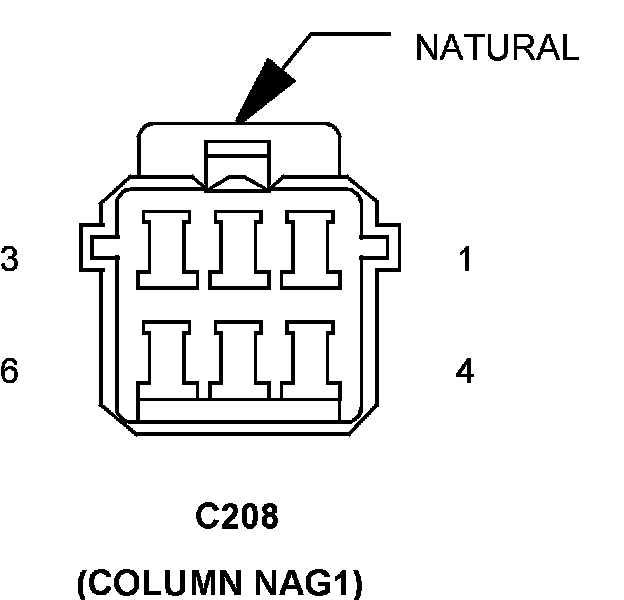

Connector:
Name : C208
Color : NATURAL
# of pins : 6
Qualifier : (COLUMN NAG1)
Gender : FEMALE




Pin Circuit Description
1 - -
2 Z910 20BK/WT GROUND
3 F902 20PK IGNITION OFF-RUN-START
4 K321 20BR/YL BTSI CONTROL
5 D65 20WT/BK CAN C BUS (+)
6 D64 20WT/LB CAN C BUS (-)



Connector:
Name : C208
Color : NATURAL
# of pins : 6
Qualifier : (COLUMN NAG1)
Gender : MALE




Pin Circuit Description
1 - -
2 Z910 22BK GROUND
3 F902 22LB IGNITION OFF-RUN-START
4 K321 22YL BTSI CONTROL
5 D65 22LG/BK CAN C BUS (+)
6 D64 22GY CAN C BUS (-)
