C209

Component ID: 41
Component : C209

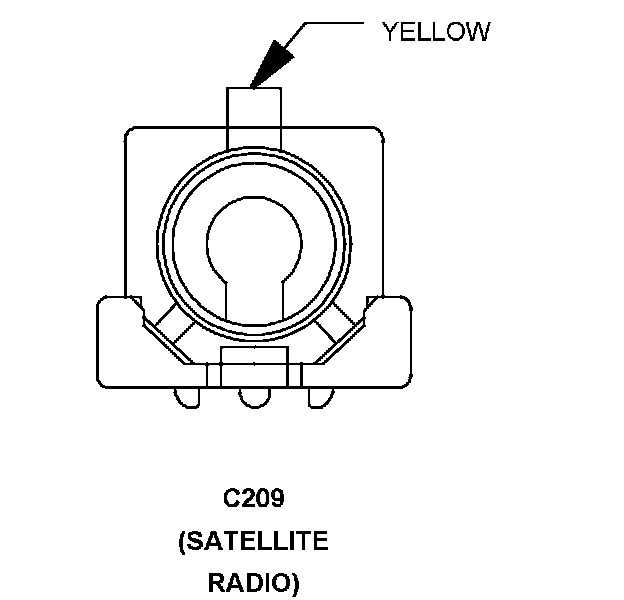

Connector:
Name : C209
Color : YELLOW
# of pins : 2
Qualifier : (SATELLITE RADIO)
Gender : FEMALE




Pin Circuit Description
1 D106 12BK SATELLITE RADIO ANTENNA SIGNAL 1
2 D126 BK SATELLITE RADIO ANTENNA SHIELD 1

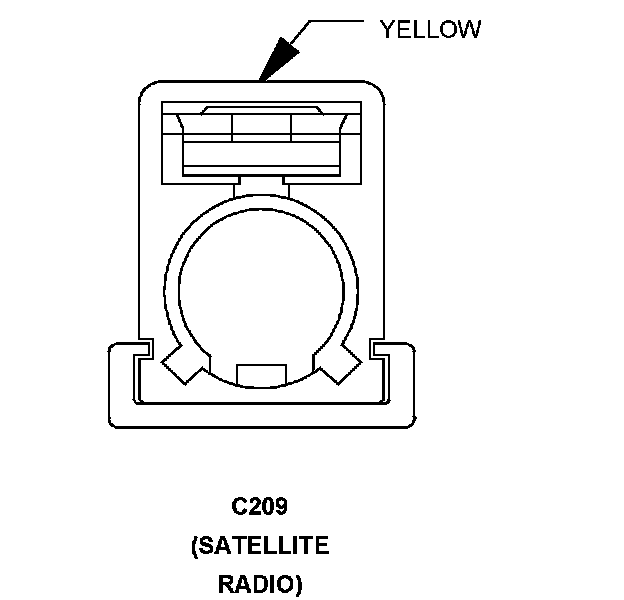

Connector:
Name : C209
Color : YELLOW
# of pins : 2
Qualifier : (SATELLITE RADIO)
Gender : MALE




Pin Circuit Description
1 D106 12BK SATELLITE RADIO ANTENNA SIGNAL 1
2 D126 BK SATELLITE RADIO ANTENNA SHIELD 1
