C210

Component ID: 42
Component : C210

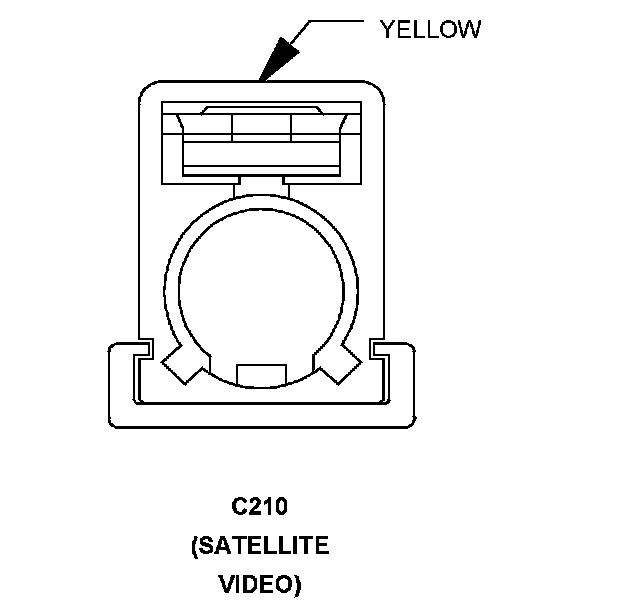

Connector:
Name : C210
Color : YELLOW
# of pins : 2
Qualifier : (SATELLITE VIDEO)
Gender : FEMALE




Pin Circuit Description
1 D128 12BK SATELLITE VIDEO ANTENNA SIGNAL 1
2 D141 BK SATELLITE VIDEO ANTENNA SHIELD 1

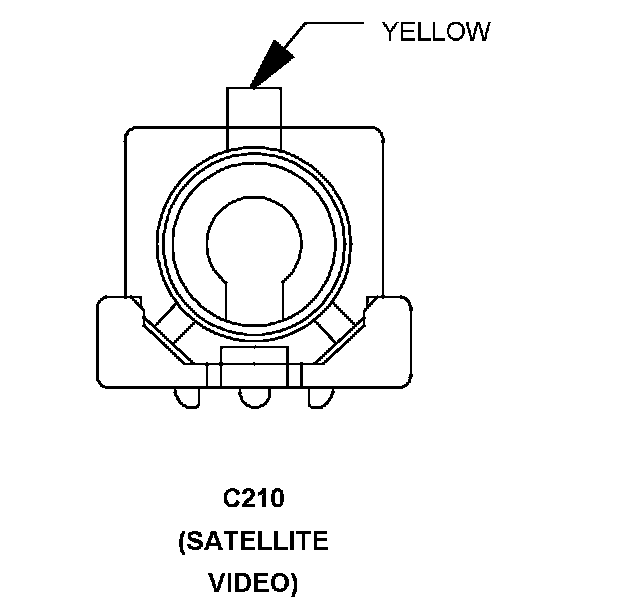

Connector:
Name : C210
Color : YELLOW
# of pins : 2
Qualifier : (SATELLITE VIDEO)
Gender : MALE




Pin Circuit Description
1 D128 12BK SATELLITE VIDEO ANTENNA SIGNAL 1
2 D141 BK SATELLITE VIDEO ANTENNA SHIELD 1
