C300

Component ID: 43
Component : C300

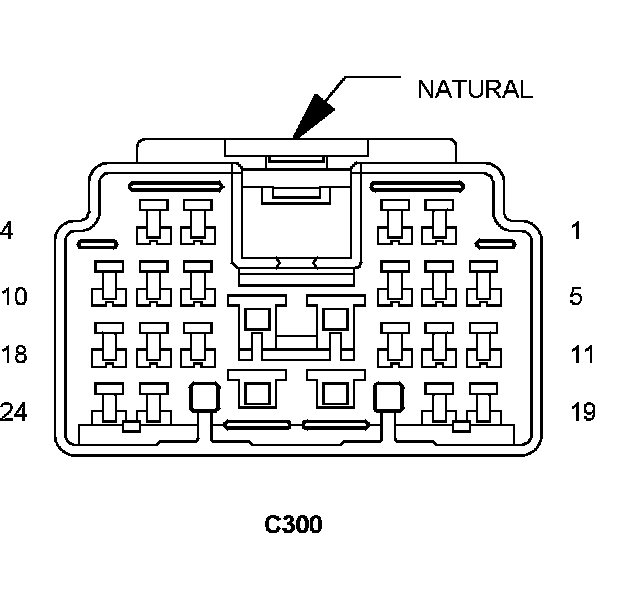

Connector:
Name : C300
Color : NATURAL
# of pins : 24
Gender : FEMALE




Pin Circuit Description
1 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
2 C110 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 C110 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 C16 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 C16 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
3 A913 20RD/GY FUSED B(+)
3 A913 20RD/GY FUSED B(+)
4 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
5 G75 22VT DRIVER DOOR AJAR SWITCH SENSE
5 G75 20VT DRIVER DOOR AJAR SWITCH SENSE
6 G167 20VT/LB DRIVER DOOR LOCK SWITCH RETURN
7 G161 22VT/DG DRIVER DOOR LOCK SWITCH MUX
7 G161 20VT/DG DRIVER DOOR LOCK SWITCH MUX
8 M24 18YL/WT COURTESY LAMPS DRIVER
9 E12 20OR/GY PANEL LAMPS DRIVER
9 D55 20WT/OR CAN B BUS (+)
10 Q26 14OR/GY MASTER WINDOW SWITCH PASSENGER (DOWN)
10 D54 20WT CAN B BUS (-)
11 X201 18GY/VT LEFT FRONT DOOR SPEAKER (+)
11 X201 18GY/VT AMPLIFIED LEFT FRONT DOOR SPEAKER (+)
11 X202 18DG/VT RIGHT FRONT DOOR SPEAKER (+)
11 X202 18DG/VT AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
12 X291 18GY/YL LEFT FRONT DOOR SPEAKER (-)
12 X292 18DG/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)
12 X291 18GY/YL AMPLIFIED LEFT FRONT DOOR SPEAKER (-)
12 X292 18DG/YL RIGHT FRONT DOOR SPEAKER (-)
13 F880 22PK/DG FUSED ACCESSORY DELAY RELAY OUTPUT
13 F880 20PK/DG FUSED ACCESSORY DELAY RELAY OUTPUT
14 Z912 14BK/OR GROUND
15 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
16 P1 22TN/LG DRIVER DOOR UNLOCK DRIVER
16 P1 20TN/LG DRIVER DOOR UNLOCK DRIVER
17 P72 20TN/GY PASSENGER MIRROR VERTICAL DRIVER
17 P112 20TN/OR AUTO DAY/NIGHT MIRROR (+)
17 P699 20LG/DG POWER FOLDING MIRROR DRIVER
18 P74 20TN/OR PASSENGER MIRROR HORIZONTAL DRIVER
18 P114 20TN/WT AUTO DAY/NIGHT MIRROR (-)
18 P110 20LG/WT POWER FOLDING MIRROR RETURN
19 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
20 P393 22LG DOOR LOCK DRIVER
20 P393 20LG DOOR LOCK DRIVER
21 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
22 F881 14PK FUSED ACCESSORY DELAY RELAY OUTPUT
23 P76 22TN/LB MIRROR COMMON DRIVER
24 Q16 14OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
24 E12 20OR/GY PANEL LAMPS DRIVER

Component Location - 62




Component Location - 50




Component Location - 53

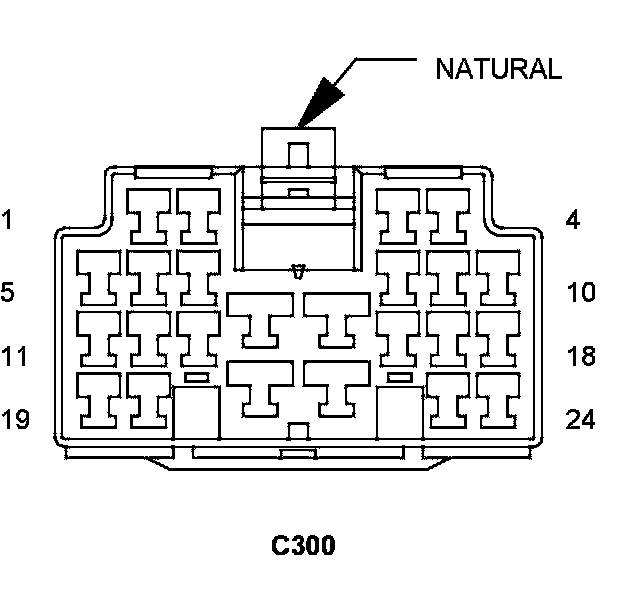

Connector:
Name : C300
Color : NATURAL
# of pins : 24
Gender : MALE




Pin Circuit Description
1 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
2 C110 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
3 A913 20RD/GY FUSED B(+)
4 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
5 G75 22VT DRIVER DOOR AJAR SWITCH SENSE
6 G167 22VT/LB DRIVER DOOR LOCK SWITCH RETURN
7 G161 22VT/DG DRIVER DOOR LOCK SWITCH MUX
8 M24 20YL/WT COURTESY LAMPS DRIVER
9 D55 22WT/OR CAN B BUS (+)
9 E12 20OR/GY PANEL LAMPS DRIVER
10 Q26 14OR/GY MASTER WINDOW SWITCH PASSENGER (DOWN)
10 D54 22WT CAN B BUS (-)
11 X201 18GY/VT LEFT FRONT DOOR SPEAKER (+)
11 X201 18GY/VT AMPLIFIED LEFT FRONT DOOR SPEAKER (+)
11 X202 18DG/VT RIGHT FRONT DOOR SPEAKER (+)
11 X202 18DG/VT AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
12 X291 18GY/YL LEFT FRONT DOOR SPEAKER (-)
12 X291 18GY/YL AMPLIFIED LEFT FRONT DOOR SPEAKER (-)
12 X292 18DG/YL RIGHT FRONT DOOR SPEAKER (-)
12 X292 18DG/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)
13 F880 22PK/DG FUSED ACCESSORY DELAY RELAY OUTPUT
14 Z912 14BK/OR GROUND
15 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
16 P1 22TN/LG DRIVER DOOR UNLOCK DRIVER
17 P72 20TN/GY PASSENGER MIRROR VERTICAL DRIVER
17 P112 22TN/OR AUTO DAY/NIGHT MIRROR (+)
17 P699 20LG/DG POWER FOLDING MIRROR DRIVER
18 P74 20TN/OR PASSENGER MIRROR HORIZONTAL DRIVER
18 P114 22TN/WT AUTO DAY/NIGHT MIRROR (-)
18 P110 20LG/WT POWER FOLDING MIRROR RETURN
19 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
20 P393 22LG DOOR LOCK DRIVER
21 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
22 F881 14PK FUSED ACCESSORY DELAY RELAY OUTPUT
23 P76 20TN/LB MIRROR COMMON DRIVER
24 Q16 14OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
24 E12 20OR/GY PANEL LAMPS DRIVER

Component Location - 62




Component Location - 50




Component Location - 53
