C302

Component ID: 45
Component : C302

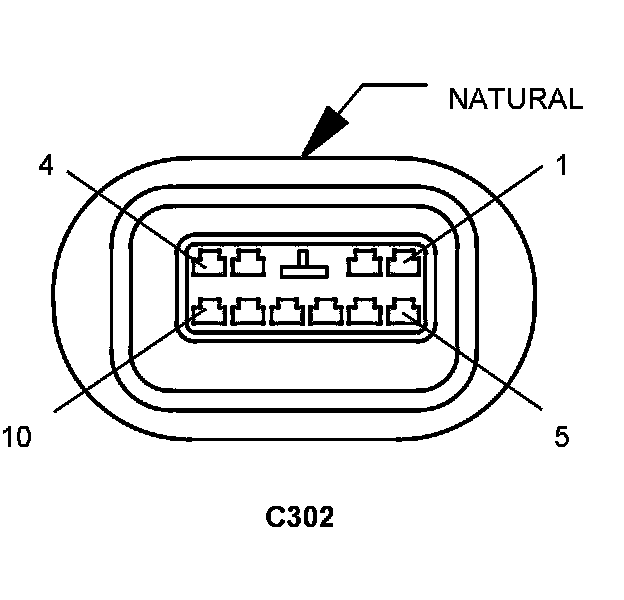

Connector:
Name : C302
Color : NATURAL
# of pins : 10
Gender : FEMALE




Pin Circuit Description
1 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
2 - -
3 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
4 E12 20OR/GY PANEL LAMPS DRIVER
5 G77 22VT/GY LEFT REAR DOOR AJAR SWITCH SENSE
5 G77 20VT/GY LEFT REAR DOOR AJAR SWITCH SENSE
6 Z912 20BK/OR GROUND
7 P303 22TN PASSENGER DOOR UNLOCK DRIVER
7 P303 20TN PASSENGER DOOR UNLOCK DRIVER
8 P393 22LG DOOR LOCK DRIVER
8 P393 20LG DOOR LOCK DRIVER
9 - -
10 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)

Component Location - 63




Component Location - 59

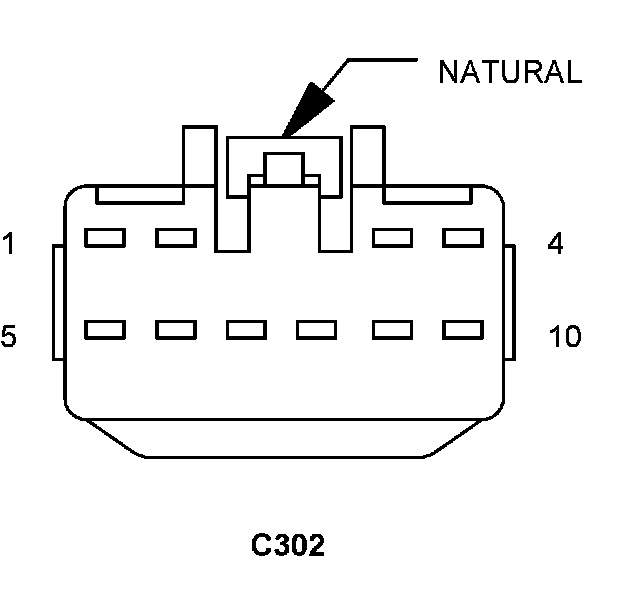

Connector:
Name : C302
Color : NATURAL
# of pins : 10
Gender : MALE




Pin Circuit Description
1 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
2 - -
3 Q411 14OR/LB MASTER WINDOW SWITCH LEFT REAR (UP)
4 E12 20OR/GY PANEL LAMPS DRIVER
5 G77 22VT/YL LEFT REAR DOOR AJAR SWITCH SENSE
6 Z912 22BK/WT GROUND
6 Z912 20BK/WT GROUND
7 P303 22TN PASSENGER DOOR UNLOCK DRIVER
8 P393 22LG/DB DOOR LOCK DRIVER
9 - -
10 Q611 14OR/DB MASTER WINDOW SWITCH LEFT REAR (DOWN)

Component Location - 63




Component Location - 59
