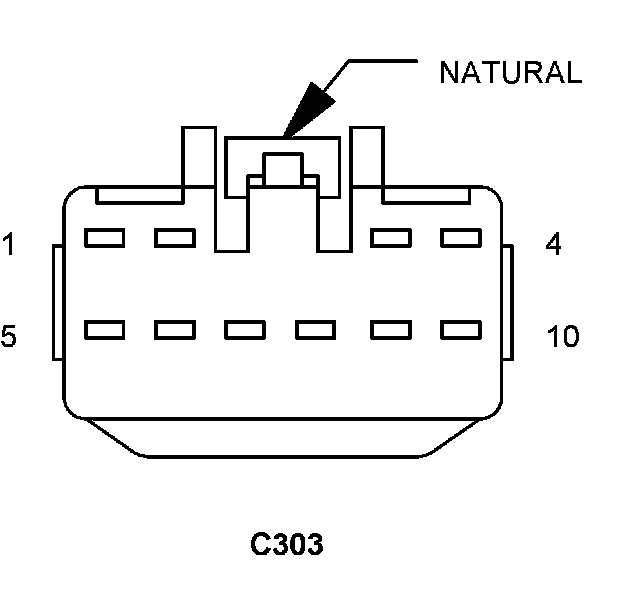

C303

Component ID: 46
Component : C303

Connector:
Name : C303
Color : NATURAL
# of pins : 10
Gender : FEMALE




Pin Circuit Description
1 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
2 - -
3 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
4 E12 20OR/GY PANEL LAMPS DRIVER
5 G76 22VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
5 G76 20VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
6 Z911 20BK/WT GROUND
7 P303 22TN PASSENGER DOOR UNLOCK DRIVER
7 P303 20TN PASSENGER DOOR UNLOCK DRIVER
8 P392 22LG/DB DOOR LOCK DRIVER
8 P392 20LG/DB DOOR LOCK DRIVER
9 - -
10 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)

Component Location - 63




Component Location - 60






Connector:
Name : C303
Color : NATURAL
# of pins : 10
Gender : MALE




Pin Circuit Description
1 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
2 - -
3 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
4 E12 20OR/GY PANEL LAMPS DRIVER
5 G76 22VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
6 Z911 22BK/WT GROUND
6 Z911 20BK/WT GROUND
7 P303 22TN PASSENGER DOOR UNLOCK DRIVER
8 P392 22LG/DB DOOR LOCK DRIVER
9 - -
10 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)

Component Location - 63




Component Location - 60
