C304

Component ID: 47

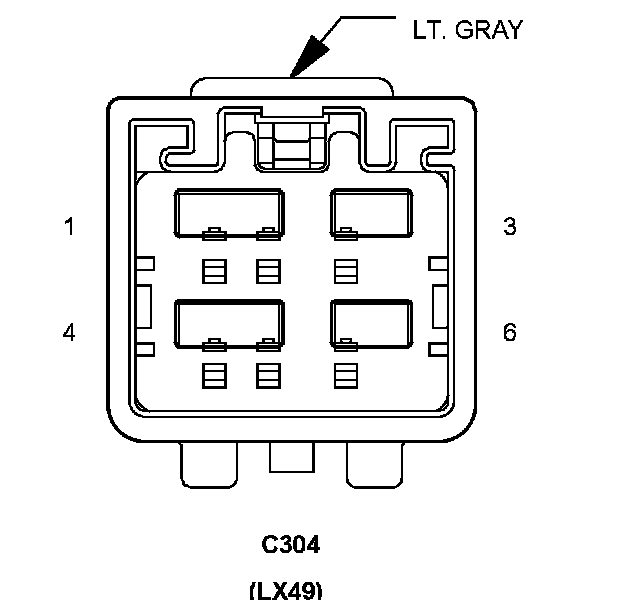

Component : C304

Connector:
Name : C304
Color : LT. GRAY
# of pins : 6
Qualifier : (LX49)
Gender : FEMALE




Pin Circuit Description
1 C15 14DB/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 W13 16BR/LG REAR WIPER MOTOR CONTROL
3 W17 18BR/LG REAR WIPER PARK SWITCH SENSE
4 L53 20DG/WT BRAKE LAMP RELAY OUTPUT
5 Z911 20BK/WT GROUND
6 Z911 14BK/WT GROUND

Component Location - 80






Connector:
Name : C304
Color : LT. GRAY
# of pins : 6
Qualifier : (LX49)
Gender : MALE




Pin Circuit Description
1 C15 14DB/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 W13 16BR/LG REAR WIPER MOTOR CONTROL
3 W17 20BR/YL REAR WIPER PARK SWITCH SENSE
4 L53 20DG/WT BRAKE LAMP RELAY OUTPUT
5 Z911 20BK/WT GROUND
5 Z911 20BK/WT GROUND
6 Z911 14BK/GY GROUND

Component Location - 80
