C305

Component ID: 48
Component : C305

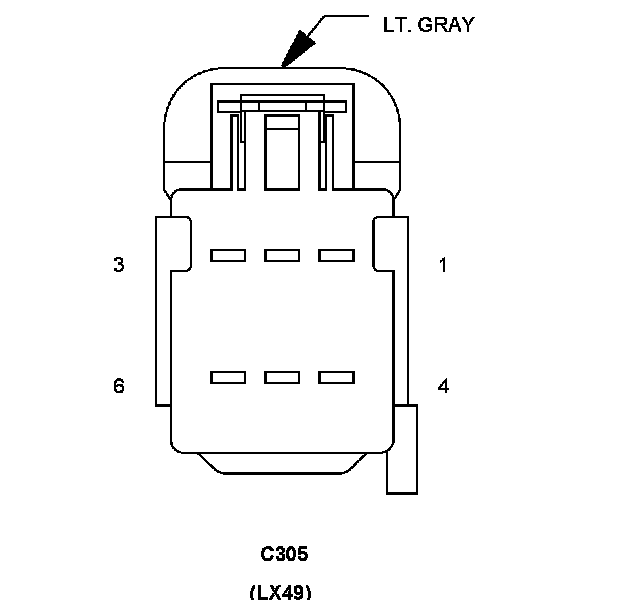

Connector:
Name : C305
Color : LT. GRAY
# of pins : 6
Qualifier : (LX49)
Gender : FEMALE




Pin Circuit Description
1 - -
2 G25 20VT/TN DECKLID/LIFTGATE RELEASE SWITCH SENSE
3 G78 20VT/OR DECKLID/LIFTGATE AJAR SWITCH SENSE
4 M24 18YL/WT COURTESY LAMPS DRIVER
5 P31 20TN/YL DECKLID/LIFTGATE RELEASE DRIVER
6 Z914 16BK/GY GROUND

Component Location - 80

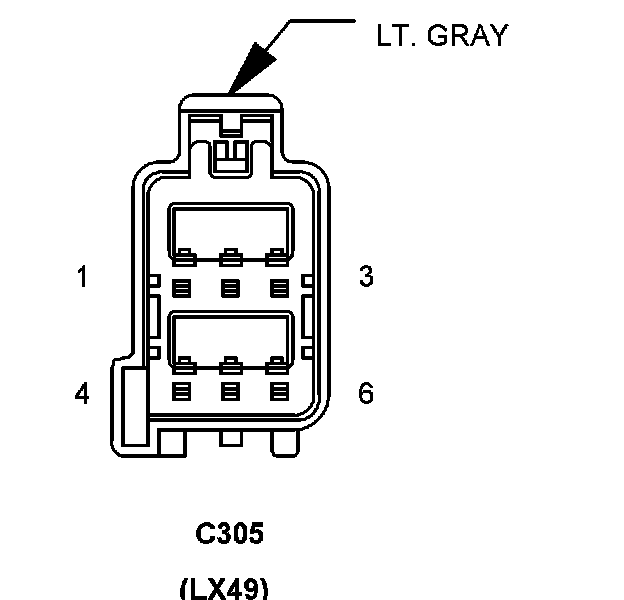

Connector:
Name : C305
Color : LT. GRAY
# of pins : 6
Qualifier : (LX49)
Gender : MALE




Pin Circuit Description
1 - -
2 G25 20VT/TN DECKLID/LIFTGATE RELEASE SWITCH SENSE
3 G78 20VT/OR DECKLID/LIFTGATE AJAR SWITCH SENSE
4 M24 20YL/WT COURTESY LAMPS DRIVER
5 P31 20TN/YL DECKLID/LIFTGATE RELEASE DRIVER
6 Z914 16BK/GY GROUND

Component Location - 80
