C306
Component ID: 49
Component : C306
Connector:

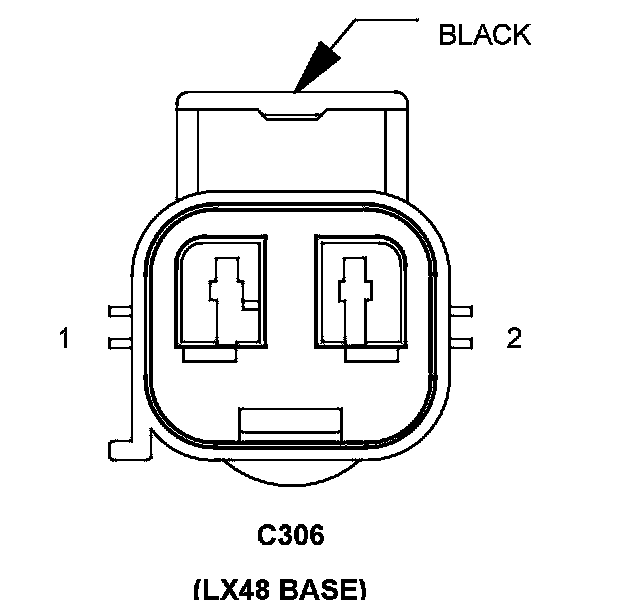

Name : C306
Color : BLACK
# of pins : 2
Qualifier : (LX48 BASE)
Gender : FEMALE
Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
2 Z914 20BK/BR GROUND

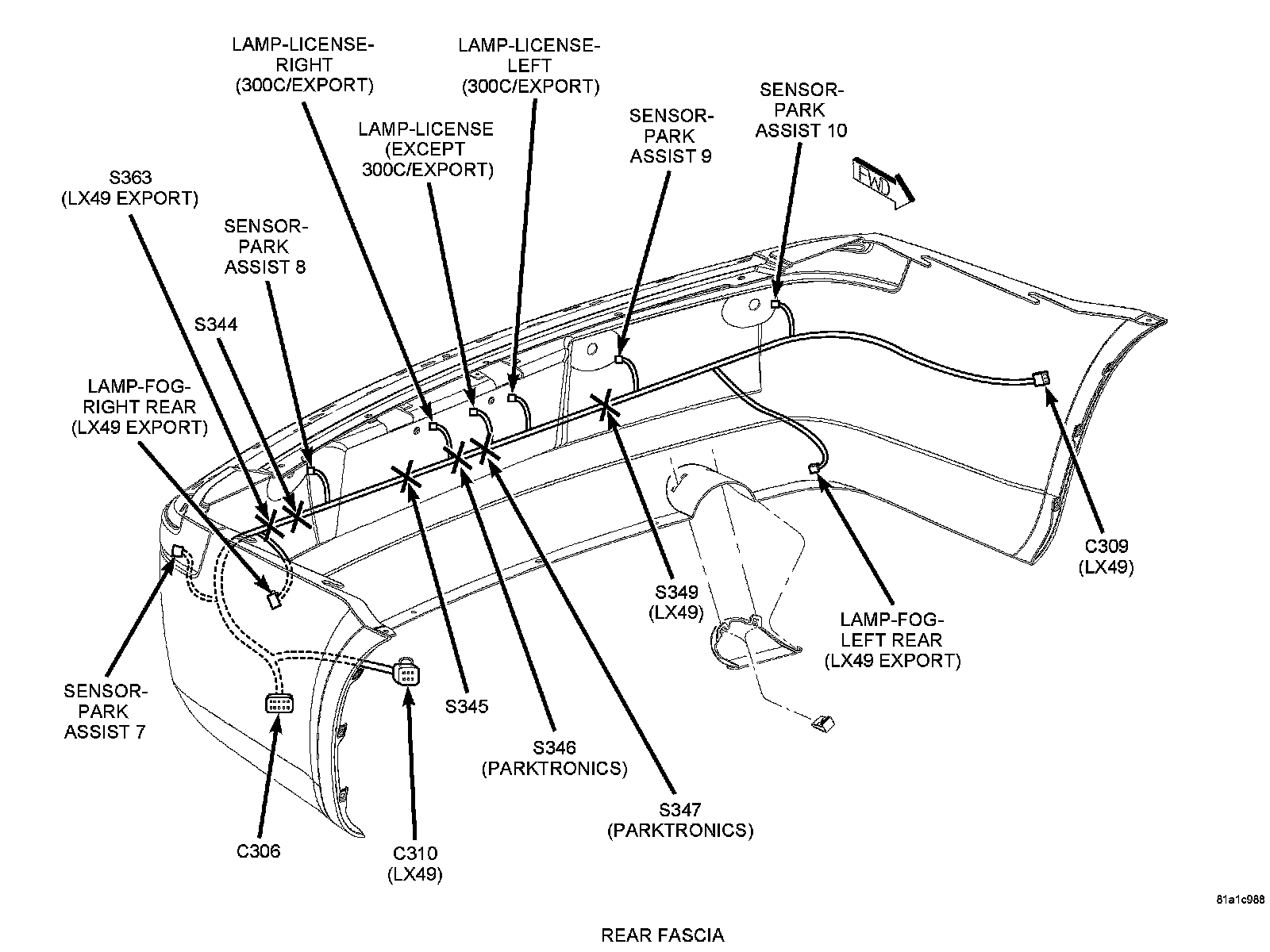

Component Location - 88
Component Location - 77
Component Location - 78
Connector:
Name : C306
Color : BLACK
# of pins : 2
Qualifier : (LX48 BASE)
Gender : MALE
Pin Circuit Description
1 L777 18WT/VT PARK LAMP CONTROL OUTPUT
Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
2 Z914 20BK/GY GROUND
Component Location - 88
Component Location - 77
Component Location - 78

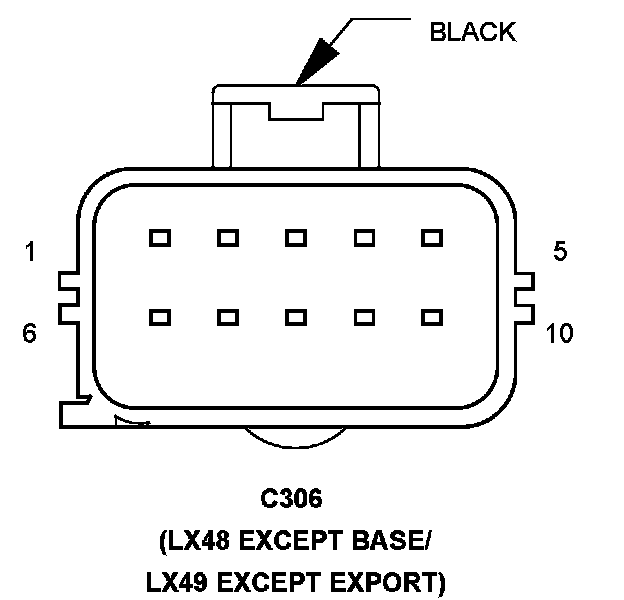

Connector:
Name : C306
Color : BLACK
# of pins : 10
Qualifier : (LX48 EXCEPT BASE/LX49 EXCEPT EXPORT)
Gender : FEMALE
Pin Circuit Description
1 X700 20GY/OR PARK ASSIST SENSOR SUPPLY
Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
2 D701 20WT/LB PARK ASSIST SIGNAL 8
2 Z914 18BK/BR GROUND
3 D700 20WT/GY PARK ASSIST SIGNAL 7
3 L53 20DG/WT BRAKE LAMP RELAY OUTPUT
4 D703 20WT/BK PARK ASSIST SIGNAL 9
4 L1 20WT/LG BACKUP LAMP CONTROL OUTPUT
5 D704 20WT/DB PARK ASSIST SIGNAL 10
5 L62 18WT/YL RIGHT REAR TURN SIGNAL CONTROL
6 X750 20GY/LB PARK ASSIST SENSOR GROUND
6 L63 18WT/DG LEFT REAR TURN SIGNAL CONTROL
7 L777 20WT/VT PARK LAMP CONTROL OUTPUT
8 Z914 20BK/BR GROUND
9 - -
10 - -
Component Location - 88
Component Location - 77
Component Location - 78

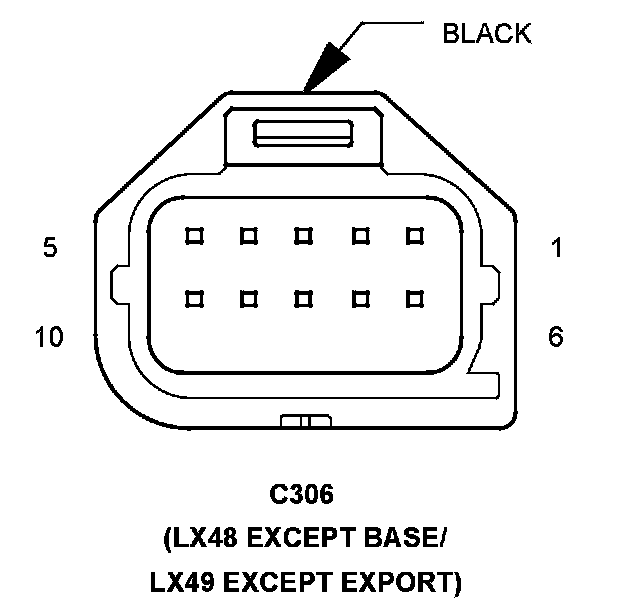

Connector:
Name : C306
Color : BLACK
# of pins : 10
Qualifier : (LX48 EXCEPT BASE/LX49 EXCEPT EXPORT)
Gender : MALE
Pin Circuit Description
1 X700 20GY/OR PARK ASSIST SENSOR SUPPLY
Pin Circuit Description
1 L777 18WT/VT PARK LAMP CONTROL OUTPUT
Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
2 D701 20WT/LB PARK ASSIST SIGNAL 8
2 Z914 16BK/GY GROUND
2 Z914 20BK/GY GROUND
3 D700 20WT/GY PARK ASSIST SIGNAL 7
3 L53 20DG/WT BRAKE LAMP RELAY OUTPUT
4 D703 20WT/BK PARK ASSIST SIGNAL 9
4 L1 18WT/LG BACKUP LAMP CONTROL OUTPUT
4 L1 20WT/LG BACKUP LAMP CONTROL OUTPUT
5 D704 20WT/DB PARK ASSIST SIGNAL 10
5 L62 18WT/YL RIGHT REAR TURN SIGNAL CONTROL
5 L62 20WT/YL RIGHT REAR TURN SIGNAL CONTROL
6 X750 20GY/LB PARK ASSIST SENSOR GROUND
6 L63 18WT/DG LEFT REAR TURN SIGNAL CONTROL
6 L63 20WT/DG LEFT REAR TURN SIGNAL CONTROL
7 L777 18WT/VT PARK LAMP CONTROL OUTPUT
7 L777 20WT/VT PARK LAMP CONTROL OUTPUT
8 Z914 20BK/GY GROUND
9 - -
10 - -
Component Location - 88
Component Location - 77
Component Location - 78

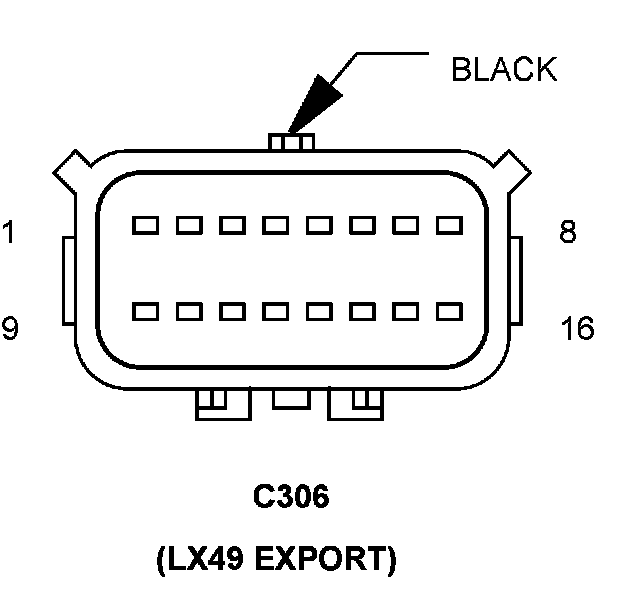

Connector:
Name : C306
Color : BLACK
# of pins : 16
Qualifier : (LX49 EXPORT)
Gender : FEMALE
Pin Circuit Description
1 L777 18WT/VT PARK LAMP CONTROL OUTPUT
Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
2 Z914 20BK/GY GROUND
3 L53 20DG/WT BRAKE LAMP RELAY OUTPUT
4 L1 18WT/LG BACKUP LAMP CONTROL OUTPUT
4 L1 20WT/LG BACKUP LAMP CONTROL OUTPUT
5 L62 18WT/YL RIGHT REAR TURN SIGNAL CONTROL
5 L62 20WT/YL RIGHT REAR TURN SIGNAL CONTROL
6 L63 18WT/DG LEFT REAR TURN SIGNAL CONTROL
6 L63 20WT/DG LEFT REAR TURN SIGNAL CONTROL
7 L90 20WT/OR REAR FOG LAMP RELAY OUTPUT
8 D700 20WT/GY PARK ASSIST SIGNAL 7
9 D701 20WT/LB PARK ASSIST SIGNAL 8
10 D703 20WT/BK PARK ASSIST SIGNAL 9
11 D704 20WT/DB PARK ASSIST SIGNAL 10
12 X700 20GY/OR PARK ASSIST SENSOR SUPPLY
13 X750 20GY/LB PARK ASSIST SENSOR GROUND
14 - -
15 - -
16 - -
Component Location - 88
Component Location - 77
Component Location - 78
Connector:
Name : C306
Color : BLACK
# of pins : 16
Qualifier : (LX49 EXPORT)
Gender : MALE
Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
2 Z914 16BK/BR GROUND
3 L53 20DG/WT BRAKE LAMP RELAY OUTPUT
4 L1 20WT/LG BACKUP LAMP CONTROL OUTPUT
5 L62 18WT/YL RIGHT REAR TURN SIGNAL CONTROL
6 L63 18WT/DG LEFT REAR TURN SIGNAL CONTROL
7 L90 20WT/OR REAR FOG LAMP RELAY OUTPUT
8 D700 20WT/GY PARK ASSIST SIGNAL 7
9 D701 20WT/LB PARK ASSIST SIGNAL 8
10 D703 20WT/BK PARK ASSIST SIGNAL 9
11 D704 20WT/DB PARK ASSIST SIGNAL 10
12 X700 20GY/OR PARK ASSIST SENSOR SUPPLY
13 X750 20GY/LB PARK ASSIST SENSOR GROUND
14 - -
15 - -
16 - -
Component Location - 88
Component Location - 77
Component Location - 78
