C308

Component ID: 51
Component : C308

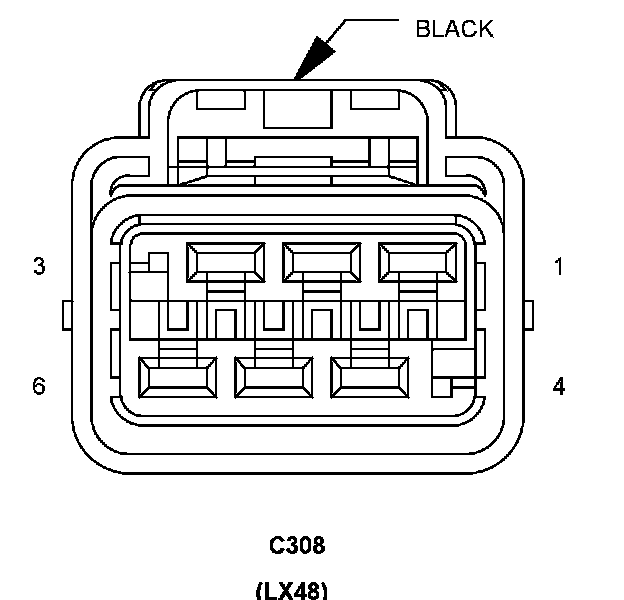

Connector:
Name : C308
Color : BLACK
# of pins : 6
Qualifier : (LX48)
Gender : FEMALE




Pin Circuit Description
1 L777 18WT/VT PARK LAMP CONTROL OUTPUT
Pin Circuit Description
1 L777 18WT/VT PARK LAMP CONTROL OUTPUT
Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
2 Z914 20BK/GY GROUND
3 L62 18WT/YL RIGHT REAR TURN SIGNAL CONTROL
3 L62 20WT/YL RIGHT REAR TURN SIGNAL CONTROL
4 L53 20DG/WT BRAKE LAMP RELAY OUTPUT
5 L1 18WT/LG BACKUP LAMP CONTROL OUTPUT
5 L1 18WT/LG BACKUP LAMP CONTROL OUTPUT
5 L1 20WT/LG BACKUP LAMP CONTROL OUTPUT
5 L1 20WT/LG BACKUP LAMP CONTROL OUTPUT
6 L90 20WT/OR REAR FOG LAMP RELAY OUTPUT
6 L90 20WT/OR REAR FOG LAMP RELAY OUTPUT

Component Location - 87




Component Location - 78

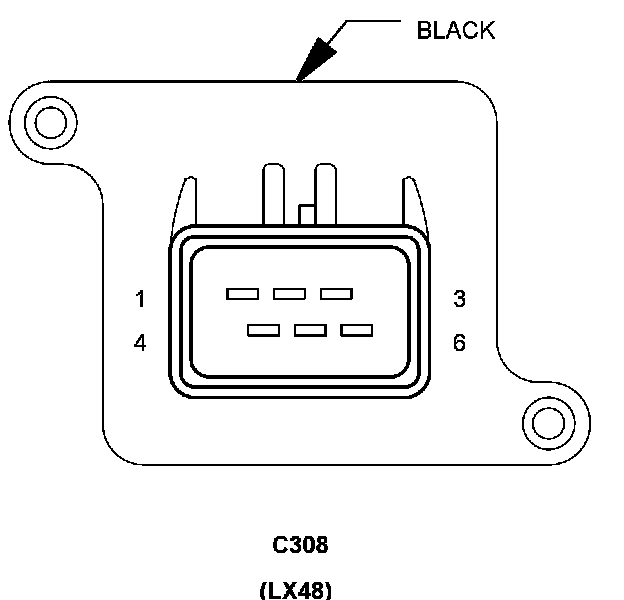

Connector:
Name : C308
Color : BLACK
# of pins : 6
Qualifier : (LX48)
Gender : MALE




Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
Pin Circuit Description
1 L777 18WT/VT PARK LAMP CONTROL OUTPUT
2 Z914 20BK/GY GROUND
3 L62 18WT/YL RIGHT REAR TURN SIGNAL CONTROL
4 L53 18DG/WT BRAKE LAMP RELAY OUTPUT
5 L1 20WT/LG BACKUP LAMP CONTROL OUTPUT
5 L1 18WT/LG BACKUP LAMP CONTROL OUTPUT
6 L90 18WT/OR REAR FOG LAMP RELAY OUTPUT

Component Location - 87




Component Location - 78
