C309

Component ID: 52
Component : C309

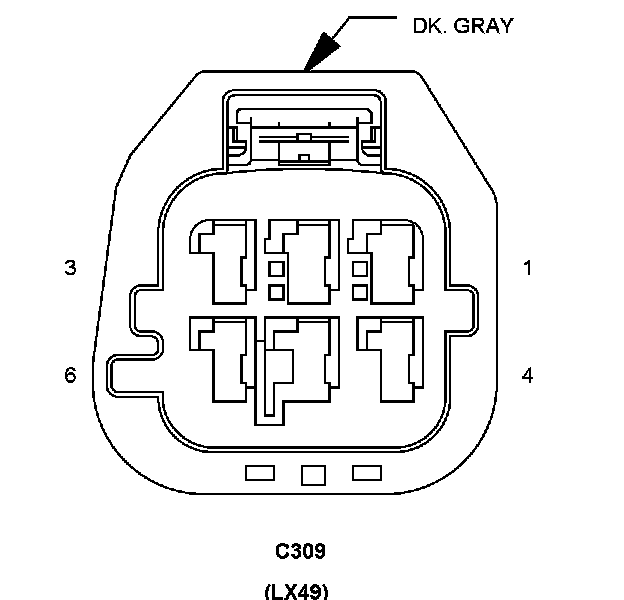

Connector:
Name : C309
Color : DK. GRAY
# of pins : 6
Qualifier : (LX49)
Gender : FEMALE




Pin Circuit Description
1 L777 20BR PARK LAMP CONTROL OUTPUT
2 Z914 20BK GROUND
3 L63 18RD/OR LEFT REAR TURN SIGNAL CONTROL
4 L53 20BR/VT BRAKE LAMP RELAY OUTPUT
5 L1 20VT/RD BACKUP LAMP CONTROL OUTPUT
6 - -

Component Location - 88




Component Location - 85




Component Location - 86






Connector:
Name : C309
Color : DK. GRAY
# of pins : 6
Qualifier : (LX49)
Gender : MALE




Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
2 Z914 20BK/BR GROUND
3 L63 18WT/DG LEFT REAR TURN SIGNAL CONTROL
4 L53 20DG/WT BRAKE LAMP RELAY OUTPUT
5 L1 20WT/LG BACKUP LAMP CONTROL OUTPUT
6 - -

Component Location - 88




Component Location - 85




Component Location - 86
