C314

Component ID: 56
Component : C314

Connector:

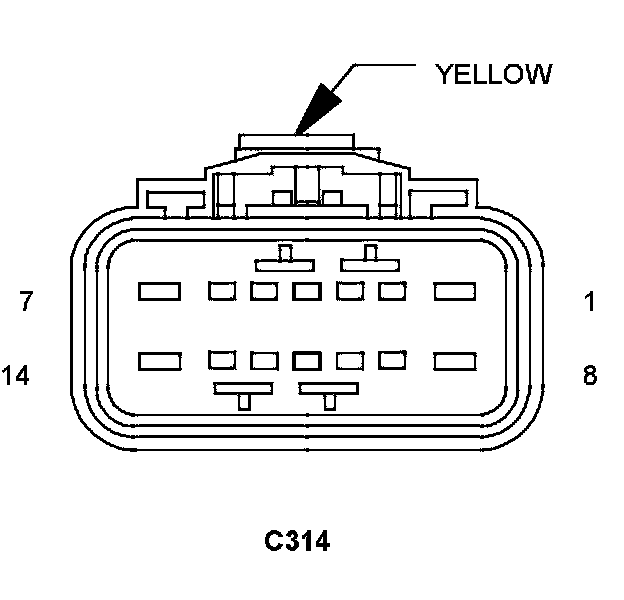

Name : C314
Color : YELLOW
# of pins : 14
Gender : FEMALE




Pin Circuit Description
1 A916 14RD FUSED B(+)
2 - -
3 - -
4 R6 20VT/LB RIGHT SEAT THORAX SQUIB 1 LINE 2
5 R8 20GY/LG RIGHT SEAT THORAX SQUIB 1 LINE 1
6 - -
7 - -
8 - -
9 - -
10 P188 20LG/VT RIGHT SEAT HEATER B(+) DRIVER
10 P187 20LG/BR LEFT SEAT HEATER B(+) DRIVER
11 - -
12 R504 20LB/YL PASSENGER SEAT BELT BUCKLE TENSIONER LINE 2
13 R506 20LB/DG PASSENGER SEAT BELT BUCKLE TENSIONER LINE 1
14 Z911 14BK/WT GROUND

Component Location - 55




Component Location - 51




Component Location - 52






Connector:
Name : C314
Color : YELLOW
# of pins : 14
Gender : MALE




Pin Circuit Description
1 A916 14RD FUSED B(+)
2 - -
3 - -
4 R6 20VT/LB RIGHT SEAT THORAX SQUIB 1 LINE 2
5 R8 20GY/LG RIGHT SEAT THORAX SQUIB 1 LINE 1
6 -
7 -
8 -
9 - -
10 P188 20LG/VT RIGHT SEAT HEATER B(+) DRIVER
10 P187 18LG/BR LEFT SEAT HEATER B(+) DRIVER
11 - -
12 R504 20LB/YL PASSENGER SEAT BELT BUCKLE TENSIONER LINE 2
13 R506 20LB/DG PASSENGER SEAT BELT BUCKLE TENSIONER LINE 1
14 Z911 14BK/WT GROUND

Component Location - 55




Component Location - 51




Component Location - 52
