C315

Component ID: 57

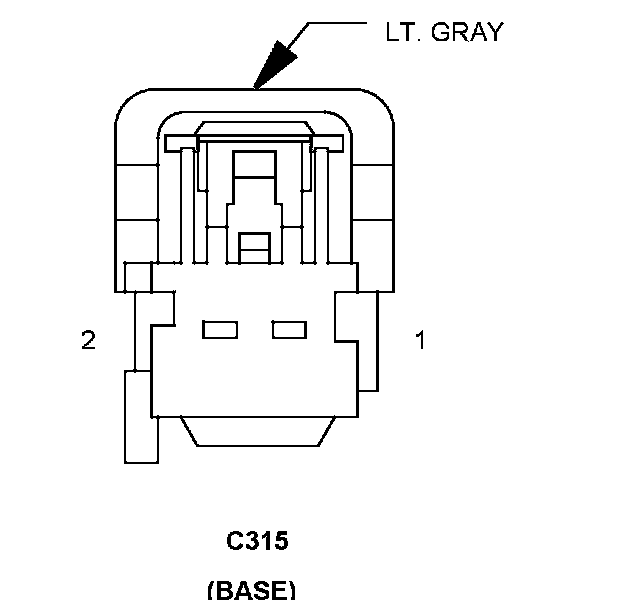

Component : C315

Connector:
Name : C315
Color : LT. GRAY
# of pins : 2
Qualifier : (BASE)
Gender : FEMALE




Pin Circuit Description
1 P41 18LG/GY DRIVER SEAT RECLINER DOWN DRIVER
2 P43 18LG/VT DRIVER SEAT RECLINER UP DRIVER



Connector:
Name : C315
Color : LT. GRAY
# of pins : 2
Qualifier : (BASE)
Gender : MALE




Pin Circuit Description
1 P41 16LG/GY DRIVER SEAT RECLINER DOWN DRIVER
2 P43 16LG/VT DRIVER SEAT RECLINER UP DRIVER

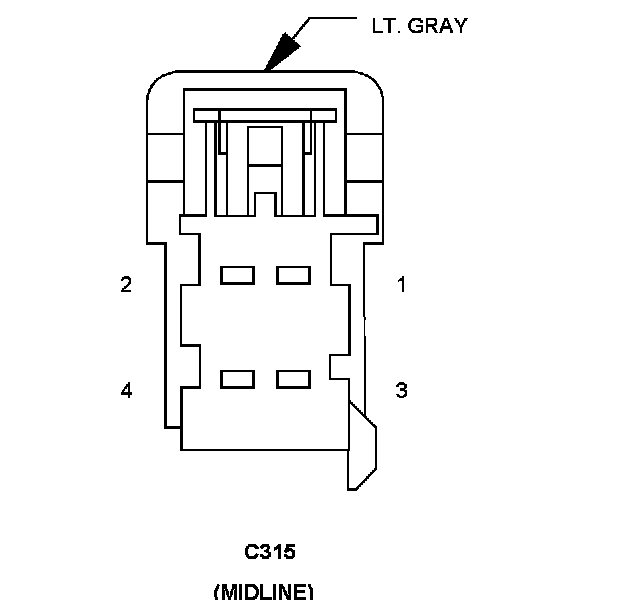

Connector:
Name : C315
Color : LT. GRAY
# of pins : 4
Qualifier : (MIDLINE)
Gender : FEMALE




Pin Circuit Description
1 P41 18LG/GY DRIVER SEAT RECLINER DOWN DRIVER
Pin Circuit Description
1 P141 18LG/BR DRIVER SEAT RECLINER UP DRIVER
2 P43 18LG/VT DRIVER SEAT RECLINER UP DRIVER
2 P143 18LG/GY DRIVER SEAT RECLINER DOWN DRIVER
3 P187 20LG/BR LEFT SEAT HEATER B(+) DRIVER
3 G493 20OR/VT DRIVER SEAT RECLINER POSITION SENSOR GROUND
4 Z912 20BK/OR GROUND
4 G403 20VT/OR DRIVER SEAT RECLINER POSITION SENSE



Connector:
Name : C315
Color : LT. GRAY
# of pins : 4
Qualifier : (MIDLINE)
Gender : MALE




Pin Circuit Description
1 P41 16LG/GY DRIVER SEAT RECLINER DOWN DRIVER
Pin Circuit Description
1 P141 18LG/BR DRIVER SEAT RECLINER UP DRIVER
2 P43 16LG/VT DRIVER SEAT RECLINER UP DRIVER
2 P143 18LG/GY DRIVER SEAT RECLINER DOWN DRIVER
3 P187 20LG/BR LEFT SEAT HEATER B(+) DRIVER
3 G493 20OR/VT DRIVER SEAT RECLINER POSITION SENSOR GROUND
4 Z912 20BK/OR GROUND
4 G403 20VT/OR DRIVER SEAT RECLINER POSITION SENSE



Connector:
Name : C315
Color : LT. GRAY

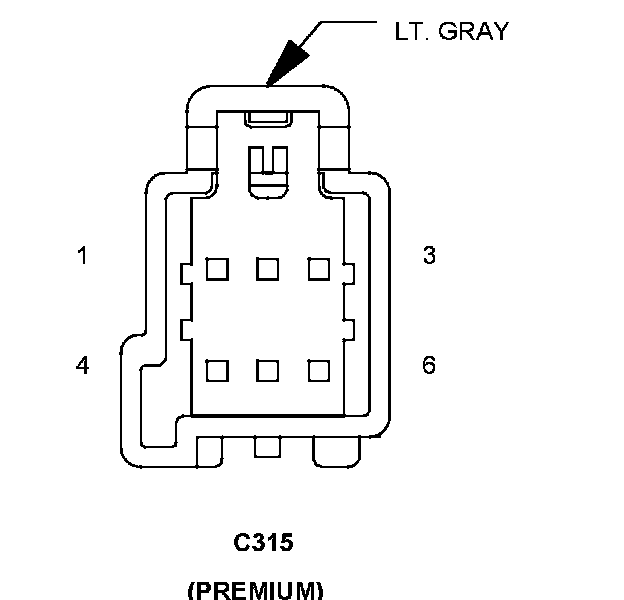

# of pins : 6
Qualifier : (PREMIUM)
Gender : FEMALE




Pin Circuit Description
1 P141 18LG/BR DRIVER SEAT RECLINER UP DRIVER
2 P143 18LG/GY DRIVER SEAT RECLINER DOWN DRIVER
3 G493 20OR/VT DRIVER SEAT RECLINER POSITION SENSOR GROUND
4 G403 20VT/OR DRIVER SEAT RECLINER POSITION SENSE
5 P187 20LG/BR LEFT SEAT HEATER B(+) DRIVER
5 P188 20LG/BR RIGHT SEAT HEATER B(+) DRIVER
6 Z912 20BK/OR GROUND



Connector:
Name : C315
Color : LT. GRAY
# of pins : 6
Qualifier : (PREMIUM)
Gender : MALE




Pin Circuit Description
1 P141 18LG/BR DRIVER SEAT RECLINER UP DRIVER
2 P143 18LG/GY DRIVER SEAT RECLINER DOWN DRIVER
3 G493 20OR/VT DRIVER SEAT RECLINER POSITION SENSOR GROUND
4 G403 20VT/OR DRIVER SEAT RECLINER POSITION SENSE
5 P187 20LG/BR LEFT SEAT HEATER B(+) DRIVER
5 P188 20LG/VT RIGHT SEAT HEATER B(+) DRIVER
6 Z912 20BK/OR GROUND
