C319

Component ID: 60
Component : C319

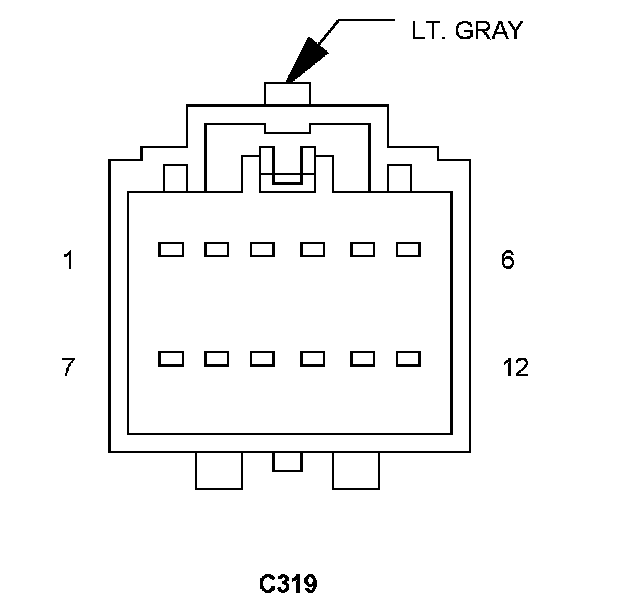

Connector:
Name : C319
Color : LT. GRAY
# of pins : 12
Gender : FEMALE




Pin Circuit Description
1 A305 16RD/LB FUSED B(+)
2 - -
3 P177 20LG/BK LEFT REAR SEAT HEATER B(+) DRIVER
4 - -
5 - -
6 A300 18RD/OR FUSED B(+) (I.O.D.)
6 A300 20RD/OR FUSED B(+) (I.O.D.)
7 - -
8 P178 20LG/GY RIGHT REAR SEAT HEATER B(+) DRIVER
9 E12 20OR/GY PANEL LAMPS DRIVER
10 Z911 16BK/WT GROUND
11 F98 20PK/LB REAR HEATED SEATS RELAY OUTPUT
12 Z909 20BK/LG GROUND

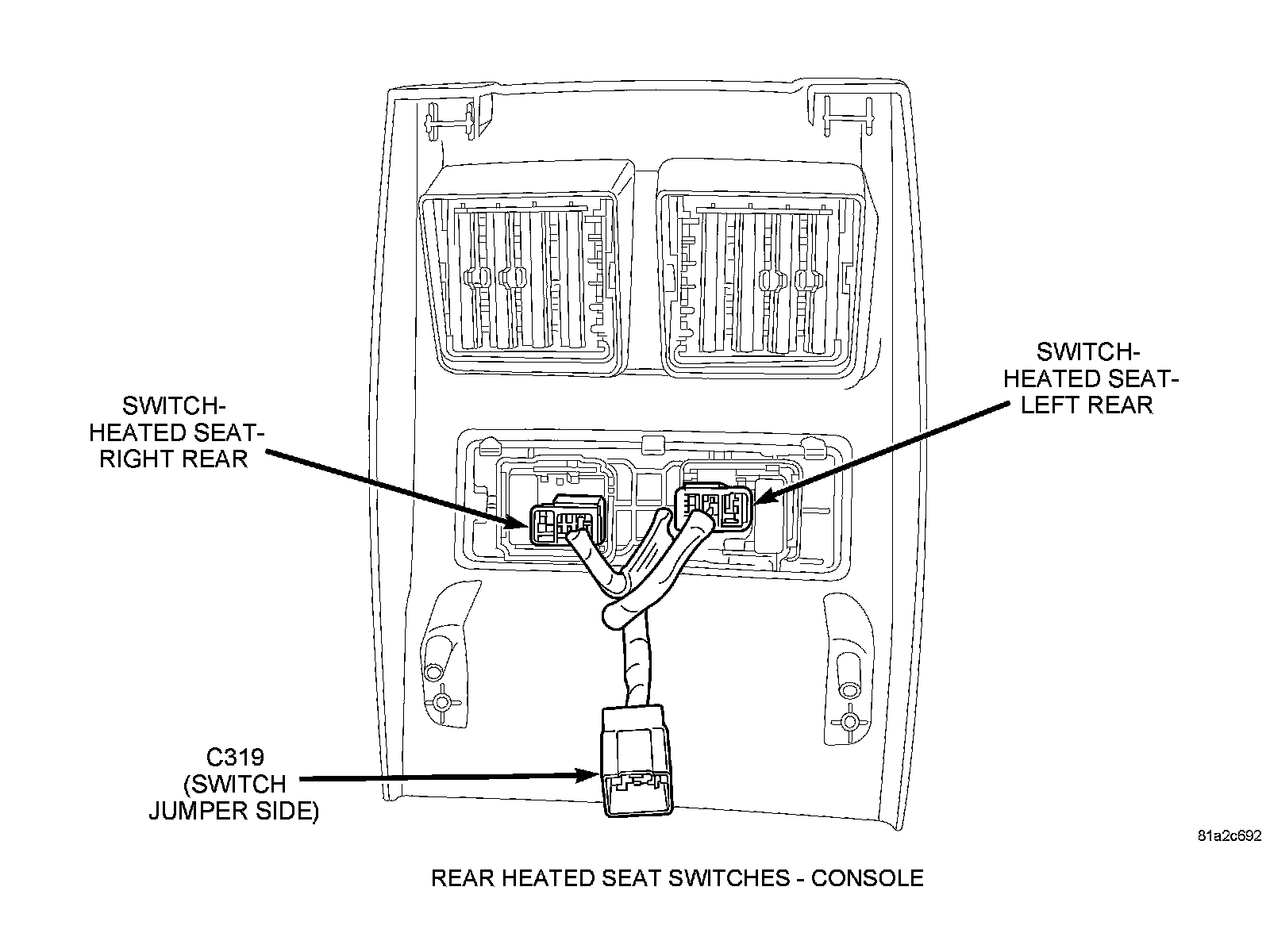

Component Location - 56




Component Location - 52






Connector:
Name : C319
Color : LT. GRAY
# of pins : 12
Gender : MALE




Pin Circuit Description
1 A305 16RD/LB FUSED B(+)
2 - -
3 P177 20LG/BK LEFT REAR SEAT HEATER B(+) DRIVER
4 - -
5 - -
6 A300 20RD/OR FUSED B(+) (I.O.D.)
7 - -
8 P178 20LG/GY RIGHT REAR SEAT HEATER B(+) DRIVER
9 E12 20OR/GY PANEL LAMPS DRIVER
10 Z911 16BK GROUND
11 F98 20PK/LB REAR HEATED SEATS RELAY OUTPUT
12 Z909 20BK GROUND

Component Location - 56




Component Location - 52
