C320

Component ID: 61
Component : C320

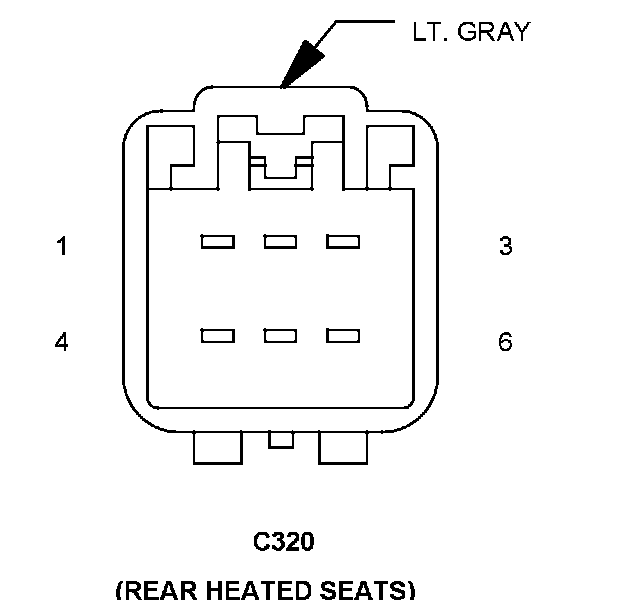

Connector:
Name : C320
Color : LT. GRAY
# of pins : 6
Qualifier : (REAR HEATED SEATS)
Gender : FEMALE




Pin Circuit Description
1 P178 20LG/GY RIGHT REAR SEAT HEATER B(+) DRIVER
2 - -
3 P177 20LG/BK LEFT REAR SEAT HEATER B(+) DRIVER
4 - -
5 Z911 20BK GROUND
5 Z911 20BK GROUND
6 - -

Component Location - 57




Component Location - 58




Component Location - 66

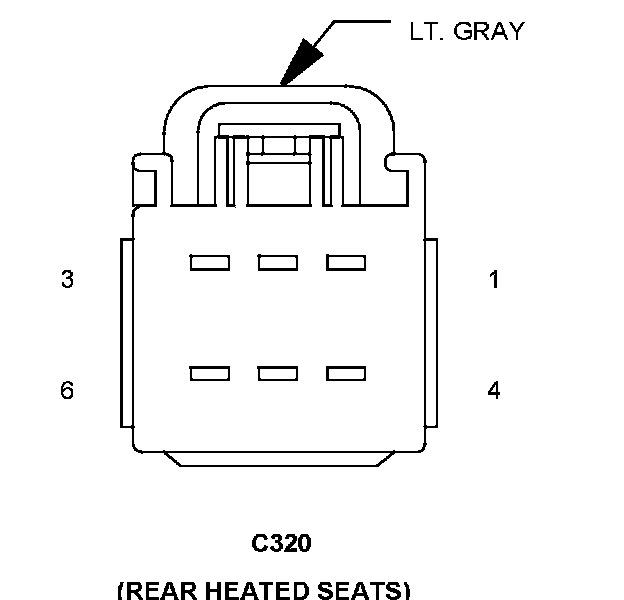

Connector:
Name : C320
Color : LT. GRAY
# of pins : 6
Qualifier : (REAR HEATED SEATS)
Gender : MALE




Pin Circuit Description
1 P178 20LG/GY RIGHT REAR SEAT HEATER B(+) DRIVER
2 - -
3 P177 20LG/BK LEFT REAR SEAT HEATER B(+) DRIVER
4 - -
5 Z911 20BK/WT GROUND
6 - -

Component Location - 57




Component Location - 58




Component Location - 66
