C322

Component ID: 63

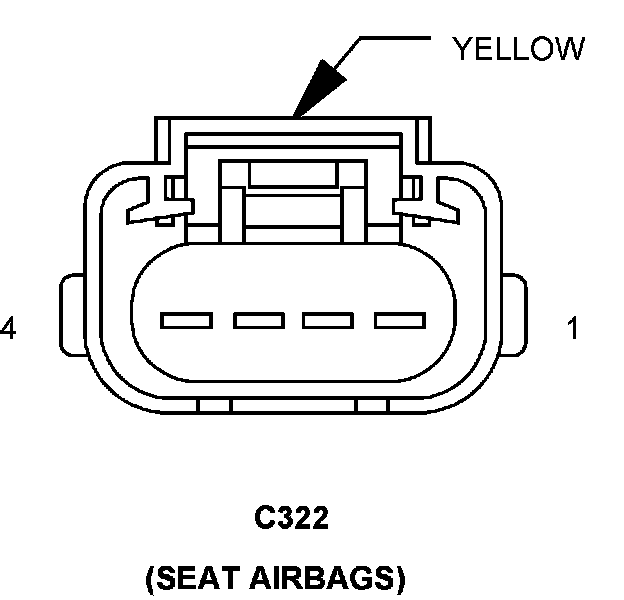

Component : C322

Connector:
Name : C322
Color : YELLOW
# of pins : 4
Qualifier : (SEAT AIRBAGS)
Gender : FEMALE




Pin Circuit Description
1 R5 20LB/VT LEFT SEAT THORAX SQUIB 1 LINE 2
2 R7 20LG/GY LEFT SEAT THORAX SQUIB 1 LINE 1
3 - -
4 - -

Component Location - 51






Connector:
Name : C322
Color : YELLOW
# of pins : 4
Qualifier : (SEAT AIRBAGS)
Gender : MALE




Pin Circuit Description
1 R5 20LB/VT LEFT SEAT THORAX SQUIB 1 LINE 2
2 R7 20LG/GY LEFT SEAT THORAX SQUIB 1 LINE 1
3 - -
4 - -

Component Location - 51
