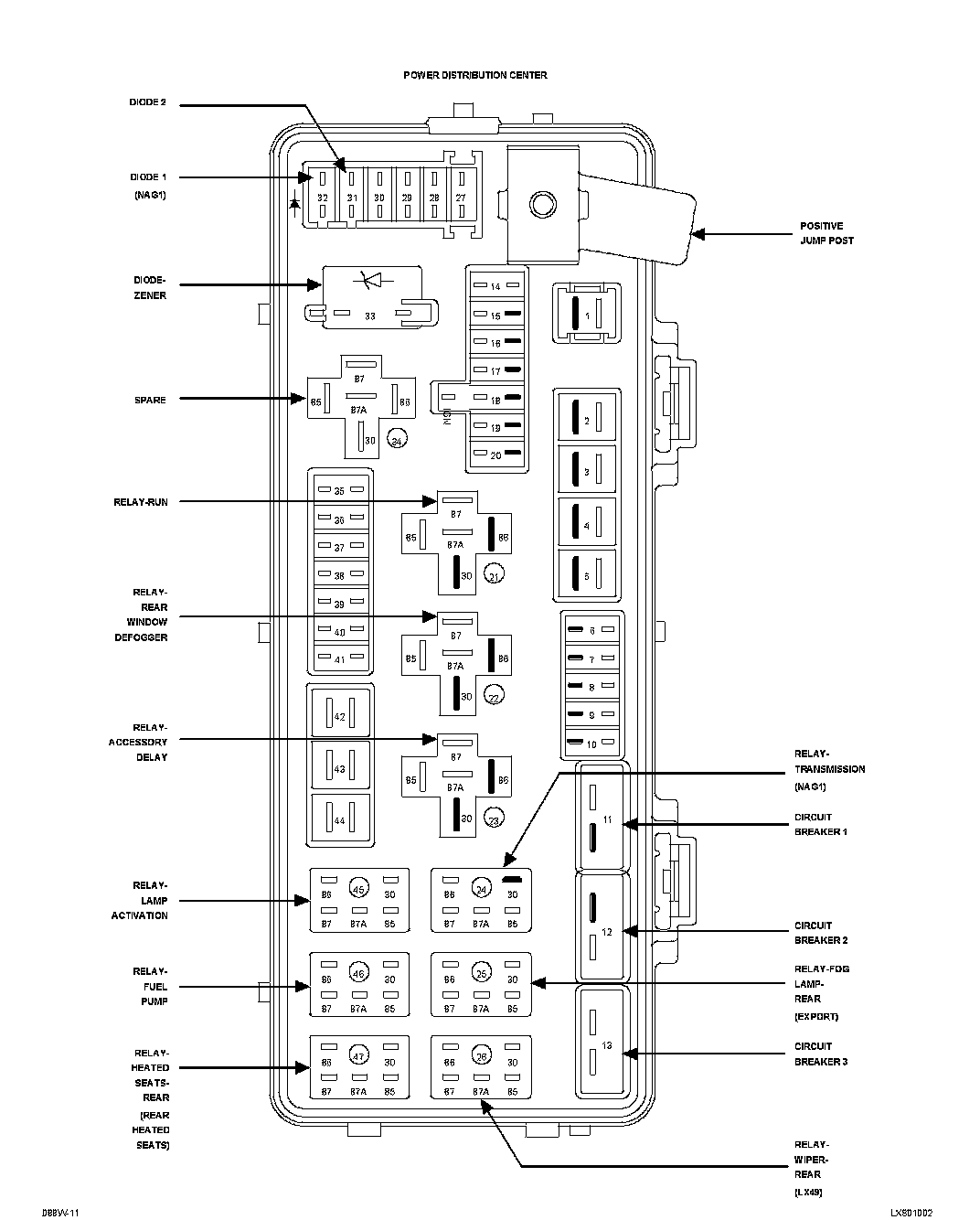

Circuit Breaker 3

Component ID: 70
Component : CIRCUIT BREAKER 3

Connector:
Name : CIRCUIT BREAKERS
Color :
# of pins : 0




Pin Circuit Description
1 A110 14OR/RD FUSED B(+)
Pin Circuit Description
1 A110 16OR/RD FUSED B(+)
2 A916 14RD FUSED B(+)
3 F881 14PK FUSED ACCESSORY DELAY RELAY OUTPUT
