Compressor Clutch

Component ID: 72
Component : CLUTCH-A/C COMPRESSOR

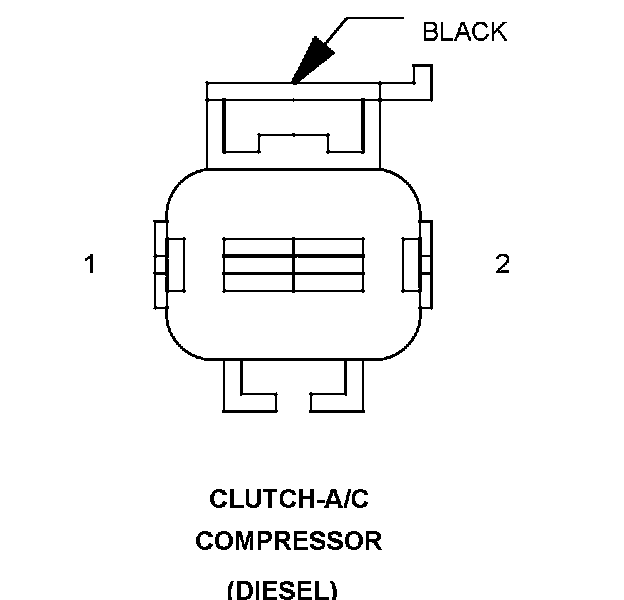

Connector:
Name : CLUTCH-A/C COMPRESSOR
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 C3 18BL/DG A/C CLUTCH CONTROL OUTPUT
2 Z925 18BR GROUND

Component Location - 17




Component Location - 25




Component Location - 28

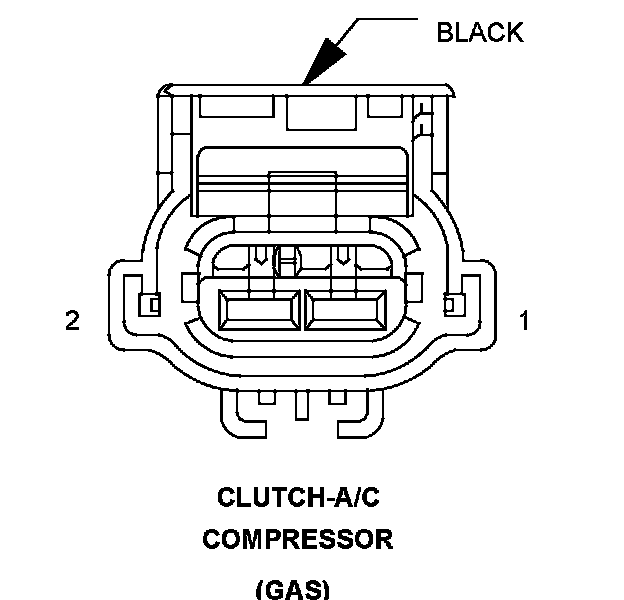

Connector:
Name : CLUTCH-A/C COMPRESSOR
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 C3 18DB/YL A/C CLUTCH CONTROL OUTPUT
2 Z904 18BK/BR GROUND

Component Location - 17




Component Location - 25




Component Location - 28
