Glove Box Lamp

Component ID: 191

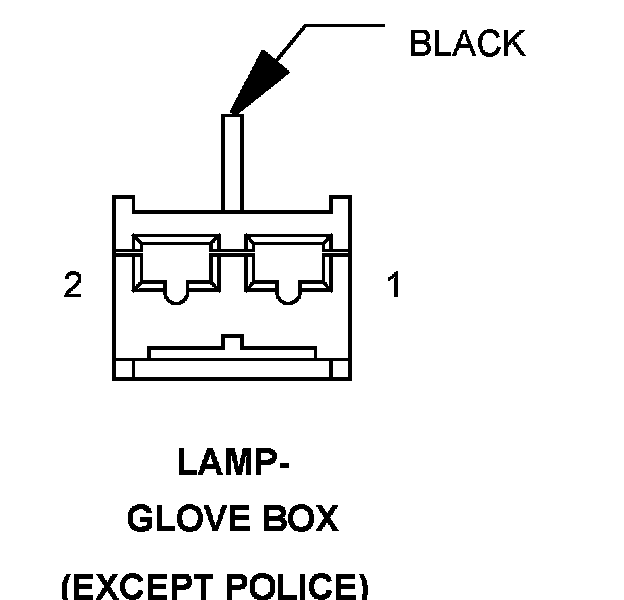

Component : LAMP-GLOVE BOX

Connector:
Name : LAMP-GLOVE BOX
Color : BLACK
# of pins : 2
Qualifier : (EXCEPT POLICE)




Pin Circuit Description
1 Z909 20BK/LG GROUND
2 M27 20YL/LB READING/RAIL LAMPS DRIVER

Component Location - 36




Component Location - 37




Component Location - 48
