Lamp-Fog-Right Front

Component ID: 185
Component : LAMP-FOG-RIGHT FRONT

Connector:
Name : LAMP-FOG-RIGHT FRONT
Color : BLACK
# of pins : 2




A L89 20WT/YL FRONT FOG LAMP CONTROL OUTPUT
A L89 18WT/YL FRONT FOG LAMP CONTROL OUTPUT
B Z901 20BK/TN GROUND
B Z901 18BK/DG GROUND

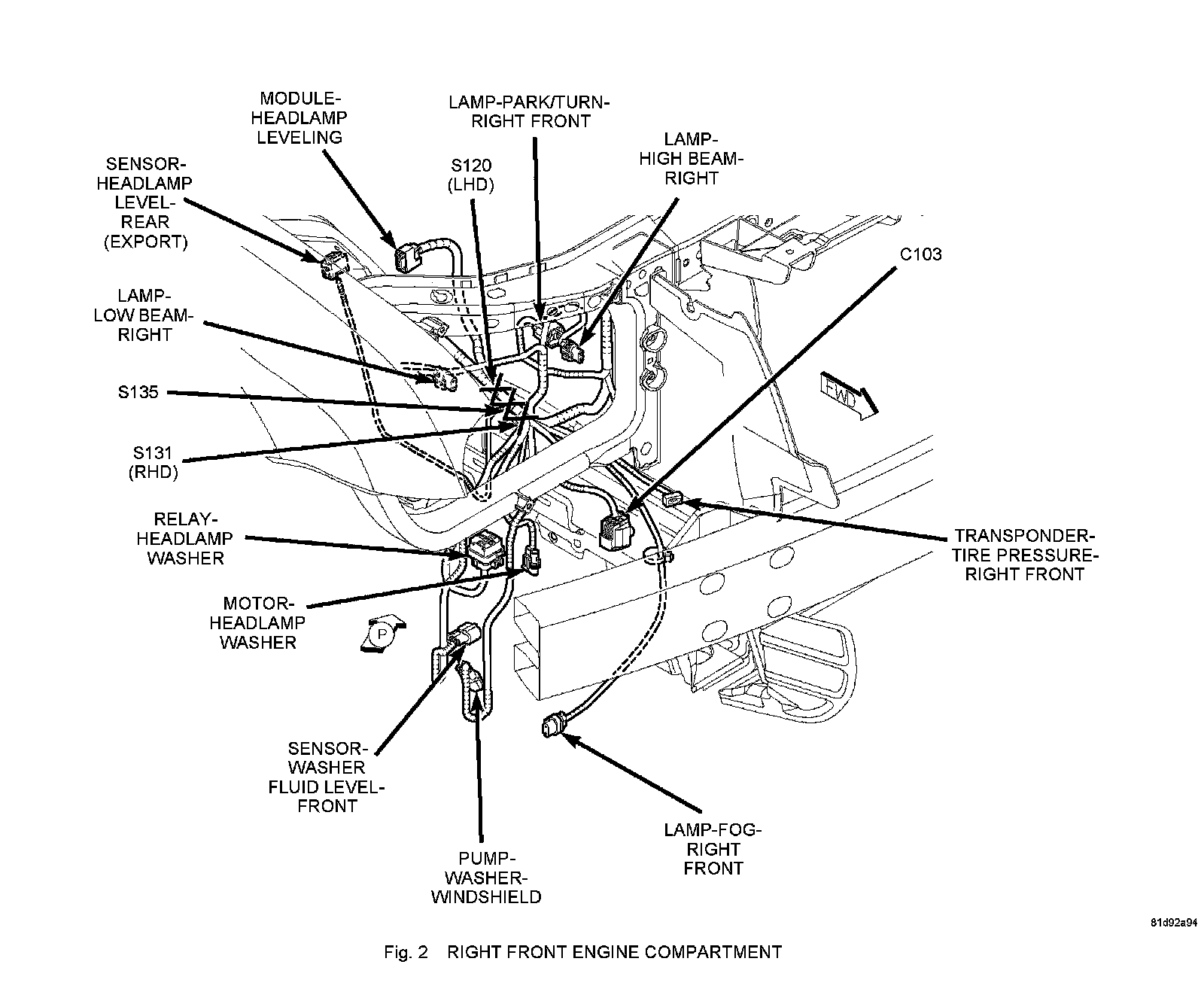

Component Location - 2
