Injector-Fuel 4

Component ID: 168
Component : INJECTOR-FUEL 4

Connector:
Name : INJECTOR-FUEL 4
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 K614 16BK/YL INJECTOR 4 LOW-SIDE CONTROL
2 K14 16BL/YL INJECTOR 4 HIGH-SIDE CONTROL

Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 30

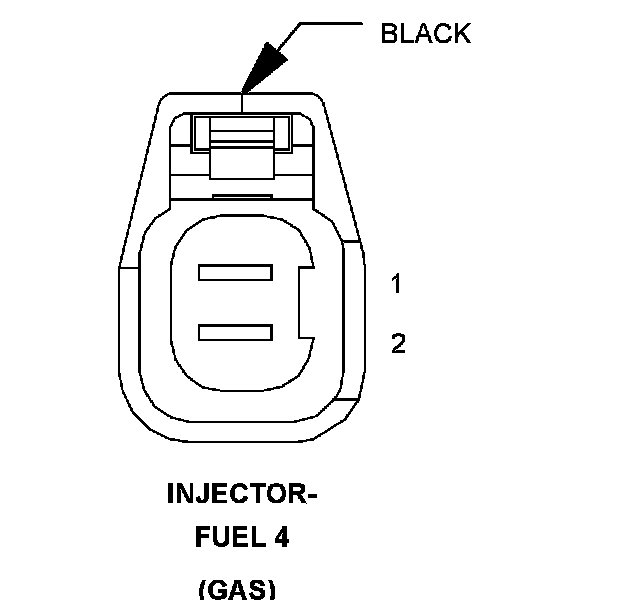

Connector:
Name : INJECTOR-FUEL 4
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K14 20BR/TN INJECTOR 4 CONTROL
2 F343 16BR/YL FUSED ASD RELAY OUTPUT

Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 30
