Injector-Fuel 6

Component ID: 170
Component : INJECTOR-FUEL 6

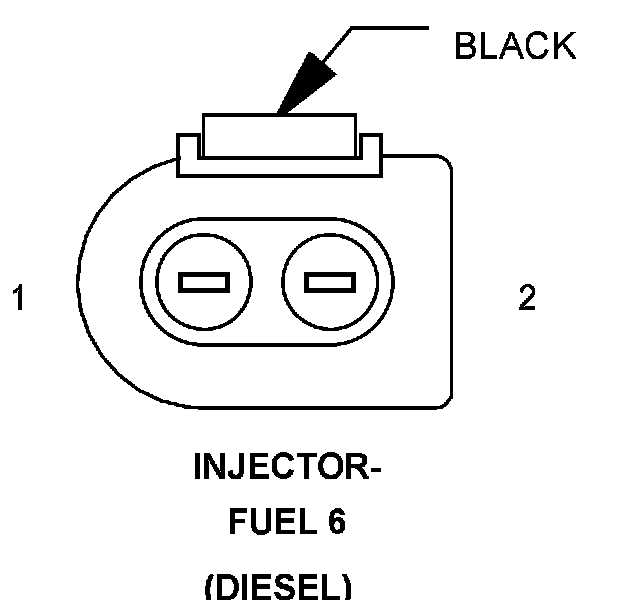

Connector:
Name : INJECTOR-FUEL 6
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 K658 16BK/WT INJECTOR 6 LOW-SIDE CONTROL
2 K58 16BL/WT INJECTOR 6 HIGH-SIDE CONTROL

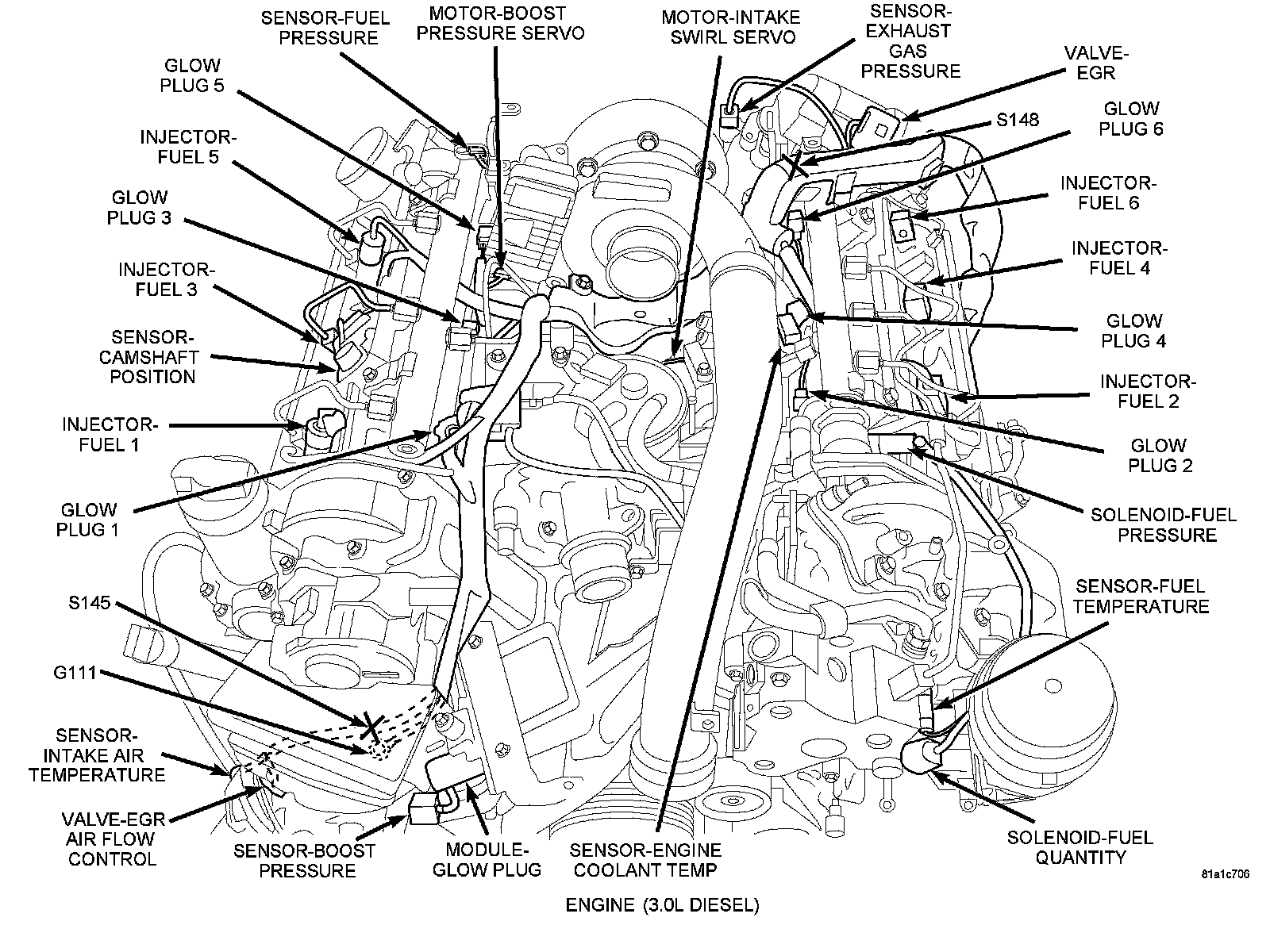

Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 30

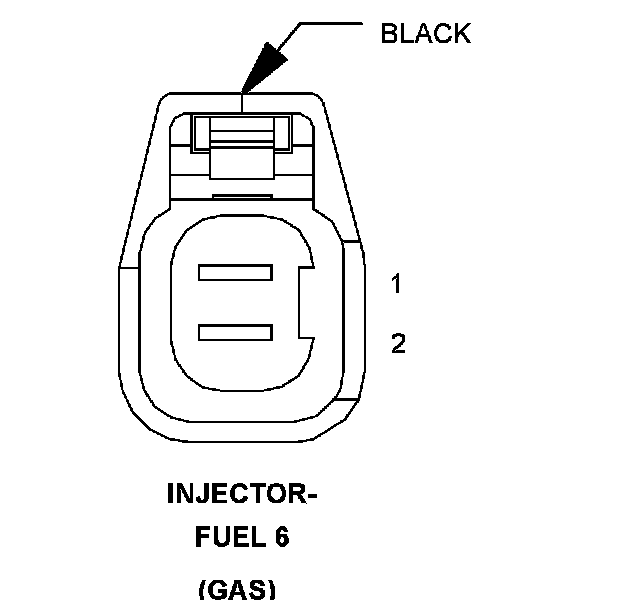

Connector:
Name : INJECTOR-FUEL 6
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K58 20BR/VT INJECTOR 6 CONTROL
2 F343 16BR/YL FUSED ASD RELAY OUTPUT

Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 30
