Capacitor-Ignition 1

Component ID: 66
Component : CAPACITOR-IGNITION 1

Connector:
Name : CAPACITOR-IGNITION 1
Color : BLACK
# of pins : 1
Qualifier : (2.7L/3.5L)




Pin Circuit Description
1 F343 16BR/YL FUSED ASD RELAY OUTPUT

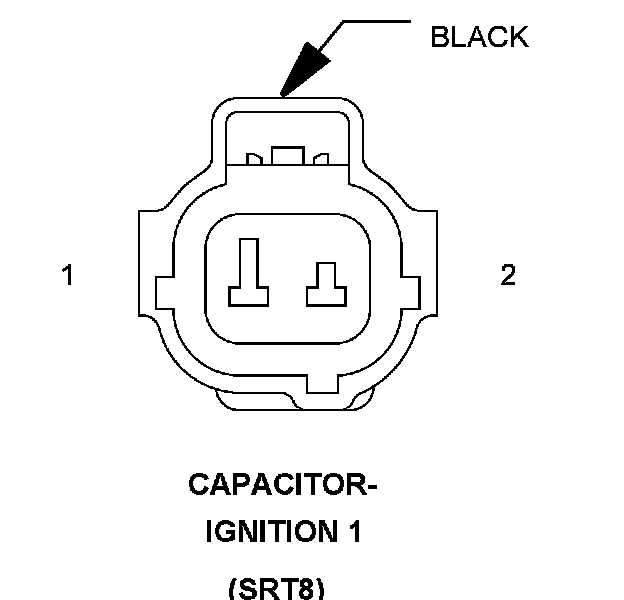

Connector:
Name : CAPACITOR-IGNITION 1
Color : BLACK
# of pins : 2
Qualifier : (SRT8)




Pin Circuit Description
1 F343 16BR/YL FUSED ASD RELAY OUTPUT
2 - -
