Coil-Ignition 2

Component ID: 74
Component : COIL-IGNITION 2

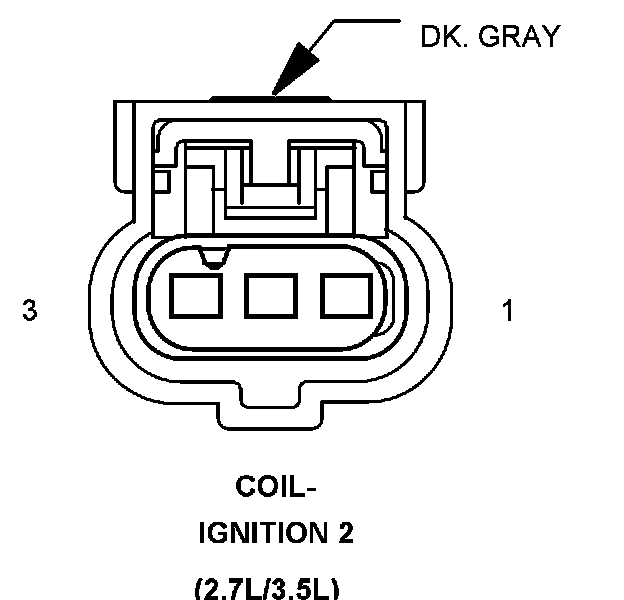

Connector:
Name : COIL-IGNITION 2
Color : DK. GRAY
# of pins : 3
Qualifier : (2.7L/3.5L)




Pin Circuit Description
1 - -
2 K17 18DB/TN COIL 2 CONTROL
3 F343 18BR/YL FUSED ASD RELAY OUTPUT

Component Location - 17




Component Location - 21




Component Location - 24




Component Location - 27






Connector:
Name : COIL-IGNITION 2
Color : BLACK
# of pins : 3
Qualifier : (5.7L/SRT8)




Pin Circuit Description
1 K17 16DB/TN COIL 2 CONTROL
2 F343 16BR/YL FUSED ASD RELAY OUTPUT
3 - -

Component Location - 17




Component Location - 21




Component Location - 24




Component Location - 27
