Lamp-License-Right

Component ID: 200

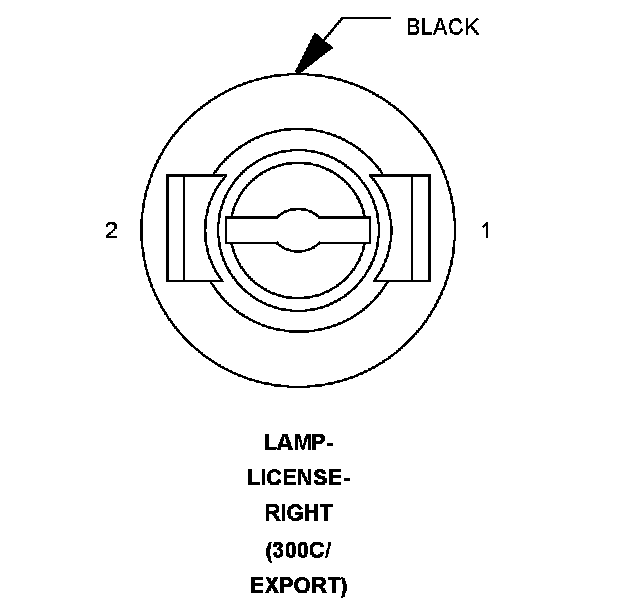

Component : LAMP-LICENSE-RIGHT

Connector:
Name : LAMP-LICENSE-RIGHT
Color : BLACK
# of pins : 2
Qualifier : (300C/EXPORT)




Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
2 Z914 20BK/BR GROUND

Component Location - 88
